DAMPING ON FOX FORKS

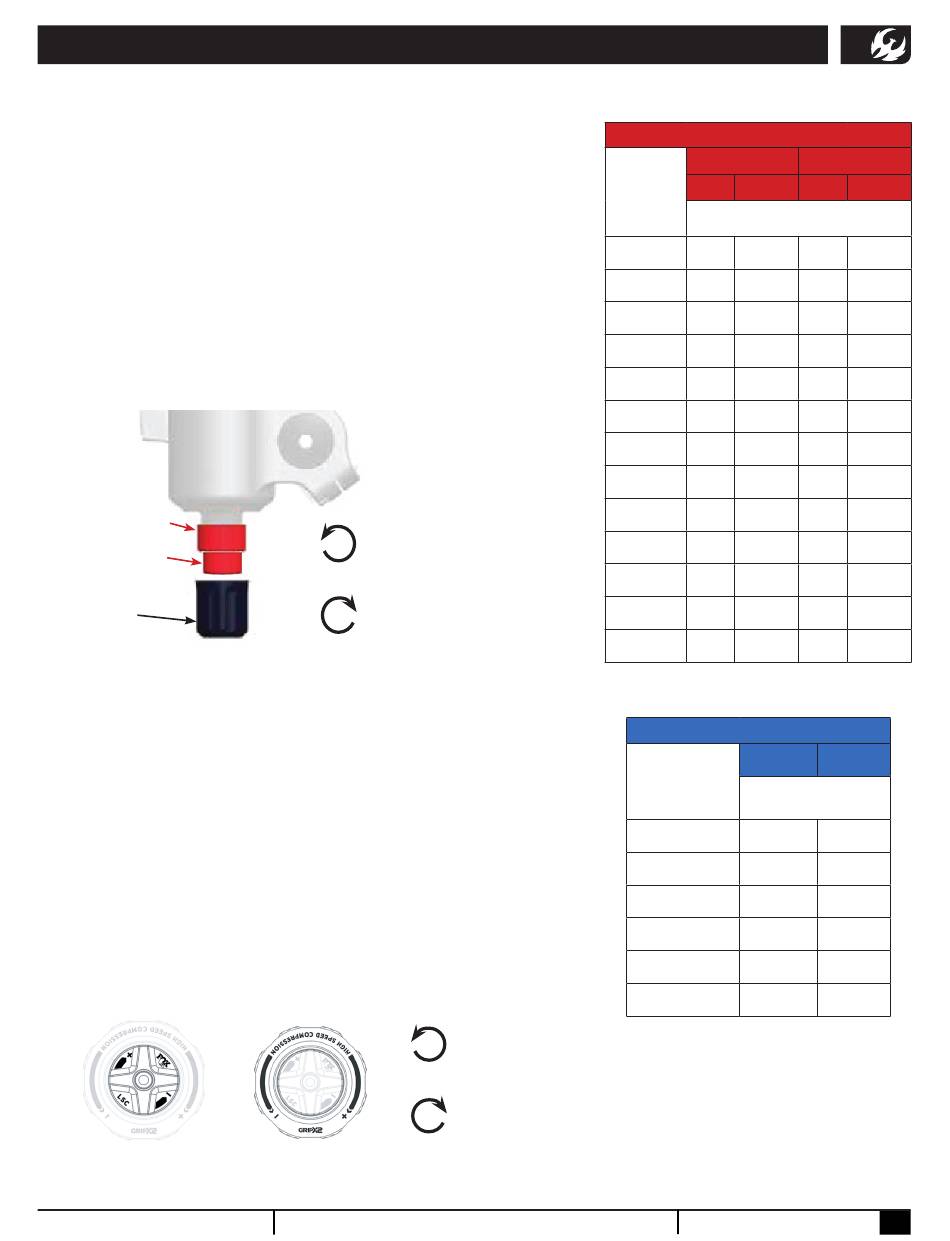

Rebound Damping
Rebound setting is dependent on air pressure. For example,
higher air pressures require slower rebound setting.
The Grip X2 dampers have both low speed (LSR) and high
speed (HSR) rebound damping. Both
the bottom of the drive side fork leg under a protective cover.
We set rebound from the open or fastest position. Refer to the
table for the suggested rebound setting. The bold numbers in
the chart refer to how many clicks clockwise from the open
setting the rebound should be set. Fox sets rebound from the
closed position, so that has been provided in parentheses.
High Speed Rebound
Low Speed Rebound
Protective
Cover
Compression Damping
The Grip X2 damper has adjusters for both low speed (LSC)
and high speed (HSC) compression damping on the top of the
right fork leg.
The outer dial adjusts high speed compression damping and
the inner dial adjusts low speed compression damping.
We set compression from the open position. Start by turning
both compression dials counter-clockwise all the way out.
Refer to bold numbers on the table to the right as a starting
point for your settings. Fox set compression from the closed
position, so that has been provided in parentheses.
GRIP X2 Low Speed
Compression
pivotcycles.com
red knobs are located on
Rotate counter-clockwise for faster
extension after compression
Rotate clockwise for slower
extension after compression
GRIP X2 High Speed
Compression
info@pivotcycles.com
Fork
Air Pressure
<72 psi
<5.0 bar
72-76 psi
5.0-5.2 bar
76-80 psi
5.2-5.5 bar
80-84 psi
5.5-5.8 bar
84-89 psi
5.8-6.1 bar
89-93 psi
6.1-6.4 bar
93-97 psi
6.4-6.7 bar
97-100 psi
6.7-6.9 bar
100-104 psi
6.9-7.2 bar
104-107 psi
7.2-7.4 bar
107-110 psi
7.4-7.6 bar
110-114 psi
7.6-7.9 bar
114-118 psi
7.9-8.1 bar
Rotate counter-
clockwise to open
compression (lighter)
Rotate clockwise
to close or increase
compression (firmer)
1.877.857.4868
Suggested Rebound Settings
Podium Fork Fox 38 Fork
LSR HSR LSR
Clicks from OPEN
(Clicks from CLOSED)
3 (13) Open (8) 6 (10)
4 (12) 1 (7) 7 (9)
6 (10) 2 (6) 8 (8)
7 (9) 2 (6) 8 (8)
8 (8) 3 (5) 9 (7)
9 (7) 3 (5) 9 (7)
10 (6) 4 (4) 11 (5)
11 (5) 5 (3) 12 (4)
11 (5) 5 (3) 12 (4)
12 (4) 6 (2) 13 (3)
13 (3) 7 (1) 14 (2)
14 (2) 7 (1) 14 (2)
15 (1) 8 (0) 15 (1)
Suggested Compression Settings
LSC
Fork
Clicks from OPEN
Air Pressure
(Clicks from CLOSED)
<120 [lbs]
3 (13)
<54 [kg]
120-150 [lbs]
4 (12)
54-68 [kg]
150-180 [lbs]
5 (11)
68-81 [kg]
180-210 [lbs]
6 (10)
81-95 [kg]
210-240 [lbs]
7 (9)
95-109 [kg]
>240 [lbs]
8 (8)
>109 [kg]
HSR
Open (8)
1 (7)
2 (6)
2 (6)
3 (5)
3 (5)
4 (4)
5 (3)
5 (3)
6 (2)
7 (1)
7 (1)
8 (0)
HSC
1 (7)
2 (6)
3 (5)
4 (4)
5 (3)
6 (2)
