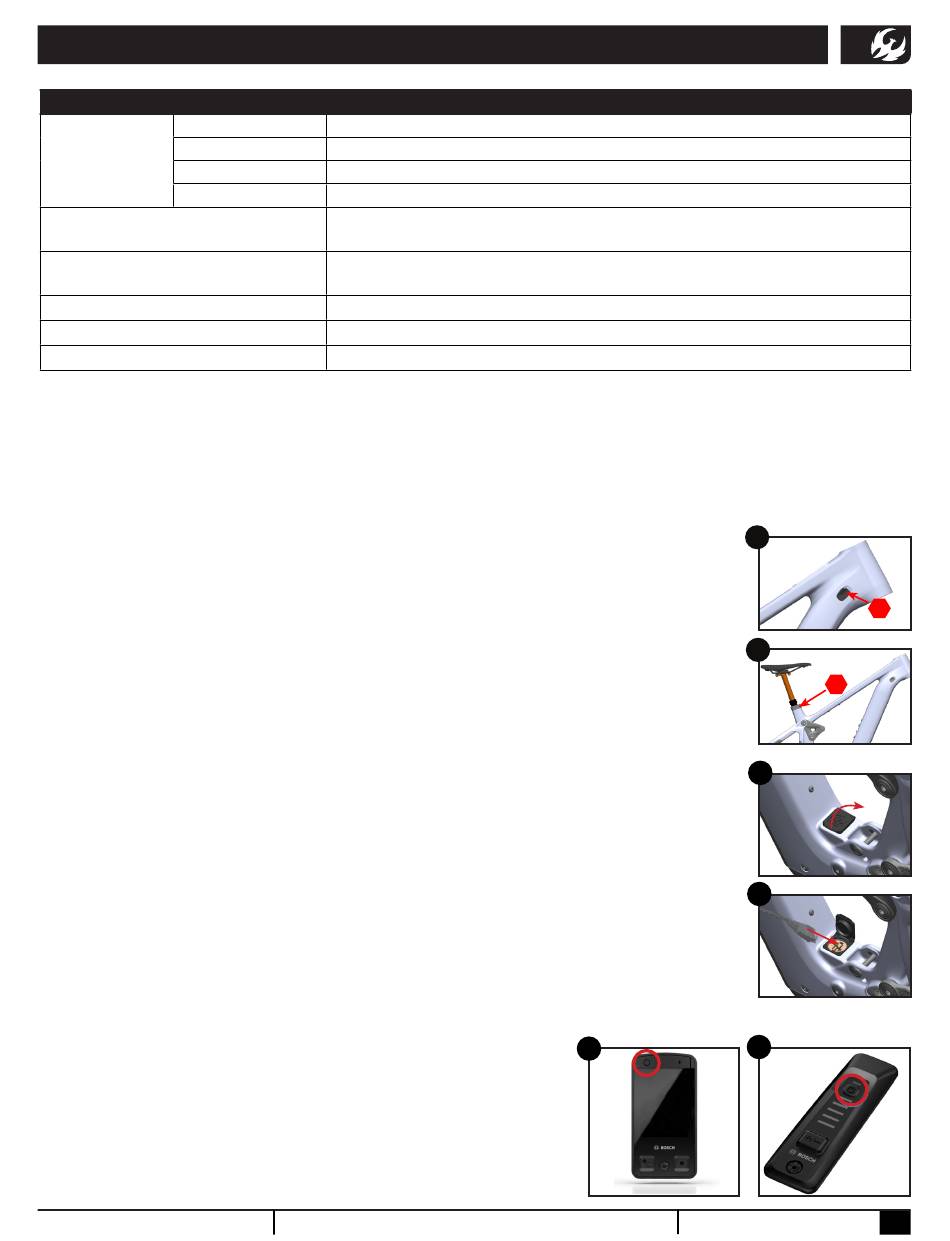

QUICK START GUIDE

Body Weight in [lbs] to [psi]
Shock Air Pressure
Body Weight in [kg] to [psi]
(By Body Weight)
Always Check
Body Weight in [kg] to [bar]
Sag see page 3 !
Body Weight in [lbs] to [bar]
Shock Compression Damping
Shock Rebound Damping
Fork Air Pressure
Fork Compression Damping
Fork Rebound Damping

Recommended Tire Pressure

Front: 23 psi (1.58 bar) Rear: 28 psi (1.93 bar)
• Tire pressure is an important factor on having the bike ride properly. If the tire pressure is too high, the
tire will not conform to ground, reducing traction. If the tire pressure is too low, the tire could pinch flat.
• It is important to have an accurate pressure gauge when setting tire pressure.

Adjusting Saddle Height

1. Use a 2mm hex wrench, loosen the drive side cable port cap securing the dropper
post housing. (fig. 1)
2. Using a 4mm hex wrench, loosen the seat post clamp bolt (fig. 2) and raise/lower
the saddle to the preferred height. The bolt is under the adjustable seat tube angle
cover, but can be accessed through the hole in the cover. (fig. 2)
3. Using a 4mm hex wrench, tighten the seat post clamp bolt to 5 Nm.
4. Tighten the cable port cap screw with a 2mm hex wrench to secure the dropper
post housing.

Charging the Battery

NOTE: The battery does not come fully charged and must be charged
completely before the first use.
1. Locate the charging port in front of the lower shock mount. (fig. 3)
2. Open the sealing cover to access the charging terminal. (fig. 3)
3. Insert the charging cable into the charging terminal, ensuring the cable and
terminal are properly aligned. (fig. 4)
4. When done charging, remove the cable from the terminal and close the sealing
cover.
*The battery is removable and can be charged off the bike. See page 10.

Powering the System ON and OFF

1. The power button is located in the upper left of the Kiox 400C
(fig. 5) or the top of the System Controller. (fig. 6)
2. Power the system on or off with a quick press and release on
the power symbol.
3. If the bike has not moved for 10 minutes, the power will shut
off automatically.
pivotcycles.com
QUICK START SUSPENSION SETTINGS
Float X: Body Weight [lbs] + 40 [psi] | Float X2: Body Weight [lbs] + 50 [psi]
Float X: 2.2 × Body Weight [kg] + 40 [psi] | Float X2: 2.2 × Body Weight [kg] + 50 [psi]
Float X: 0.15 × Body Weight [kg] + 2.8 [bar] | Float X2: 0.15 × Body Weight [kg] + 3.4 [bar]
Float X: 0.07 × Body Weight [lbs] + 2.8 [bar] | Float X2: 0.07 × Body Weight [lbs] + 3.4 [bar]
Float X: 8 clicks in from OPEN
Float X2: LSC: 6 clicks in from OPEN | HSC: 2 clicks in from OPEN
Float X: 8 clicks in from OPEN
Float X2: LSR: 8 clicks in from OPEN | HSR: 4 clicks in from OPEN
Fox 38: 80 [psi] / 5.52 [bar] | Fox Podium: 72 [psi] / 5.0 [bar]
Fox 38 & Fox Podium: HSC: 3 clicks in from OPEN | LSC: 5 clicks in from OPEN
Fox 38 & Fox Podium: HSR: 3 clicks in from OPEN | LSR: 9 clicks in from OPEN
