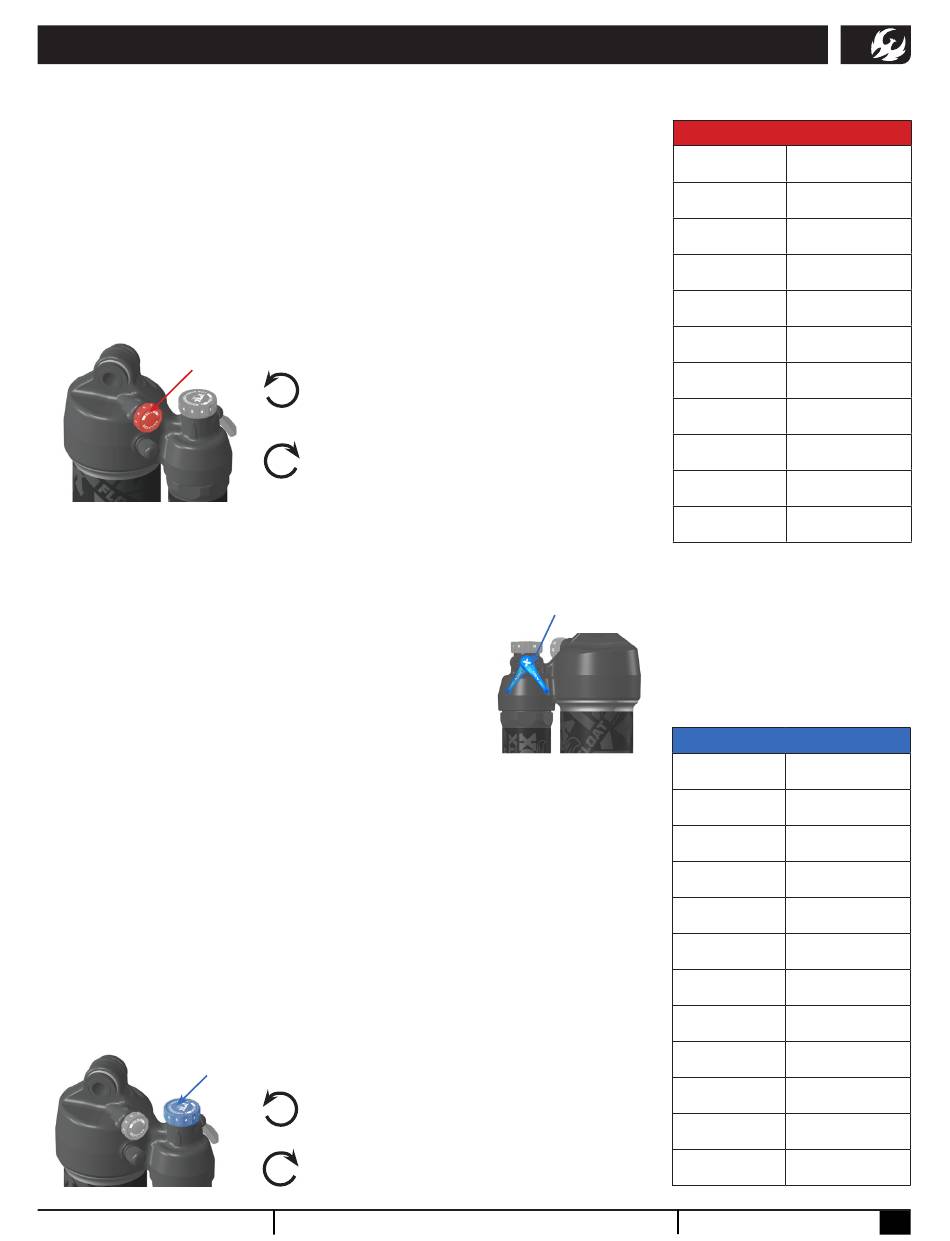

DAMPING ON FOX FLOAT X
Rebound Damping
Setting rebound is dependent on air pressure. For example, higher air
pressures require a slower rebound setting.
We set rebound from the most open or fastest position, so start by
turning the red rebound adjuster counter-clockwise all the way open.
Refer to the table on the right for the suggested rebound setting based
on the air pressure you have in your shock to achieve the correct sag.
The bold numbers in the chart refer to how many clicks clockwise
from the open setting. Fox suspension set up guides always count
clicks from the closed position, which is listed in parentheses.
Rebound Adjuster
Compression Damping
2-Position Lever
Some Float X shocks feature a two position
lever that allows for on-the-fly adjustment
between fully open and firm for climbing. For
most riding conditions it is best to have the
lever open. As with the other shocks, the firm
setting is best suited for long fire road climbs
and smooth XC courses.
Low Speed Compression Adjuster
The Factory Series Float X features a
adjustment knob, which can be used to fine tune the open mode of
the compression damping. This knob offers 10 additional fine tune
adjustment settings to the open mode.
Turning the knob clockwise will increase low speed compression
damping. Turning the knob counter-clockwise will decrease low
speed compression damping. You can experiment with all of these
options to find the setting that provides the best compression
support and plushest feel for your weight and riding style. Refer to
the table on the right for suggested starting settings.
Low Speed Compression Adjuster
pivotcycles.com
Rotate counter-clockwise for faster
extension after compression
Rotate clockwise for slower extension after
compression
blue low speed compression
Rotate counter-clockwise to open
compression (lighter)
Rotate clockwise to close or increase
compression (firmer)
info@pivotcycles.com
2 Position Lever
FIRM
OPEN
1.877.857.4868
Suggested Rebound Setting Float X
Clicks from OPEN
Shock Air Pressure
(Clicks from CLOSED)
<120 psi
3 (9)
<8.3bar
120-140 psi
3 (8)
8.3-9.7 bar
140-160 psi
5 (7)
9.7-11 bar
160-180 psi
6 (6)
11-12.4 bar
180-200 psi
7 (5)
12.4-13.8 bar
200-220 psi
8 (4)
13.8-15.2 bar
220-240 psi
9 (3)
15.2-16.5 bar
240-260 psi
10 (2)
16.5-17.9 bar
260-280 psi
11 (1)
17.9-19.3 bar
280-300 psi
CLOSED
19.3-20.7 bar
Suggested Compression Setting Float X
Clicks from OPEN
Rider Weight
(Clicks from CLOSED)
<120 [lbs]
OPEN
<54 [kg]
140-150 [lbs]
1 (9)
63-68 [kg]
150-160 [lbs]
2 (8)
68-72 [kg]
160-170 [lbs]
3 (7)
72-77 [kg]
170-180 [lbs]
4 (6)
77-81 [kg]
180-190 [lbs]
5 (5)
81-86 [kg]
190-200 [lbs]
6 (4)
86-90 [kg]r
200-210 [lbs]
7 (3)
90-95 [kg]
210-220 [lbs]
8 (2)
95-100 [kg]
220-230 [lbs]
9 (1)
100-104 [kg]
>230 [lbs]
CLOSED
>104 [kg]
5
