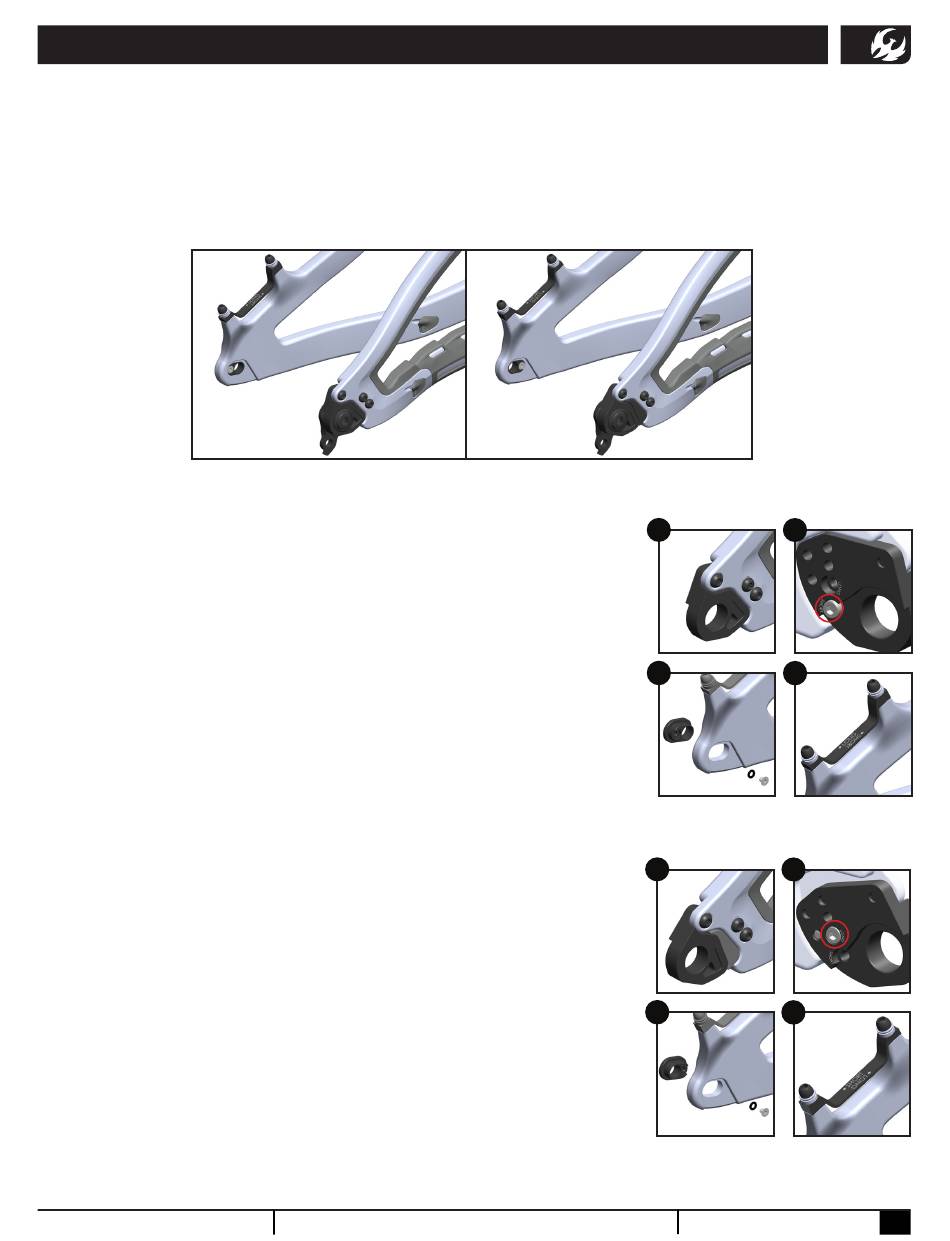

SWINGER DROPOUT ADJUSTMENT

The Shuttle LT's swinger dropout chainstay adjustment gives you 8mm of adjustment between the short
and long positions. We used our swinger dropout patent to make this adjustment compatible with all
drivetrains in both settings. This is such a significant change in geometry you will need to go through
setting up your drivetrain between positions and in many cases need a different length chain.
The process to change between the settings requires adjusting the dropouts, brake bracket, and setting
up your drivetrain for the new chainstay length.
SHORT

Setting up the Shuttle LT's dropout in the SHORT position:

1. Mount the drive side dropout in the forward position. (fig. 1)
2. Apply Loctite 243 or equivalent to the threads and torque the three
bolts to 8Nm.
3. Install the UDH stopper bolt in the short position and torque to
5Nm. (fig. 2)
4. Mount the non-drive side dropout in the frame. (fig. 3)
5. Install o-ring and bolt to snug.
6. Orient the brake bracket with the arrow for "Short" pointing to the
front of the bike. (fig. 4) Realign your caliper and rotor.
7. Refer to the drivetrain manufacturer's specification for proper setup.
SRAM T-Type Setup Key: A Setup cog: 6 (24t) Chain Length: 118.

Setting up the Shuttle LT's dropout in the LONG position:

1. Install the gap filler for the swinger dropout and the frame. (fig. 5)
2. Mount the drive side dropout in the rear position. (fig. 5)
3. Apply Loctite 243 or equivalent to the threads and torque the three
bolts to 8Nm.
4. Install the UDH stopper bolt in the long position and torque to 5Nm.
(fig. 6)
5. Mount the non-drive side dropout in the frame.
6. Install o-ring and bolt to snug. (fig. 7)
7. Orient the brake bracket with the arrow for "Long" pointing to the
front of the bike. (fig. 8) Realign your caliper and rotor.
8. Refer to the drivetrain manufacturer's specification for proper setup.
SRAM T-Type Setup Key: A Setup cog: 6 (24t) Chain Length: 120.
pivotcycles.com info@pivotcycles.com
LONG
1
3
5
7
1.877.857.4868
2
4
6
8
