Alpinestars Bionic BNS TECH 2 Benutzerinformationen Seite 4

BIONIC NECK SUPPORT - IMPORTANT USER INFORMATION
EU Size US Size Chest Circumference (cm)
10-11years old 72 (28.3")
12-13 years old 76 (30.0")
14-16 years old 80 (31.5")
42 32 84 (33.0")
44 34 88 (34.6")
46 36 92 (36.25")
48 38 96 (37.75")
50 40 100 (39.4")
52 42 104 (41.0")
54 44 108 (42.5")
56 46 112 (44.1")
58 48 116(45.75")
60 50 120 (47.25")
62 52 124 (48.8")
64 54 128 (50.4")
66 56 132 (52.0")
Table 1 – Initial Selection Guide
2. The Rear Stabilizer (10) must be assembled before fitting:
(a) Unfasten the Quick Release Locking System (4) and open the BNS fully
(b) Starting with the BNS upside down, grip the Rear Tail Section (6) so the two frame halves
sit flat and slot the rear stabilizer (10) over the key (8)
(c) Push down so the Attachment Plate (9) sits flat then turn the stabilizer (10) in a clockwise
direction until it locks into position.
– Quick Release Locking System.
Figure 6
3. Hold the open arms of the BNS behind your head and slide the support forwards over the
shoulders and let it drop naturally onto your shoulders before engaging the Quick Release
Locking System (4). Note: In normal use the support should be worn on top of clothing and
under stone shield protectors. The user should try the support wearing the thickness of cloth-
ing they normally ride with.
4. Press lightly down on the sides of the BNS, next to the X Strap hooks (5).
5. The BNS should settle into a naturally snug position with light pressure on your chest
and back.

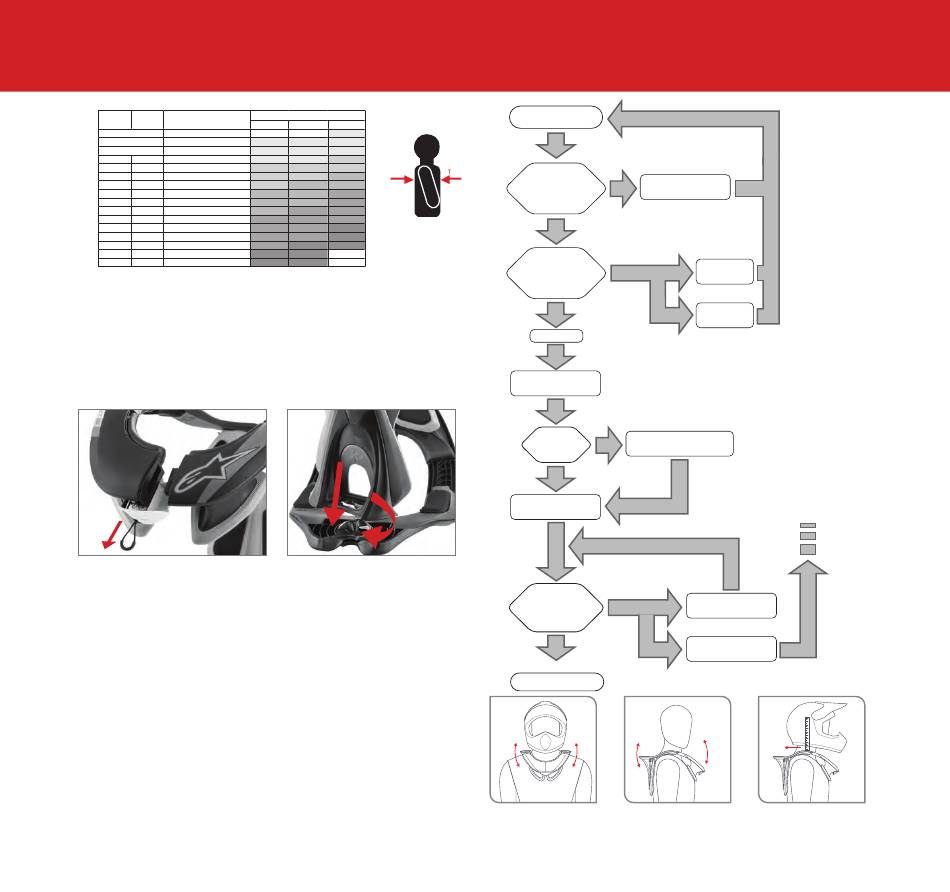

6. The following flow chart can now be used to help you select and fit the correct size of
BNS.
Chest Thickness (T)
Slim Normal Barrel
XS
XS XS XS
XS XS XS
XS XS S
S S S
S S M
S M M
M M L
M M L
M L L
L L L
L L XL
L L XL
L XL XL
XL XL -
XL XL -
1
2
– Attaching the Rear Stabilizer.
Figure 6.1
START – TRY BNS
preset size M/L
see Figure 5
Is the BNS tight at
Size Adapter too Small. Try
chest & back? Can
YES
it rock left & right? next size up.
(Fig 7)
NO SLIGHTLY
Does the brace rock
back and forth on your
YES
shoulders? (Fig 8)
Put helmet on
Measure the Gap between
Helmet & BNS
Gap Less than
Exchange 10mm Shoulder Pads
40mm ( 1½" )?
YES
to 6mm Shoulder Pads.
(Fig 9)
NO
Push Head Forward until
helmet touches BNS.
Does your chin
touch the Chin
YES
Supports (3) When the
helmet stops?
NO
OR JUST TOUCHES
BNS FITTED
– Check Play – Check Play
Figure 7 Figure 8
Figure 7 – Check Play Left/Right. Figure 7 – Check Play Left/Right. Figure 7 – Check Play Left/Right. Figure 8 – Check Play Back & Forth. Figure 8 – Check Play Back & Forth. Figure 8 – Check Play Back & Forth.
Left/Right Back & Forth.
see Figure 5
Size Adapter
too Large.
Try thicker 10mm
Pad Set.
TO START
Re-Check Size Adapter and
Padding Setup
Try a Larger Adapter
or Try another Helmet
– Measuring Gap –
Figure 9
Figure 9 – Measuring Gap - Helmet to BNS. Figure 9 – Measuring Gap - Helmet to BNS. Figure 9 – Measuring Gap - Helmet to BNS.
Helmet to BNS
