16.2 DConnect DAB Cloud Registration
If you do not already have a DConnect DAB account, register by clicking on the appropriate button. A valid email is required to which
the activation link will be sent for confirmation.
Enter all required data marked with an asterisk. Please agree to the privacy policy and fill in the required data.
Registration with DConnect is free of charge and enables you to receive information on the use of DAB products.
16.3 Product configuration
The product can be configured and monitored via a special app available from the main stores. In case of doubt, go to
internetofpumps.com for guidance.
The app guides the installer step-by-step through the initial set-up and installation of the product. The app also allows the installer to
update the product and take advantage of DConnect digital services. Refer to the APP itself to complete the operation.
17 MODBUS COMMUNICATION PROTOCOL
The purpose of this paragraph is to illustrate the correct use of the MODBUS interface to be applied to the device.
This section is intended for users who are familiar with Modbus devices. The operator should have a basic knowledge
of this protocol and of the technical specifications.
It is also assumed that there is already a Modbus RTU network with a "master" device.
Abbreviations and definitions
CRC CyclicRedundancyCheck
RTU Remote Terminal Unit
0x Prefix identifying a hexadecimal number
17.1 Electrical connection
The Modbus protocol is implemented on the RS 485 bus. The connections must be made according to the table below.
Modbus Terminal
17.2 Modbus Configuration
The device can be directly connected in a MODBUS RTU RS485 network as a slave device.

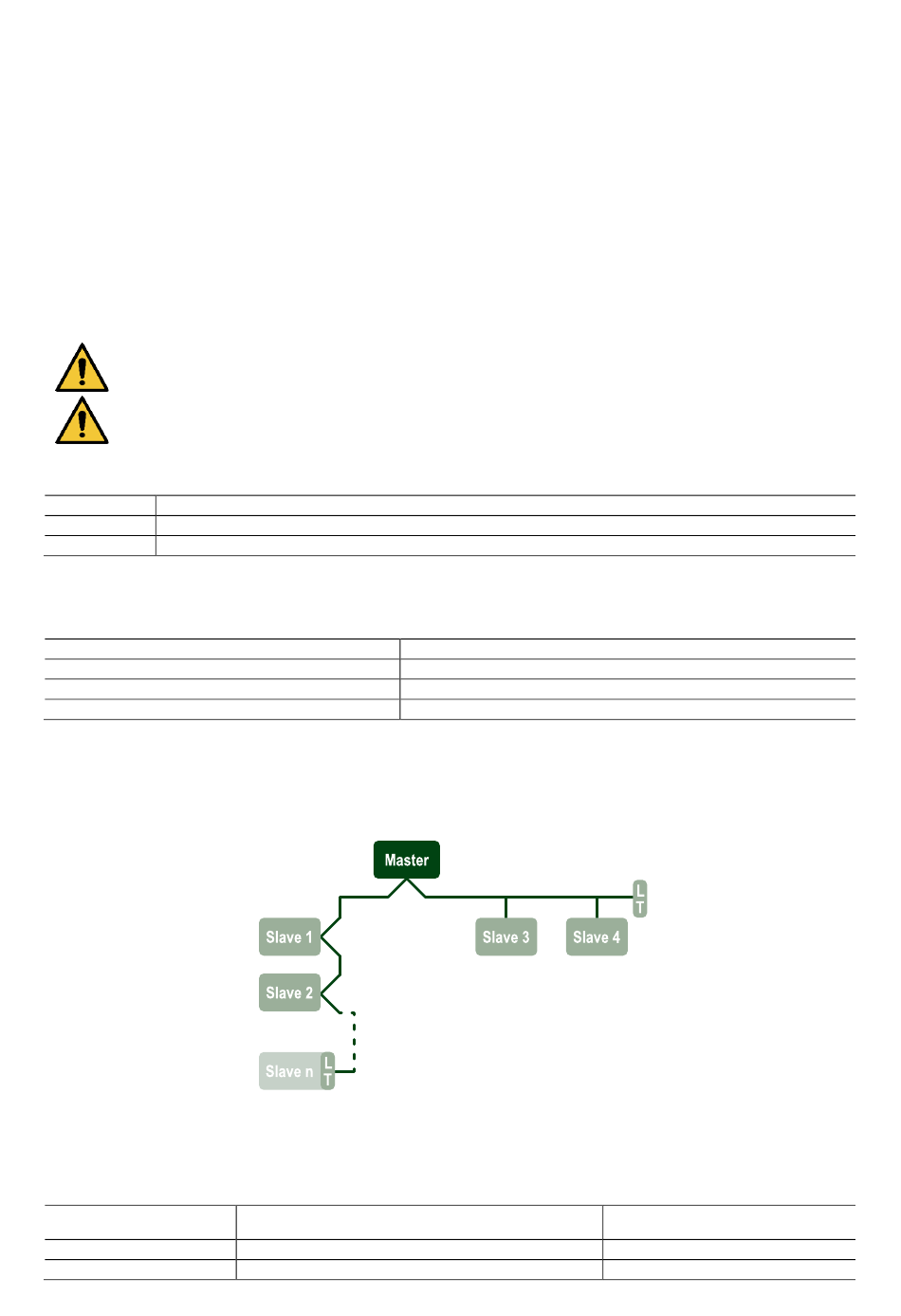

The following graph provides a graphic representation of the type of network to be created.
Through Modbus communication, the pump will allow the transfer of information and commands relating to its status and the status
of any pump set to which it belongs.
The parameters supported for MODBUS RTU communication are described below.
Modbus specifications
Protocol
Connections
A
B
Y
Description
Modbus RTU
Terminal block
ENGLISH
Description
Terminal not inverted (+)
Terminal inverted (-)
Tabella 6
61
GND
Notes
Only "Slave" mode is supported
