DAB NGPANEL Installations- Und Wartungsanleitungen Seite 6

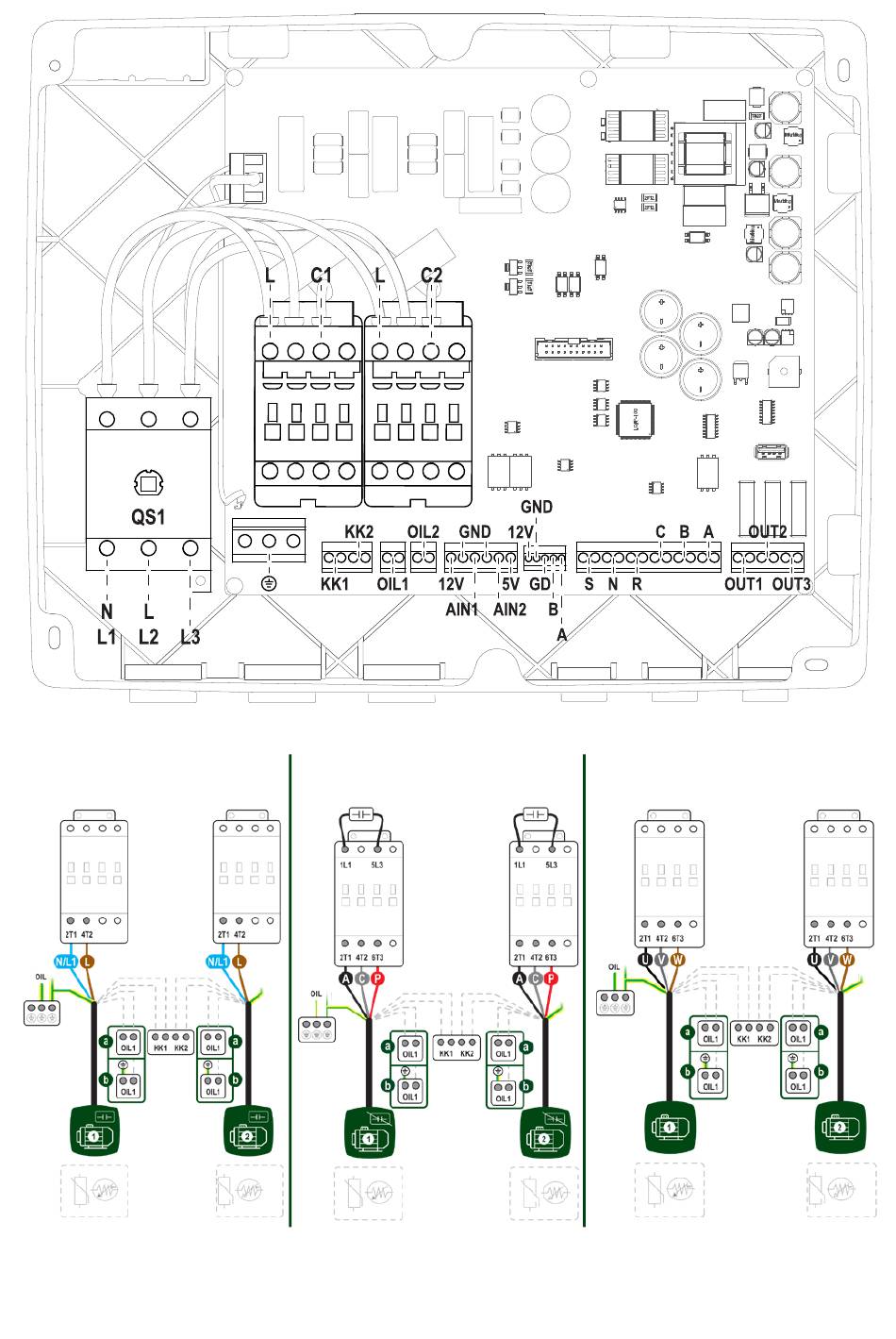

Fig. 4: NGPANEL board
SINGLE-PHASE SINGLE-PHASE THREE PHASE
internal capacitors external capacitors
Fig.5: Electrical connection of pumps and external capacitors
