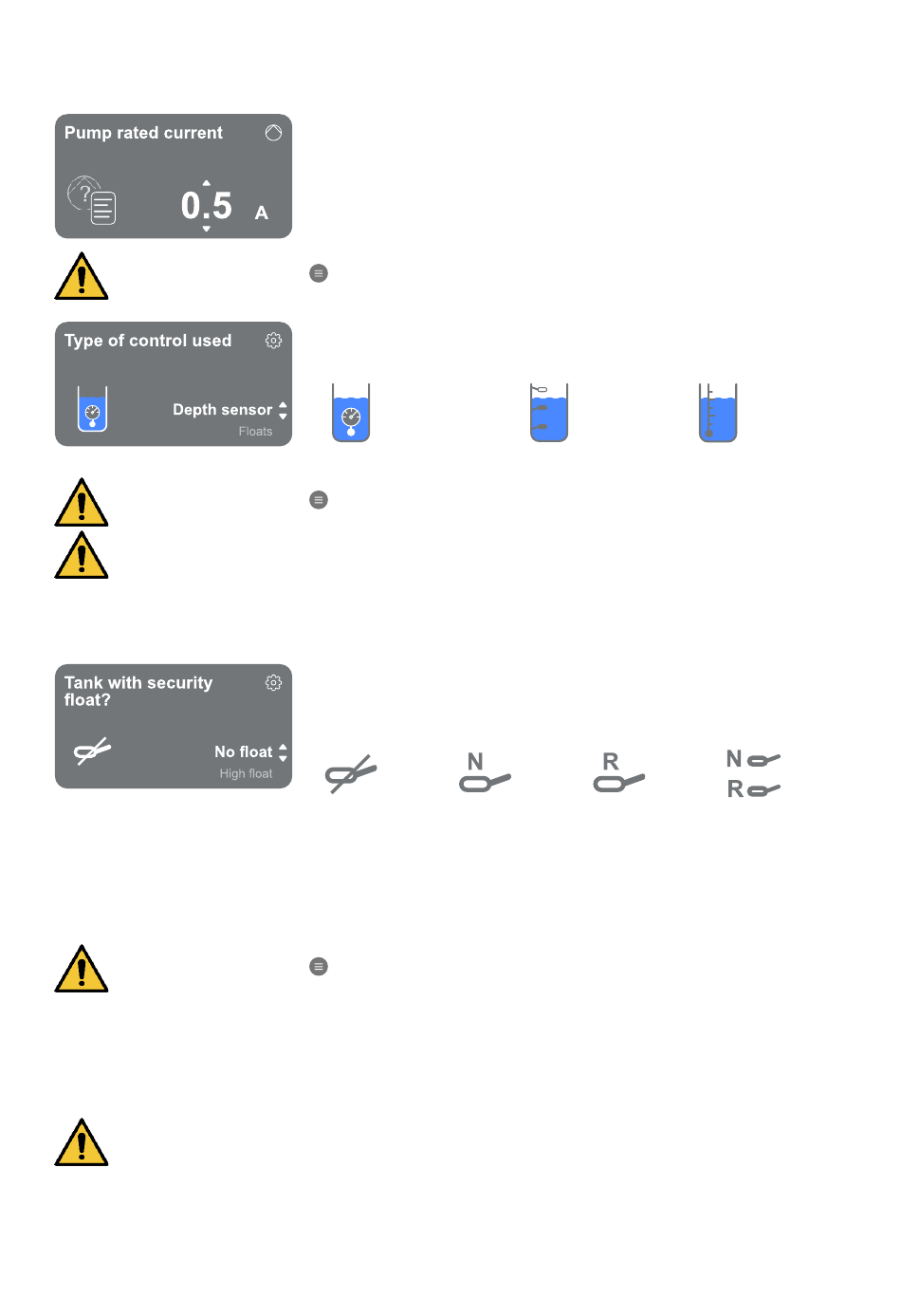

14.3 Filling configuration
Follow the step-by-step wizard as shown below.
When first installed, the key
When first installed, the key
Tank with dry running float
Indicate whether the tank will be provided with a float that stops the operation of the pumps in case of an lack of liquid.
14.3.1 Use with depth sensor
Follow the step-by-step wizard as shown below:
Type of depth sensor
Indicate the type of depth sensor.
Refer to our DAB catalogue for the choice of values.
When first installed, the key
Tank high
Set the height of the tank at your disposal, which cannot be higher than the full scale value of the sensor.
Configuration with protection levels
With the depth sensor, it is possible to set a maximum level alarm for "overflow" and a minimum level alarm for "dry run".
If floats for "overflow" and "empty tank emergency" have already been provided, these inhibit the alarms set
with the depth sensor.
The decision to provide both protections is for greater system safety.
Then proceed to set the levels for each pump.
ENGLISH
Absorbed current
Enter the rated current shown on the motor label.
The range of values depends on the selected panel and on the supply voltage.
is inhibited, as entering a value is mandatory.
Type of control used
The following controls are available:
Depth sensor
is inhibited, as entering a value is mandatory.
Use a security float
Indicate whether you want to use security floats.
Once you have made your choice, then indicate the polarity of your floats.
No float High float
(no protection is (protection against
set) overflow)
is inhibited, as entering a value is mandatory.
53
Floats Level probes
Low float
(protection against
empty tank
emergency)
Both floats
(both protections
are set)
