To close the fixture:
1. Replace the anti-humidity bag with a new item as described earlier in this chapter. Bags are
available from Martin as accessories.
2. Check that the compartment cover seal is perfectly clean, dry and in perfect condition. Do not
apply liquid gasket or any kind of grease to the seal. If the seal shows any signs of damage,
contact your Martin supplier for a replacement.
3. Reinstall the cover with its four screws. Use a torque driver to tighten the screws to 2 Nm.
Installing lighting effects
Important! Effects do not support hot-plugging and will be damaged if you try to install them with
power applied. Shut down power before installing effects modules.
Effects can be installed inside the fixture in the combinations shown below:
Animation
wheel
X
X
X
X
X
X

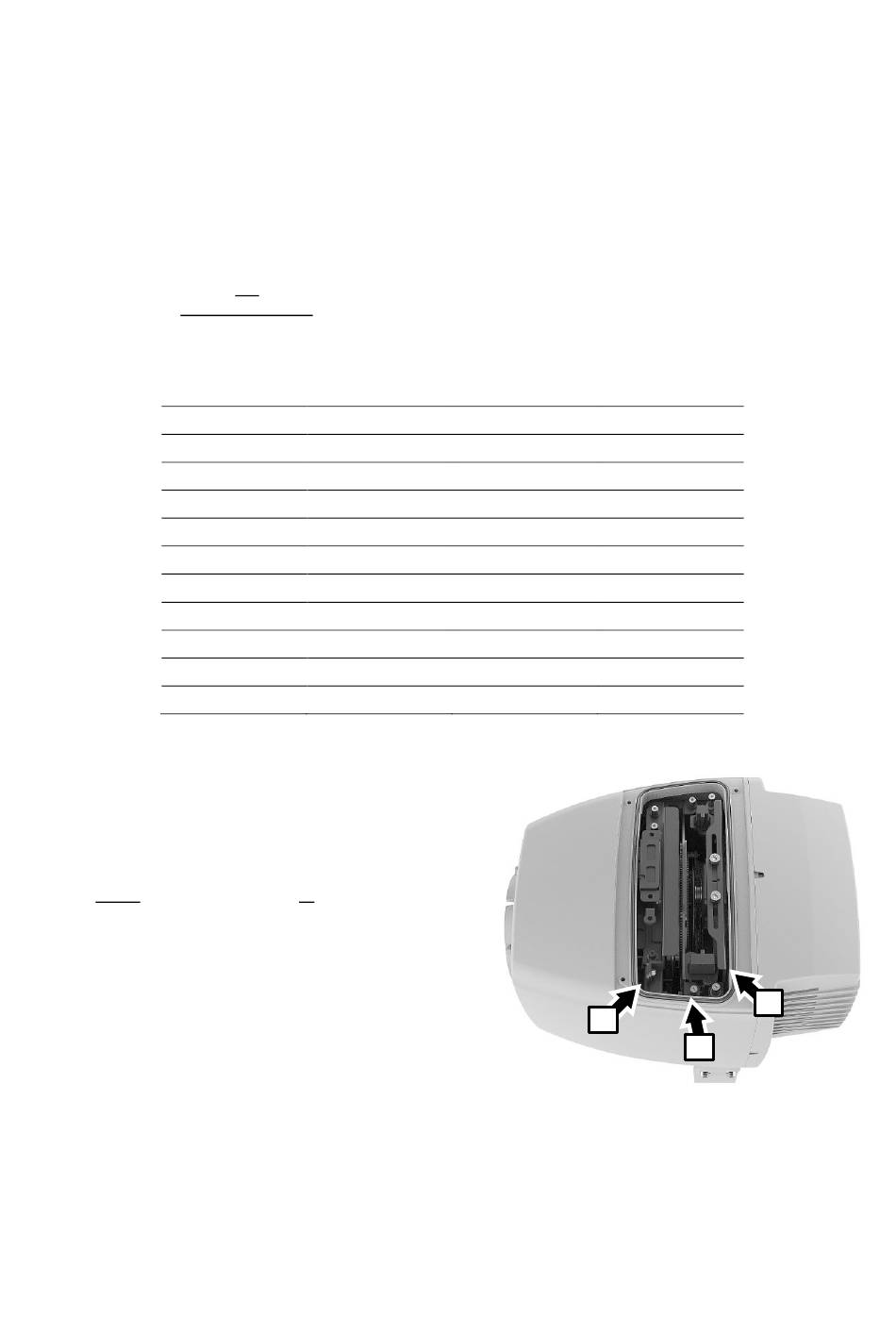

See photo on right. Spaces are provided for effects
modules in the following order, from the back to the
front of the fixture:
1. Animation wheel module A (optional accessory).
2. Either single rotating gobo or four rotating gobo
wheel module B (optional accessories).
3. Manual four-blade framing module C (optional
accessory).
Important! To avoid damaging modules, install them
as indicated below:
• Install the gobo module (4-gobo or single-gobo
module) B first; install the animation wheel A
second.
• Remove the animation wheel A first; remove the gobo module B second.
• No special installation and disassembly order is necessary for the framing module.
76 Exterior Projection Pro Compact Safety and Installation Manual
Single gobo 4-gobo
module
X
X
X
X
Framing
wheel module
X
X
X
X
X
X X
X
X X
C
A
B
