4. Connect the conductors in the data cable to the data terminals inside the connections
compartment as
follows:

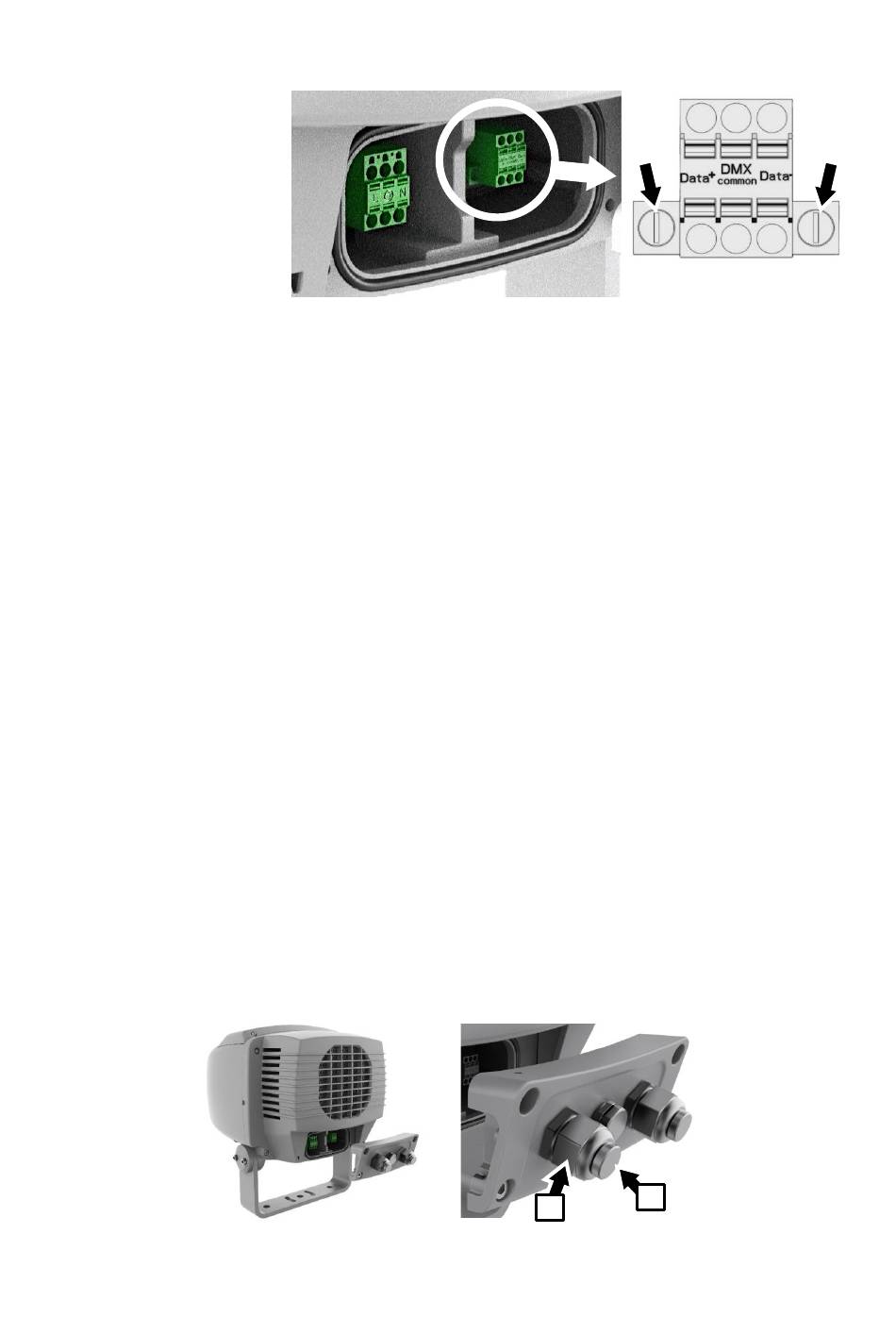

a) See illustration on
right. Loosen the
screws (arrowed) in
the detachable data
terminal block and
remove it from its
base inside the
fixture.
b) Fasten the data
positive wire into the terminal marked Data +.
c) Fasten the data negative wire into the terminal marked Data –.
d) Fasten the data shield/common wire into the terminal marked DMX common.
e) Re-insert the detachable data terminal block into its base and fasten it in place with its two
screws.
5. If you have finished making connections, re-install the connections compartment cover, checking
that the seal in the back of the fixture is clean, dry and in perfect condition.
6. Check that all installation work is completed and carry out appropriate tests and safety checks
before applying power.

Connecting via PD-type hybrid cables

You can connect the fixture to power and data using the PD cable accessories available from Martin
(consult your Martin supplier or see the Exterior Projection Pro Compact area of the Martin website for
ordering details). PD cable tails are supplied with a PD connector at one end and bare ends at the
other end. The cable tails use the EU mains power wire color-coding system.
Prepare cables as follows:
• For the PD IN cable, allow 7 cm of wire from the input cable gland to the power terminal block and
10 cm of wire from the input cable gland to the data terminal block.
• For the PD THRU cable, if used, allow 10 cm of wire from the output cable gland to the power
terminal block and 7 cm of wire from the output cable gland to the data terminal block.
Connecting a power and data IN PD cable
The cable tail with the male PD connector is intended for use as power and data input.
To connect to AC mains power and DMX/RDM data using the PD input cable tail:
1. Lock out power to the installation.
2. See illustration below. Release the four Allen screws in the connections compartment cover on the
back of the fixture and remove the cover. Loosen the compression nut A on the input cable gland
and remove the sealing plug B from the gland. Pass the PD input cable through the cable gland.
Exterior Projection Pro Compact Safety and Installation Manual
B
A
