Interface con-
nections

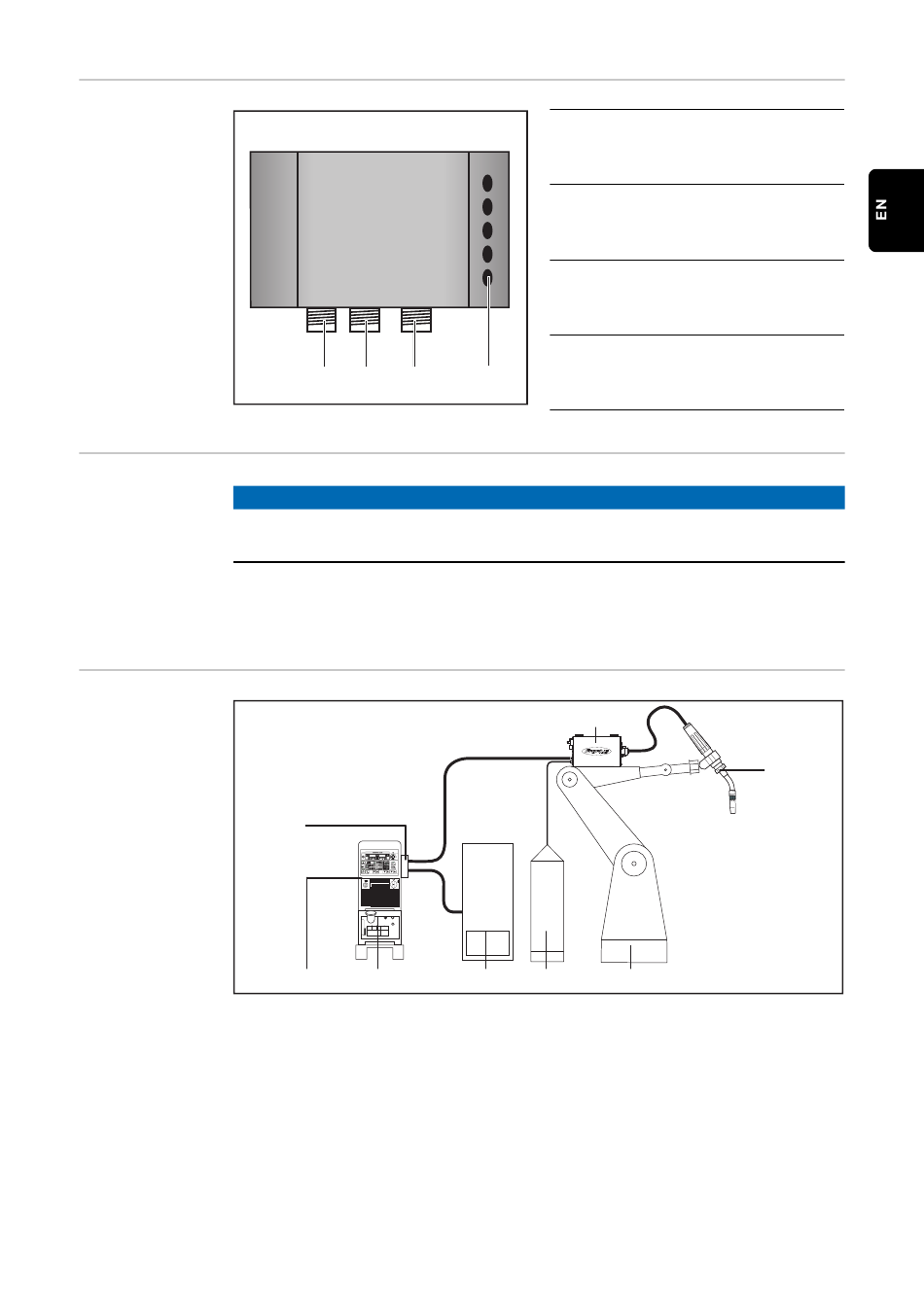

Interface connections
For your infor-
NOTE!
mation
While the robot interface is connected to the LocalNet, „2-step mode" remains
selected (display: 2-step mode).
Further information on the „Special 2-step mode for robot interface" can be
found in the sections headed „MIG/MAG welding" and „Operating mode parame-
ters" in the power source operating instructions.
Application ex-
ample
(1)
(2)
(3)
(4)
(5)
(2)
(3)
(4)
(3)
(5)
(1)
(2)
Power source
Cooling unit
AB Interbus FSMA
Interconnecting hosepack
Profibus data cable
(1)
Strain relief device
for feeding the Interbus data li-
ne and power supply
(2)
LocalNet connection
for connecting the intermediate
hosepack.
(3)
LocalNet connection
for connecting other system
components
(4)
LocalNet connection
for connecting other system
(1)
components
(10)
(4)
(6)
(7)
(8)
(6)
Robot control
(7)
Welding wire drum
(8)
Robot
(9)
Welding torch
(10)
Wirefeed speed
(9)
29
