„L1 - L7" LEDs
LED
(3)
L1
L2
L3
L6
L7
„L1" LED on:
The error description and the corresponding display on the power source are de-
scribed in the „Robot interface" leaflet (42,0410,0616):
chapter entitled „Output signals to robot", section „Error number UBST"

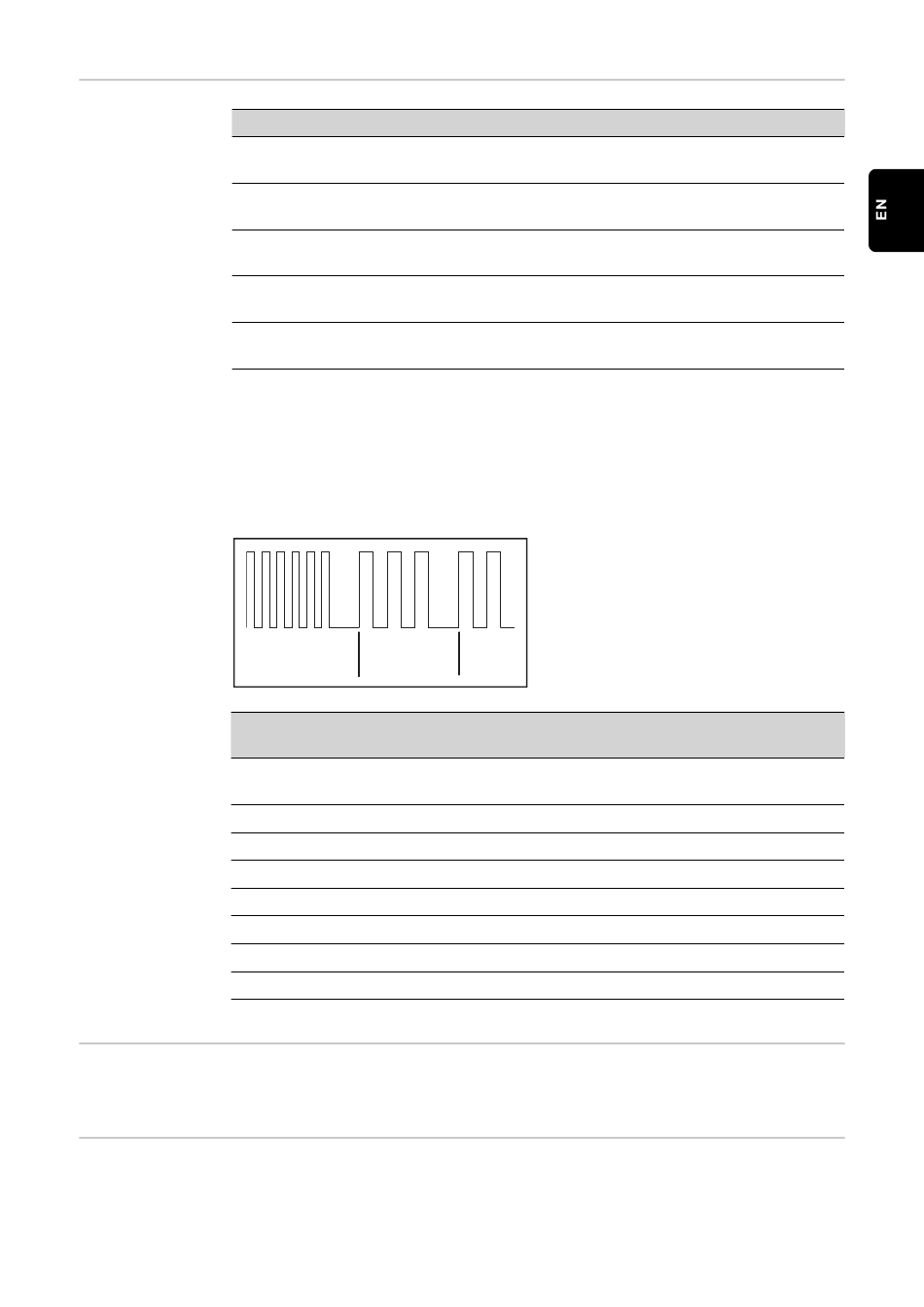

„L1" LED flashing - error is communicated using the flash code:
Error
code
1
„EXT" LED (4)
The „EXT" LED (4) comes on if the external supply voltage is selected using the
„EXT" jumper (5).
„EXT" jumper
The „EXT" (5) and „INT" (6) jumpers are for choosing between an internal and ex-
(5) / "INT" jum-
ternal power supply. The jumper is set in the factory to „external power supply".
per (6)
Indicator
Meaning
On/flashing
Error occurred in module
On
Communication on the
Fronius LocalNet is active
Flashing
Ethernet stack sending da-
ta
On
Ethernet - physical con-
nection present
Flashing
Ethernet data transmission
active
(a)
(b)
Error ar-
gument
Error description
1
Max. Ethernet frame size exceeded
2
Incorrect mailbox type
4
UDP data underflow on port 15000
5
UDP data overflow
6
UDP data underflow on port 15001
7
Incorrect UDP port
8
Error during stack initialisation
9
Invalid function
Remedy
See error number in table/
after sales service
-
-
-
-
(a)
Rapid flashing:
Start of the error code
(b)
First slow pulse:
Type of error
(c)
Second slow pulse:
Error location
(c)
Remedy
Switch interface
off and on again
-
-
-
-
-
-
-
33
