1
2
3
4
5
8

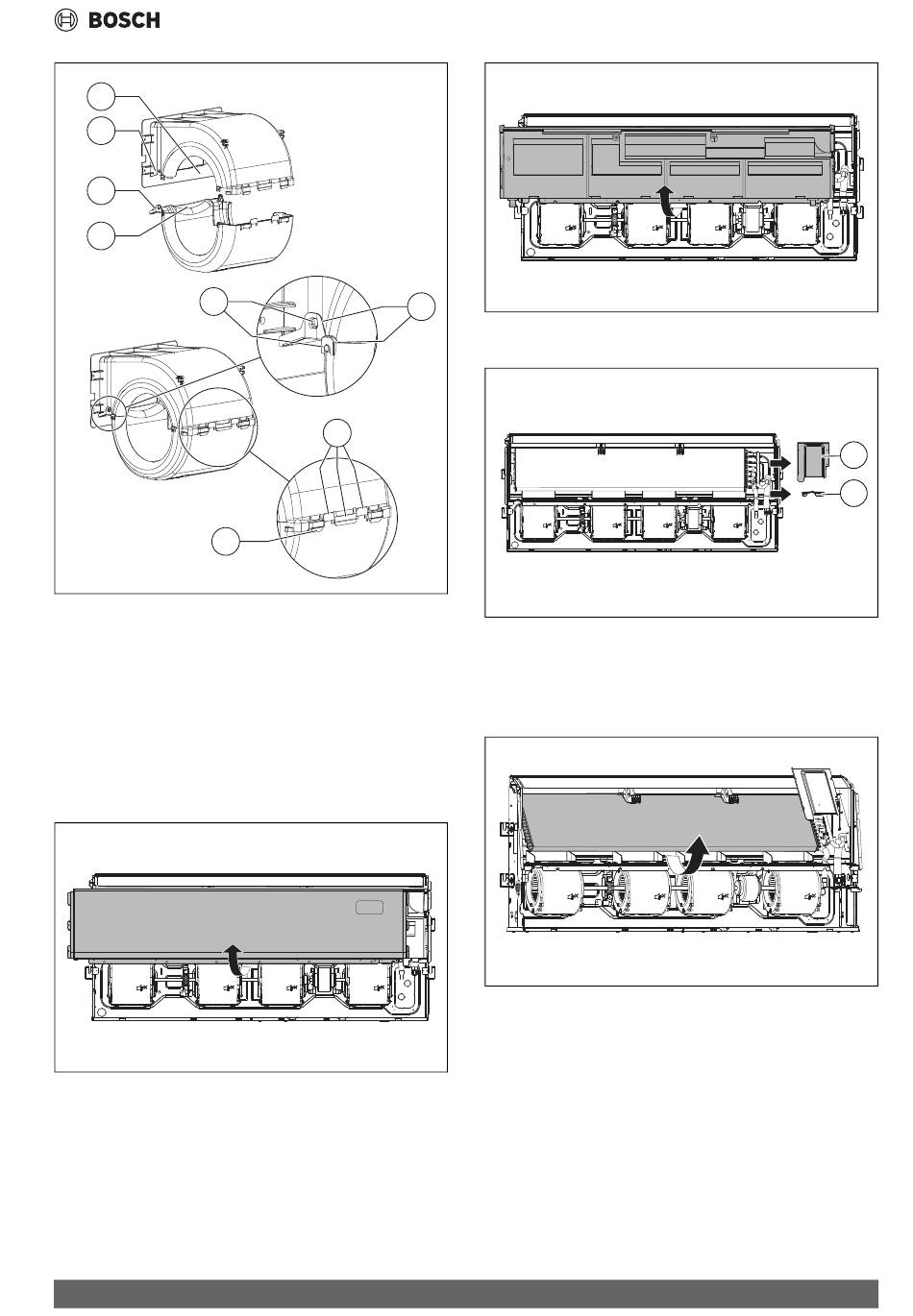

Fig. 45
[1] Latch bolt
[2] Side wall edge
[3] Limiting groove
[4] Slot
[5] Positioning rod
[6] Limiting groove
[7] Limiting latch bolt
[8] Buckle
Water receiver and evaporator maintenance
1. Remove the unit casing.
Fig. 46
2. Remove the water receiver.
Air Flux – 6721876663 (2023/12)
6
Fig. 47
3. Remove the pipe clamping casing.
7
0010052249-001
Fig. 48
[1]
[2]
4. Remove the evaporator.
5. Do maintenance on the evaporator.
Fig. 49
0010053480-001
Pipe clamping casing (front view)
Pipe clamping casing (side view)
Informations Owners Manual
0010053481-001
1
2
0010053482-001
0010053483-001
61
