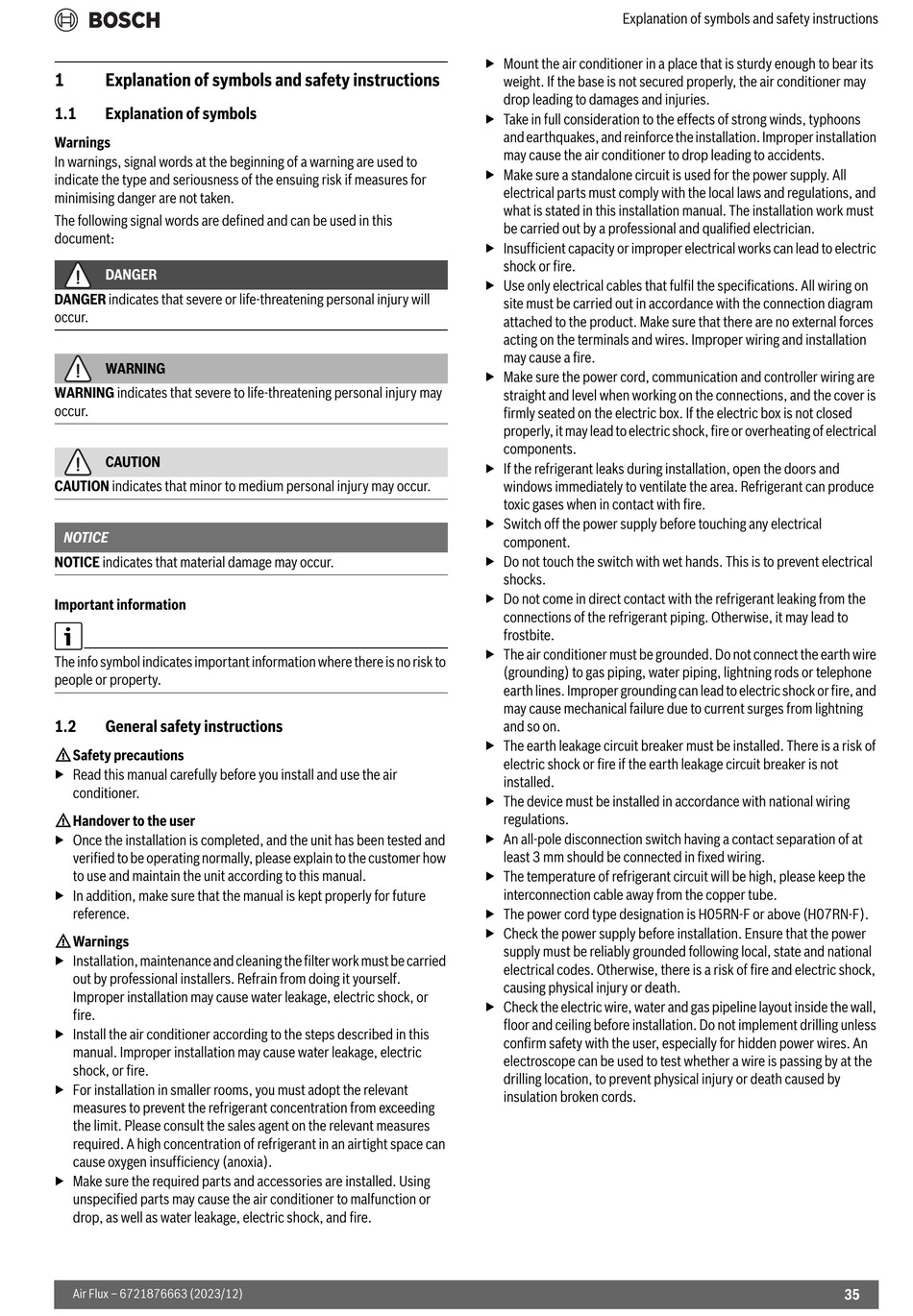

1
Explanation of symbols and safety instructions
1.1
Explanation of symbols
Warnings
In warnings, signal words at the beginning of a warning are used to
indicate the type and seriousness of the ensuing risk if measures for
minimising danger are not taken.
The following signal words are defined and can be used in this
document:
DANGER
DANGER indicates that severe or life-threatening personal injury will
occur.
WARNING
WARNING indicates that severe to life-threatening personal injury may
occur.
CAUTION
CAUTION indicates that minor to medium personal injury may occur.
NOTICE
NOTICE indicates that material damage may occur.
Important information
The info symbol indicates important information where there is no risk to
people or property.
1.2
General safety instructions
HSafety precautions
▶ Read this manual carefully before you install and use the air
conditioner.
HHandover to the user
▶ Once the installation is completed, and the unit has been tested and
verified to be operating normally, please explain to the customer how
to use and maintain the unit according to this manual.
▶ In addition, make sure that the manual is kept properly for future
reference.
HWarnings
▶ Installation, maintenance and cleaning the filter work must be carried
out by professional installers. Refrain from doing it yourself.
Improper installation may cause water leakage, electric shock, or
fire.
▶ Install the air conditioner according to the steps described in this
manual. Improper installation may cause water leakage, electric
shock, or fire.
▶ For installation in smaller rooms, you must adopt the relevant
measures to prevent the refrigerant concentration from exceeding
the limit. Please consult the sales agent on the relevant measures
required. A high concentration of refrigerant in an airtight space can
cause oxygen insufficiency (anoxia).
▶ Make sure the required parts and accessories are installed. Using
unspecified parts may cause the air conditioner to malfunction or
drop, as well as water leakage, electric shock, and fire.
Air Flux – 6721876663 (2023/12)
Explanation of symbols and safety instructions
▶ Mount the air conditioner in a place that is sturdy enough to bear its
weight. If the base is not secured properly, the air conditioner may
drop leading to damages and injuries.
▶ Take in full consideration to the effects of strong winds, typhoons
and earthquakes, and reinforce the installation. Improper installation
may cause the air conditioner to drop leading to accidents.
▶ Make sure a standalone circuit is used for the power supply. All
electrical parts must comply with the local laws and regulations, and
what is stated in this installation manual. The installation work must
be carried out by a professional and qualified electrician.
▶ Insufficient capacity or improper electrical works can lead to electric
shock or fire.
▶ Use only electrical cables that fulfil the specifications. All wiring on
site must be carried out in accordance with the connection diagram
attached to the product. Make sure that there are no external forces
acting on the terminals and wires. Improper wiring and installation
may cause a fire.
▶ Make sure the power cord, communication and controller wiring are
straight and level when working on the connections, and the cover is
firmly seated on the electric box. If the electric box is not closed
properly, it may lead to electric shock, fire or overheating of electrical
components.
▶ If the refrigerant leaks during installation, open the doors and
windows immediately to ventilate the area. Refrigerant can produce
toxic gases when in contact with fire.
▶ Switch off the power supply before touching any electrical
component.
▶ Do not touch the switch with wet hands. This is to prevent electrical
shocks.
▶ Do not come in direct contact with the refrigerant leaking from the
connections of the refrigerant piping. Otherwise, it may lead to
frostbite.
▶ The air conditioner must be grounded. Do not connect the earth wire
(grounding) to gas piping, water piping, lightning rods or telephone
earth lines. Improper grounding can lead to electric shock or fire, and
may cause mechanical failure due to current surges from lightning
and so on.
▶ The earth leakage circuit breaker must be installed. There is a risk of
electric shock or fire if the earth leakage circuit breaker is not
installed.
▶ The device must be installed in accordance with national wiring
regulations.
▶ An all-pole disconnection switch having a contact separation of at
least 3 mm should be connected in fixed wiring.
▶ The temperature of refrigerant circuit will be high, please keep the
interconnection cable away from the copper tube.
▶ The power cord type designation is H05RN-F or above (H07RN-F).
▶ Check the power supply before installation. Ensure that the power
supply must be reliably grounded following local, state and national
electrical codes. Otherwise, there is a risk of fire and electric shock,
causing physical injury or death.
▶ Check the electric wire, water and gas pipeline layout inside the wall,
floor and ceiling before installation. Do not implement drilling unless
confirm safety with the user, especially for hidden power wires. An
electroscope can be used to test whether a wire is passing by at the
drilling location, to prevent physical injury or death caused by
insulation broken cords.
35
