2 Product Information
2.1 Electrical compliance
This equipment conforms to EN/IEC 61000-3-12 specifications.
3 Accessories
Verify that the air conditioner includes the following accessories:
Name
Installation and user manual
Insulation pipe
Flare nut
Cable tie
Lifting bolts
Drain pipe
Drain pipe clamp
Table 1 Accessories included in the scope of delivery
Additional accessories which can be purchased locally:
Model AF2-CF 36-1 –
AF2-CF 71-1
Copper pipe (GB1527)
Diameter of liquid/gas Ø 6,35 / Ø 12,7
side
Copper pipe (GB1527)
Thickness of liquid/gas
side
PVC drainage pipe
Insulation pipe for PE/
copper
Table 2 Additional accessories
4 Before installation
Unpacking inspection
▶ Determine the route to move the unit to the installation site.
▶ First unseal and unpack the unit. Use the holding fixtures (4 pieces)
to move the unit. Do not apply force to other parts of the unit,
especially the refrigerant piping, water discharge piping, and plastic
parts.
▶ Carry out a unpacking inspection to confirm whether the packaging
materials are in good condition, whether the accessories included in
the package are complete, whether the appearance of the air
conditioner is intact, and whether the surfaces of parts, such as the
heat exchanger, are worn. At the same time, check whether there are
oil stains on the stop valve of the unit.
▶ Check the two sealing nuts of the refrigerant pipe, and observe
whether the red dot on the surface of the air duct sealing nut
protrudes. If it protrudes, it indicates that the pipeline of the machine
is well sealed; if it is dented, it indicates that the pipeline leaks. In the
latter case, contact the dealer.
▶ Be sure to check the model of the machine before installation.
Air Flux – 6721876663 (2023/12)
Quantity Appearance
1 This manual
2
2
8
4
1
1
AF2-CF 80-1 – AF2-
CF 140-1
[mm] [mm]
Ø 9,52 / Ø 15,9
0,75 0,75 / 1,0
25
10/15
Purpose
Thermal insulation and anti-condensation effect of piping connections
For use in the installation works of connecting piping
To tighten the drain pipe to the drainage outlet and PVC pipe of the indoor
unit
To lift the unit
To secure the drain hose
▶ After the inspection of both indoor and outdoor units is completed,
pack them in plastic bags to prevent foreign objects from entering
the unit.

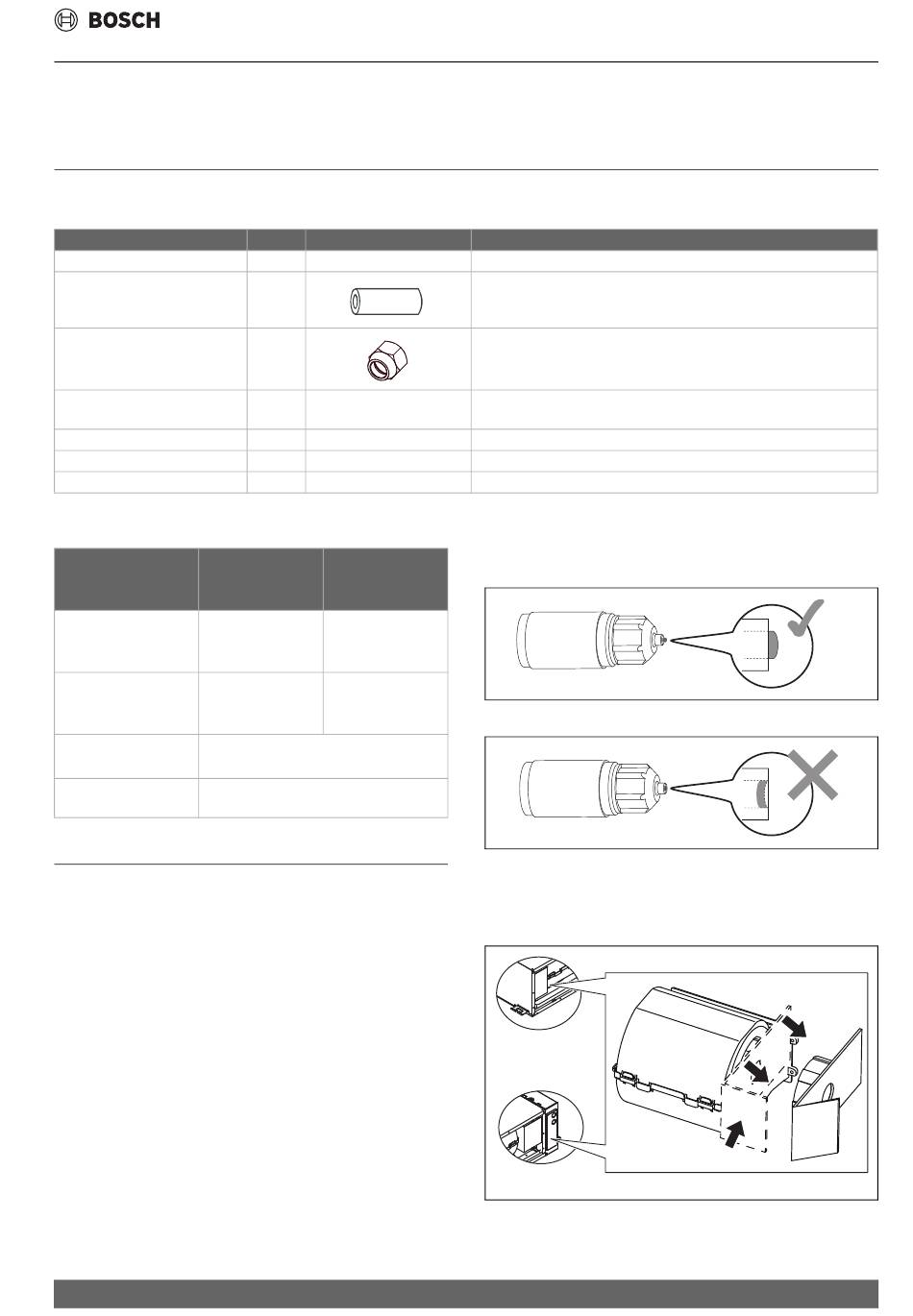

Fig. 1 Red sealing convex - sealing nut intact
Fig. 2 Red sealing concave - sealing nut defective
Take out the packaging materials in the volute (some models)
1. Push the cardboard inward to avoid jamming it.
2. Move the cardboard out horizontally
Fig. 3
Product Information
0010047149-001
0010047149-001
2.
1.
0010047364-001
