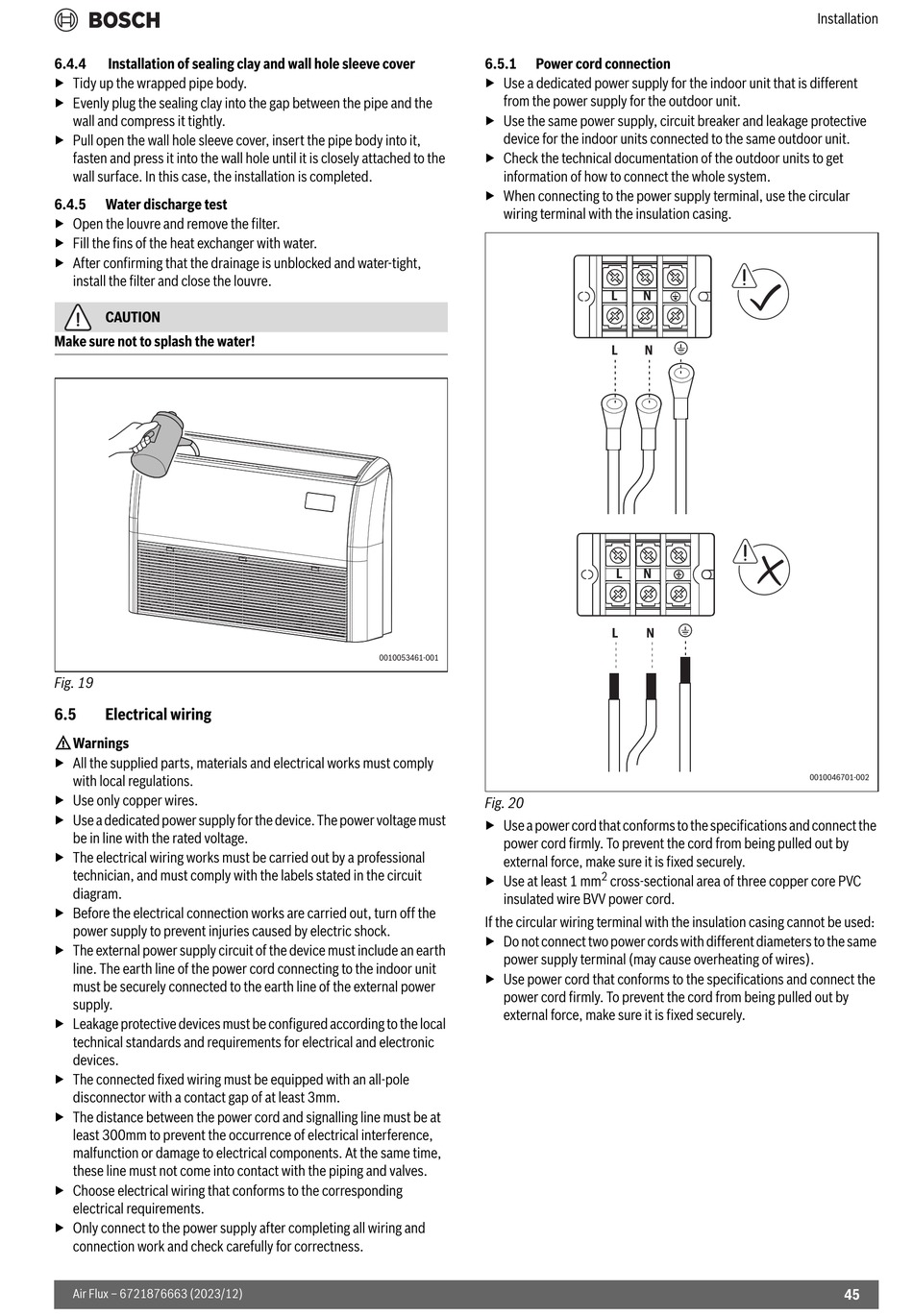

6.4.4
Installation of sealing clay and wall hole sleeve cover
▶ Tidy up the wrapped pipe body.
▶ Evenly plug the sealing clay into the gap between the pipe and the
wall and compress it tightly.
▶ Pull open the wall hole sleeve cover, insert the pipe body into it,
fasten and press it into the wall hole until it is closely attached to the
wall surface. In this case, the installation is completed.
6.4.5
Water discharge test
▶ Open the louvre and remove the filter.
▶ Fill the fins of the heat exchanger with water.
▶ After confirming that the drainage is unblocked and water-tight,
install the filter and close the louvre.
CAUTION
Make sure not to splash the water!
Fig. 19
6.5
Electrical wiring
HWarnings
▶ All the supplied parts, materials and electrical works must comply
with local regulations.
▶ Use only copper wires.
▶ Use a dedicated power supply for the device. The power voltage must
be in line with the rated voltage.
▶ The electrical wiring works must be carried out by a professional
technician, and must comply with the labels stated in the circuit
diagram.
▶ Before the electrical connection works are carried out, turn off the
power supply to prevent injuries caused by electric shock.
▶ The external power supply circuit of the device must include an earth
line. The earth line of the power cord connecting to the indoor unit
must be securely connected to the earth line of the external power
supply.
▶ Leakage protective devices must be configured according to the local
technical standards and requirements for electrical and electronic
devices.
▶ The connected fixed wiring must be equipped with an all-pole
disconnector with a contact gap of at least 3mm.
▶ The distance between the power cord and signalling line must be at
least 300mm to prevent the occurrence of electrical interference,
malfunction or damage to electrical components. At the same time,
these line must not come into contact with the piping and valves.
▶ Choose electrical wiring that conforms to the corresponding
electrical requirements.
▶ Only connect to the power supply after completing all wiring and
connection work and check carefully for correctness.
Air Flux – 6721876663 (2023/12)
6.5.1
Power cord connection
▶ Use a dedicated power supply for the indoor unit that is different
from the power supply for the outdoor unit.
▶ Use the same power supply, circuit breaker and leakage protective
device for the indoor units connected to the same outdoor unit.
▶ Check the technical documentation of the outdoor units to get
information of how to connect the whole system.
▶ When connecting to the power supply terminal, use the circular
wiring terminal with the insulation casing.
0010053461-001
Fig. 20
▶ Use a power cord that conforms to the specifications and connect the
power cord firmly. To prevent the cord from being pulled out by
external force, make sure it is fixed securely.
▶ Use at least 1 mm
insulated wire BVV power cord.
If the circular wiring terminal with the insulation casing cannot be used:
▶ Do not connect two power cords with different diameters to the same
power supply terminal (may cause overheating of wires).
▶ Use power cord that conforms to the specifications and connect the
power cord firmly. To prevent the cord from being pulled out by
external force, make sure it is fixed securely.
L
N
L
N
L
N
L
N
2
cross-sectional area of three copper core PVC
Installation
0010046701-002
45
