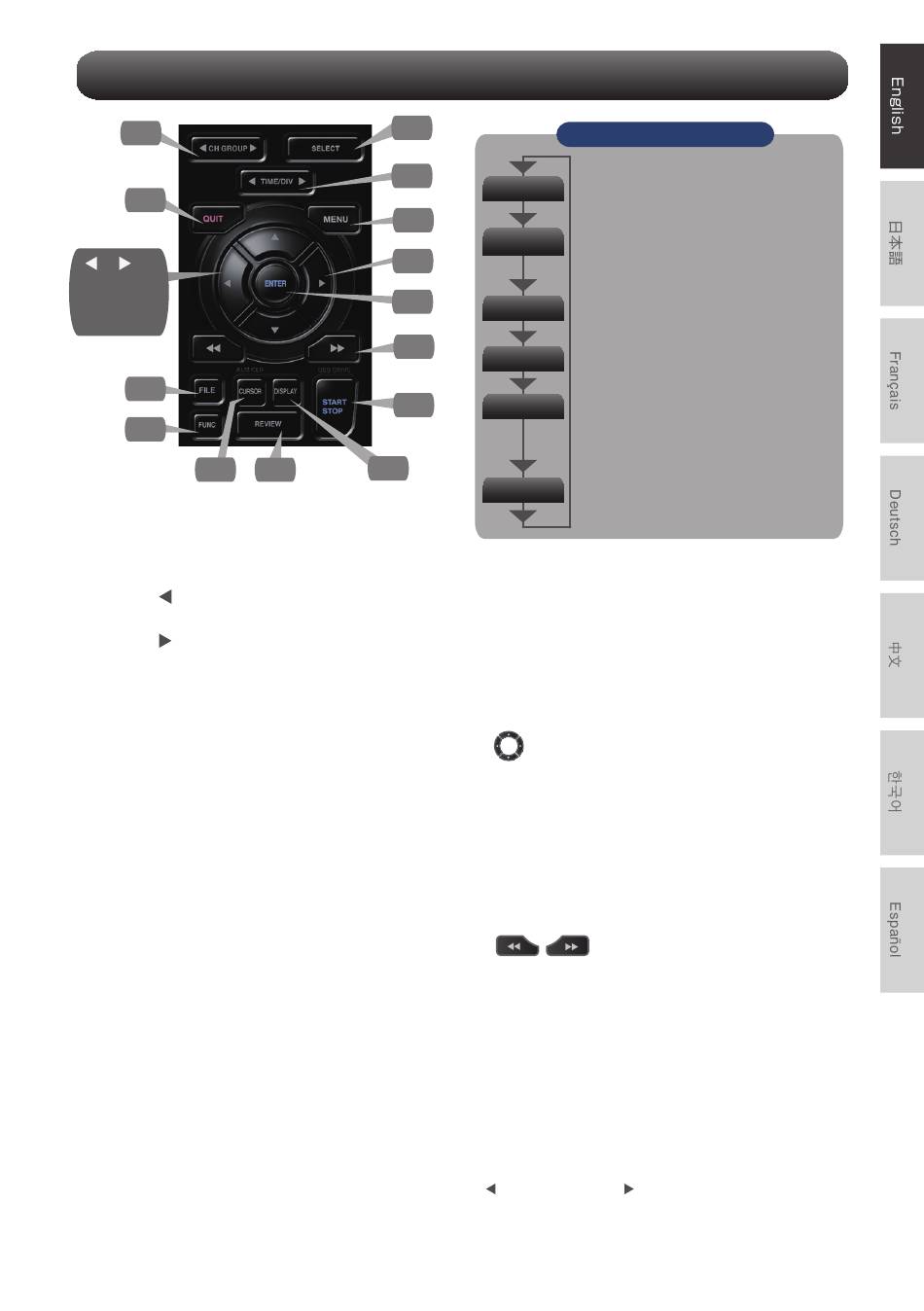

About the Control Panel Keys
1
5
+ +
ENTER
Password
setting
13
14
12
1. CH GROUP
Press this key to switch to the next group
consisting of 10 channels.
Press the key to switch to the previous
group.
Press the key to switch to the next group.
2. SELECT
Switches between analog, logic pulse, and
calculation display channels.
3. TIME/DIV
Push the [TIME/DIV] key to change the time
axis display range on the waveform screen.
4. MENU
Press the [MENU] key to open a setup menu.
Each time this key is pressed, the setup screen
tabs change in the sequence shown below.
2
3
4
6
7
8
9
11
10
[Menu] Sequence
•AMP Settings
AMP
Set the input, range, filter, scaling, and
other channel based settings.
•Record Settings
DATA
Set sampling interval and data record
destination.
•Trigger Settings
TRIG
Set the specify recording start and stop
conditions.
•Alarm Settings
ALARM
Set the alarm conditions.
•Interface Settings
I/F
Set the USB ID.
If the optional wireless unit is installed,
configure settings for the wireless LAN
connection.
•Other Settings
OTHER
Set the screen brightness, background
color, language and etc.
5. QUIT (LOCAL)
Push the [QUIT] key to cancel the settings and
return to the default status.
If GL860 is in a Remote (Key Lock) status and
is run by a computer via a USB or WLAN
interface, push the key to return to a normal
operating status. (Local).
6. keys (DIRECTION KEYS)
Direction keys are used to select menu setup
items, to move the cursors during a data replay
operation.
7. ENTER
Push the [ENTER] key to submit the setting
and to confirm your settings.
8. keys (KEY LOCK)
Fast forward and rewind keys are used to
move the cursor at high speed during replay or
change the operation mode in the file box.
Hold down both keys simultaneously for at
least two seconds to lock the key buttons.
(Orange key at the top right of window
indicates locked status).
To cancel key lock status, push both key again
for at least two seconds.
* Pushing these keys simultaneously with the
key + ENTER + key enables password
protection for the key lock operation.
