1. Insert tabs at the top of the terminal unit into
the grooves.
Connecting the AC Adapter
Connect the DC output of the AC adapter to the
connector indicated as "DC LINE" on the GL860.
Connecting the Analog Input Terminals
Withstand high-voltage
high-precision terminal(B-565)
CH1................................CH20
CAUTION
• Connect to any terminal according to the picture above.
For the connection to the screwless terminal, refer to the instruction manual (PDF).
• B-563/B-563SL/B-563SL-30 do not support RTD input.

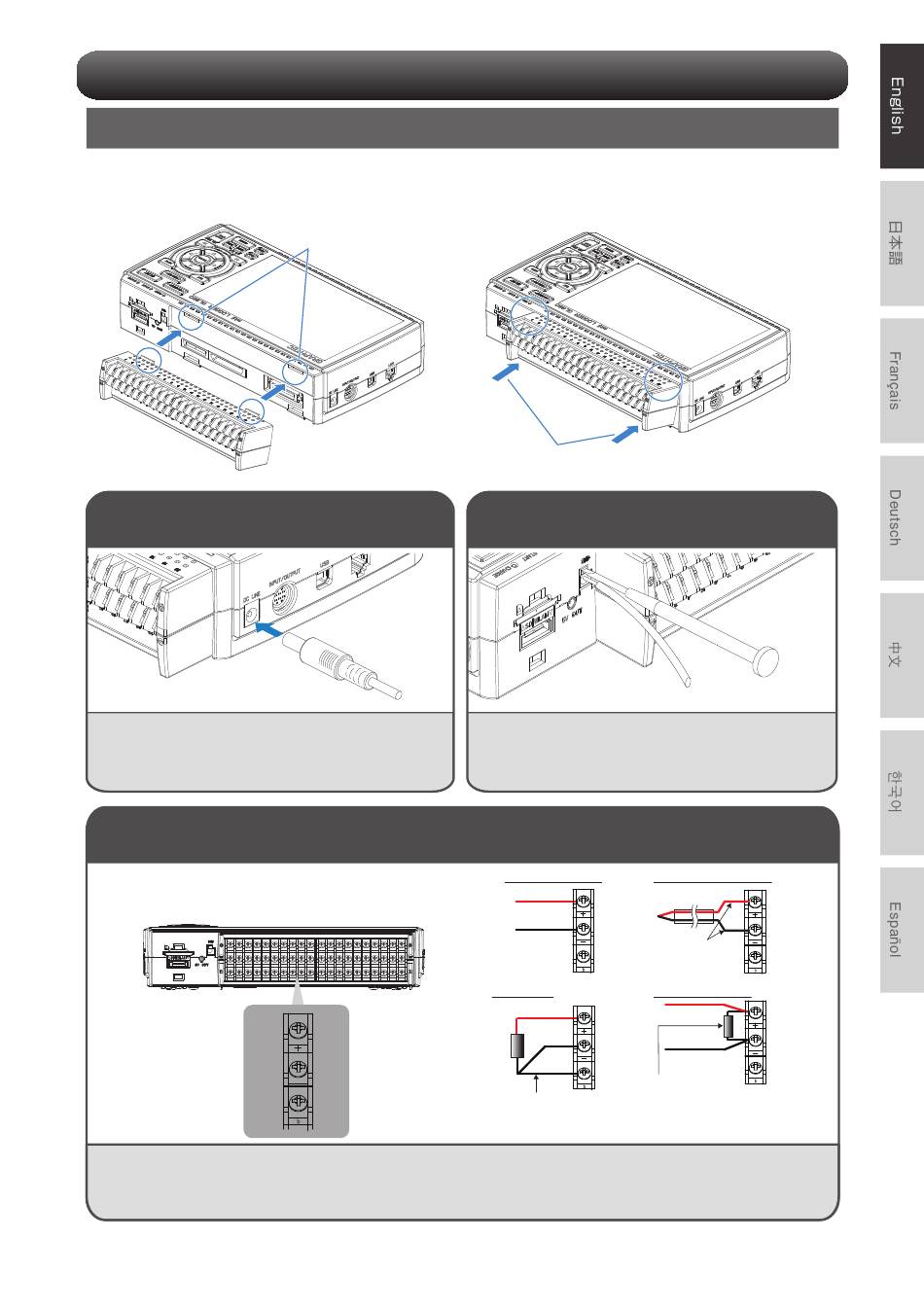

Connection Methods
Mounting each terminal
Insert into grooves
+
-
b
2. Push the terminal unit in the direction shown
until it is securely locked.
Push
Connecting the Grounding Cable
Use a flathead screwdriver to push the button above
the GND terminal while connecting the grounding
cable to the GL860.
Connect the other end of the cable to ground.
DC voltage input
+
DC voltage
-
RTD input
A
+
B
-
b
b
Shunt resister
Ex: For 4-20mA, add 250Ω (±0.1%) and
Lead wire resistance should
be 10 Ω or less per wire and,
three wires need to be same
length.
4
Thermocouple input
+
-
Compensation cable.
DC current input
+
-
measure in the 1-5V range.
* Use B-551 (option) for the shunt resistor.
