PREMASGARD

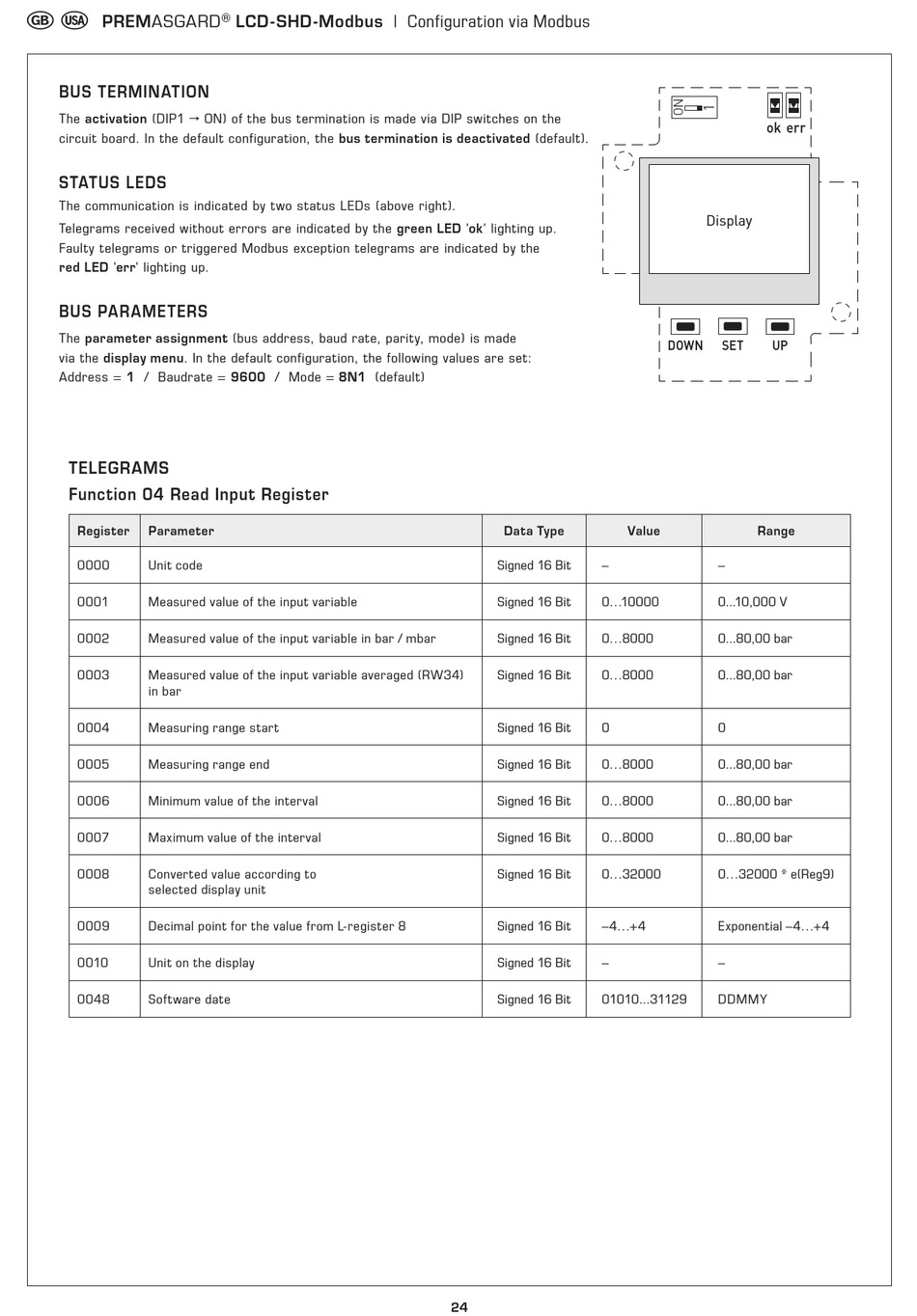

BUS TERMINATION

The activation (DIP1 → ON) of the bus termination is made via DIP switches on the
circuit board. In the default configuration, the bus termination is deactivated (default).
STATUS LEDS
The communication is indicated by two status LEDs (above right).
Telegrams received without errors are indicated by the green LED 'ok' lighting up.
Faulty telegrams or triggered Modbus exception telegrams are indicated by the
red LED 'err' lighting up.
BUS PARAMETERS
The parameter assignment (bus address, baud rate, parity, mode) is made
via the display menu. In the default configuration, the following values are set:
Address = 1 / Baudrate = 9600 / Mode = 8N1 (default)
TELEGRAMS
Function 04 Read Input Register
Register Parameter
0000 Unit code
0001 Measured value of the input variable
0002 Measured value of the input variable in bar / mbar
0003 Measured value of the input variable averaged (RW34)
in bar
0004 Measuring range start
0005 Measuring range end
0006 Minimum value of the interval
0007 Maximum value of the interval
0008 Converted value according to
selected display unit
0009 Decimal point for the value from L-register 8
0010 Unit on the display
0048 Software date
®
LCD - SHD -Modbus | Configuration via Modbus
Data Type
Signed 16 Bit –
Signed 16 Bit 0...10000
Signed 16 Bit 0...8000
Signed 16 Bit 0...8000
Signed 16 Bit 0
Signed 16 Bit 0...8000
Signed 16 Bit 0...8000
Signed 16 Bit 0...8000
Signed 16 Bit 0...32000
Signed 16 Bit –4...+4
Signed 16 Bit –
Signed 16 Bit 01010...31129
24
ok err
Display
DOWN SET UP
Value Range
–
0...10,000 V
0...80,00 bar
0...80,00 bar
0
0...80,00 bar
0...80,00 bar
0...80,00 bar
0...32000 * e(Reg9)
Exponential –4...+4
–
DDMMY
