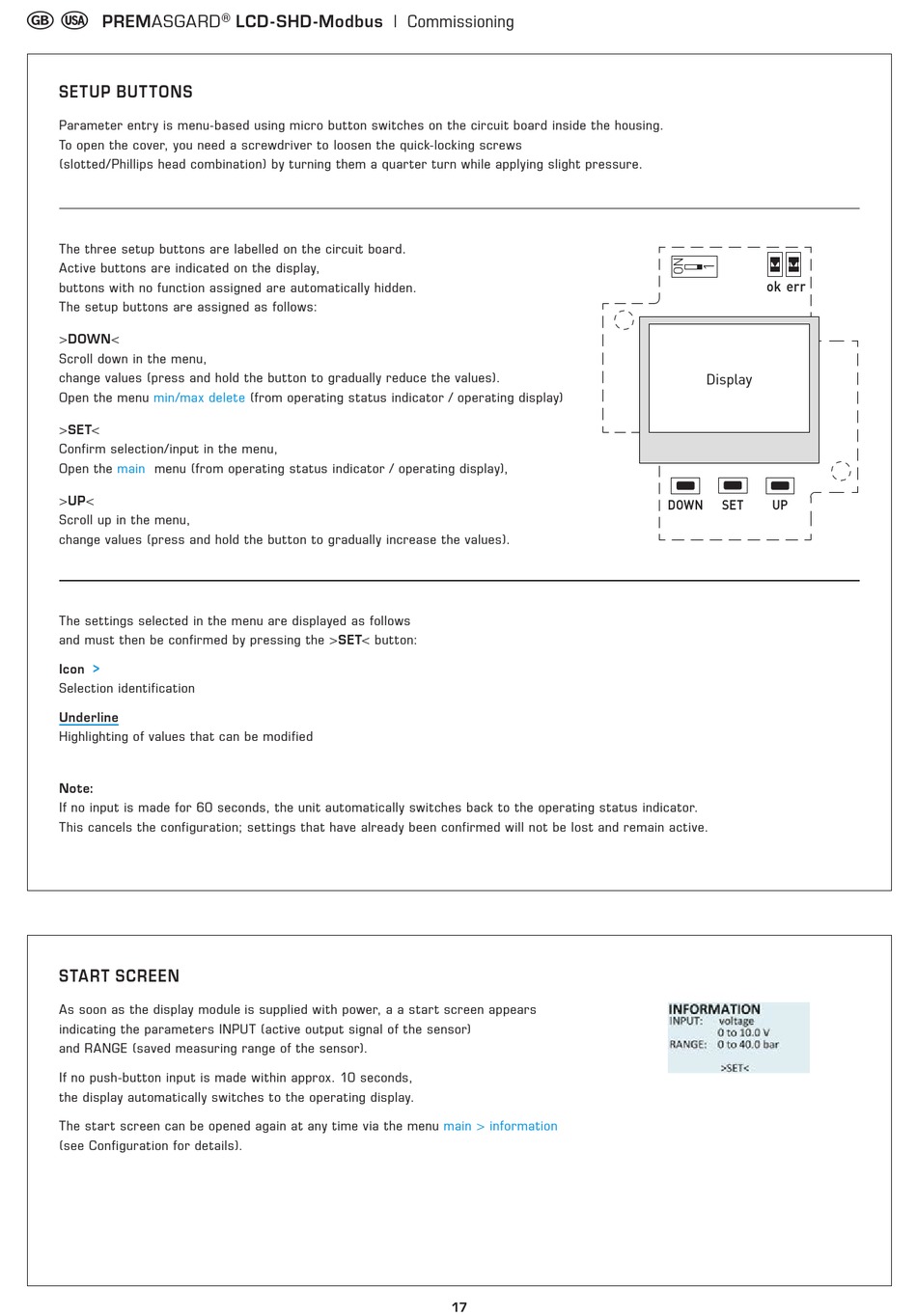

PREMASGARD LCD - SHD -Modbus | Commissioning
SETUP BUTTONS
Parameter entry is menu-based using micro button switches on the circuit board inside the housing.
To open the cover, you need a screwdriver to loosen the quick-locking screws
(slotted/Phillips head combination) by turning them a quarter turn while applying slight pressure.
The three setup buttons are labelled on the circuit board.
Active buttons are indicated on the display,
ok err
buttons with no function assigned are automatically hidden.
The setup buttons are assigned as follows:
>DOWN<
Scroll down in the menu,
Display
change values (press and hold the button to gradually reduce the values).
Open the menu min/max delete (from operating status indicator / operating display)
>SET<
Confirm selection/input in the menu,
Open the main menu (from operating status indicator / operating display),
>UP<
DOWN SET UP
Scroll up in the menu,
change values (press and hold the button to gradually increase the values).
The settings selected in the menu are displayed as follows
and must then be confirmed by pressing the >SET< button:
Icon >
Selection identification
Underline
Highlighting of values that can be modified
Note:
If no input is made for 60 seconds, the unit automatically switches back to the operating status indicator.
This cancels the configuration; settings that have already been confirmed will not be lost and remain active.

START SCREEN

As soon as the display module is supplied with power, a a start screen appears
indicating the parameters INPUT (active output signal of the sensor)
and RANGE (saved measuring range of the sensor).
If no push-button input is made within approx. 10 seconds,
the display automatically switches to the operating display.
The start screen can be opened again at any time via the menu main > information
(see Configuration for details).
