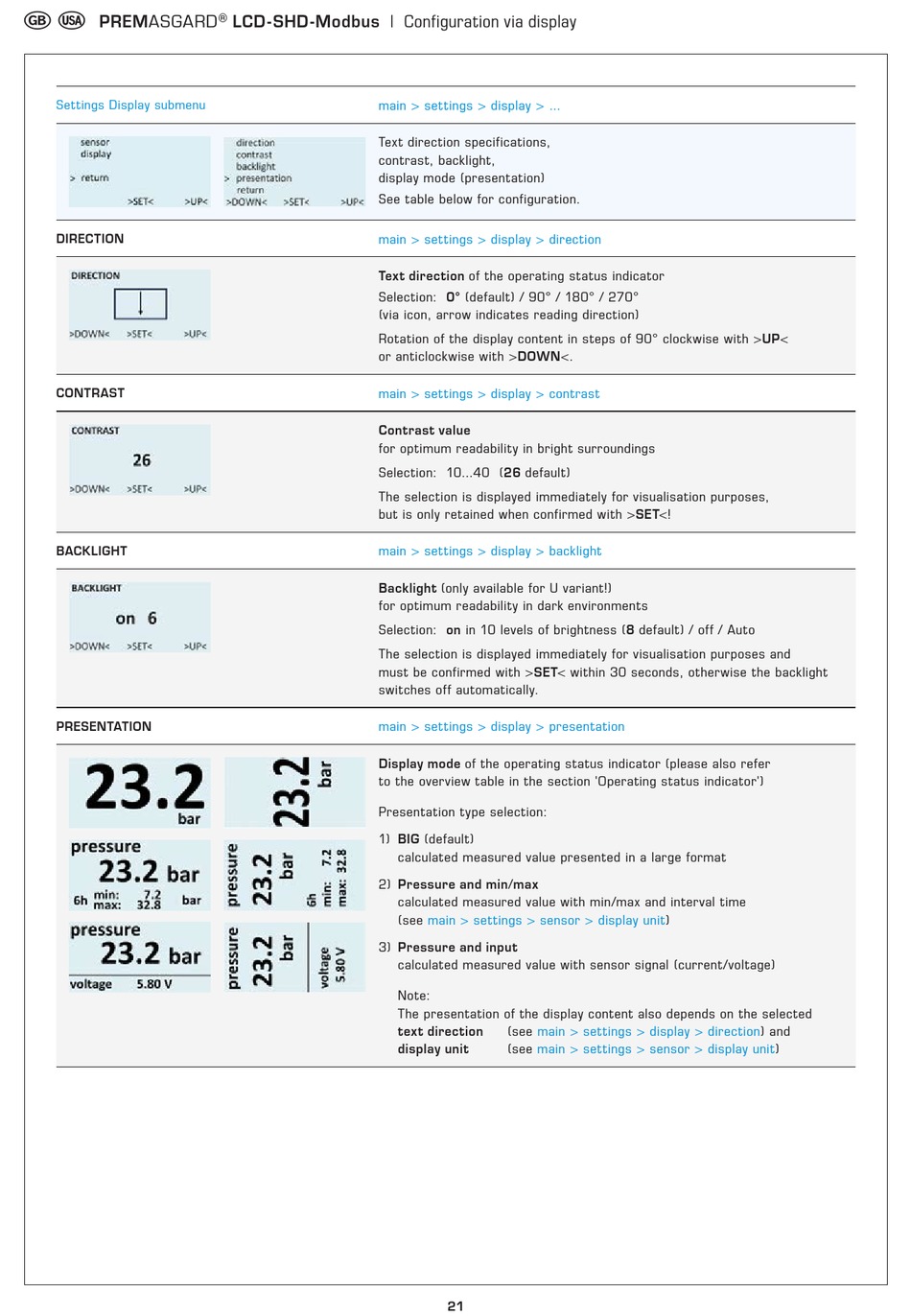

S+S REGELTECHNIK PREMASGARD LCD-Modbus Montageanleitung Seite 21

G U
PREMASGARD
Settings Display submenu
DIRECTION
CONTRAST
BACKLIGHT
PRESENTATION
®
LCD - SHD -Modbus | Configuration via display
main > settings > display > ...
Text direction specifications,
contrast, backlight,
display mode (presentation)
See table below for configuration.
main > settings > display > direction
Text direction of the operating status indicator
Selection: 0° (default) / 90° / 180° / 270°
(via icon, arrow indicates reading direction)
Rotation of the display content in steps of 90° clockwise with >UP<
or anticlockwise with >DOWN<.
main > settings > display > contrast
Contrast value
for optimum readability in bright surroundings
Selection: 10...40 (26 default)
The selection is displayed immediately for visualisation purposes,
but is only retained when confirmed with >SET<!
main > settings > display > backlight
Backlight (only available for U variant!)
for optimum readability in dark environments
Selection: on in 10 levels of brightness (8 default) / off / Auto
The selection is displayed immediately for visualisation purposes and
must be confirmed with >SET< within 30 seconds, otherwise the backlight
switches off automatically.
main > settings > display > presentation
Display mode of the operating status indicator (please also refer
to the overview table in the section 'Operating status indicator')
Presentation type selection:
1) BIG (default)
2) Pressure and min/max
3) Pressure and input
calculated measured value presented in a large format
calculated measured value with min/max and interval time
(see main > settings > sensor > display
calculated measured value with sensor signal (current/voltage)
Note:
The presentation of the display content also depends on the selected
text direction (see main > settings > display >
display unit
(see main > settings > sensor > display
21
unit)
direction) and
unit)
