PREMASGARD

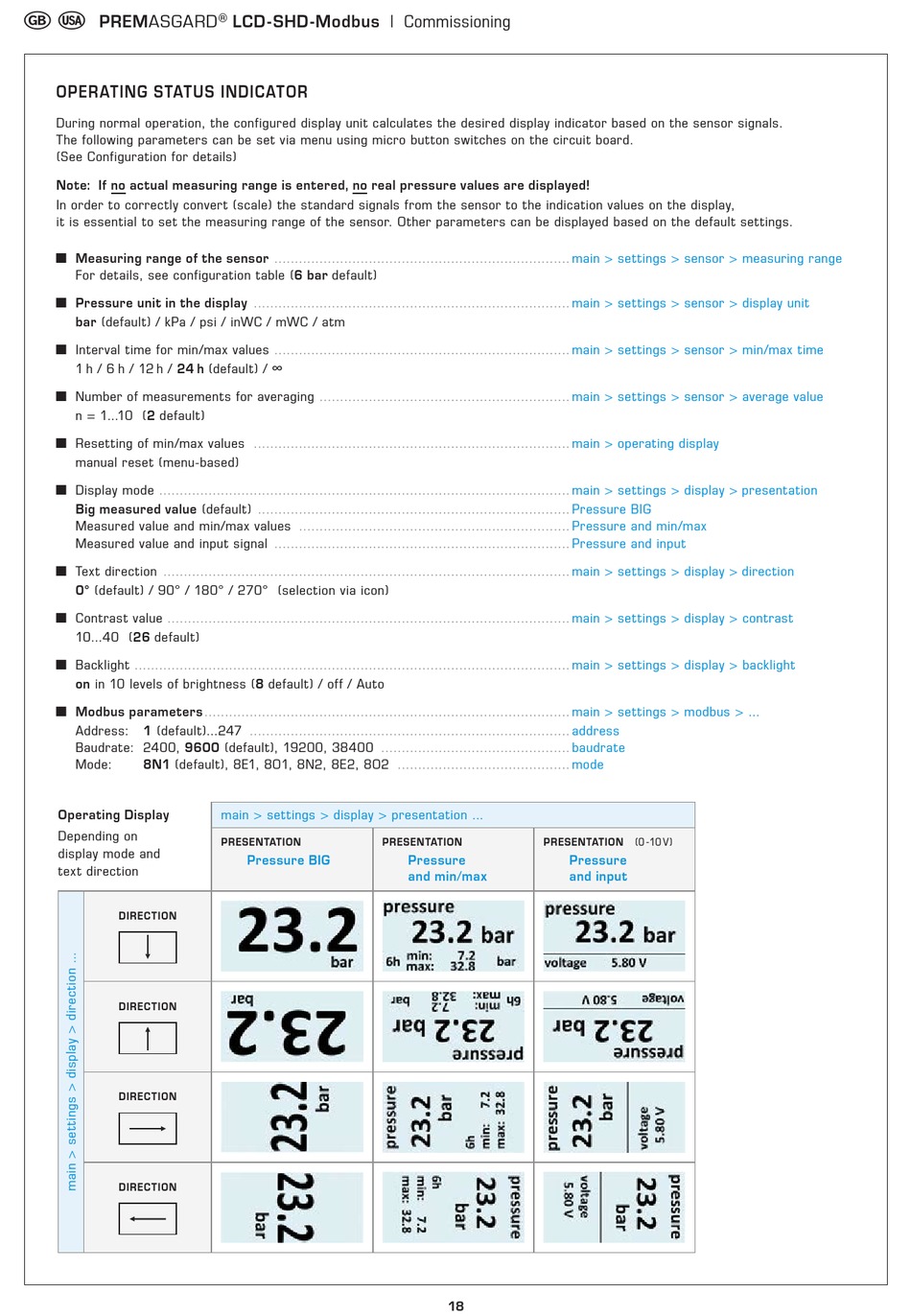

OPERATING STATUS INDICATOR

During normal operation, the configured display unit calculates the desired display indicator based on the sensor signals.
The following parameters can be set via menu using micro button switches on the circuit board.
(See Configuration for details)
Note: If no actual measuring range is entered, no real pressure values are displayed!
In order to correctly convert (scale) the standard signals from the sensor to the indication values on the display,
it is essential to set the measuring range of the sensor. Other parameters can be displayed based on the default settings.
■ Measuring range of the sensor
For details, see configuration table (6 bar default)
■ Pressure unit in the display
bar (default) / kPa / psi / inWC / mWC / atm
■ Interval time for min/max values
1 h / 6 h / 12 h / 24 h (default) / ∞
■ Number of measurements for averaging
n = 1...10 (2 default)
■ Resetting of min/max values
manual reset (menu-based)
■ Display mode ....................................................................................................
Big measured value (default)
Measured value and min/max values
Measured value and input signal
■ Text direction ...................................................................................................
0° (default) / 90° / 180° / 270° (selection via icon)
■ Contrast value ..................................................................................................
10...40 (26 default)
■ Backlight ..........................................................................................................
on in 10 levels of brightness (8 default) / off / Auto
■ Modbus parameters
Address: 1 (default)...247
Baudrate: 2400, 9600 (default), 19200, 38400
8N1 (default), 8E1, 8O1, 8N2, 8E2, 8O2
Mode:
Operating Display
Depending on
display mode and
text direction
DIRECTION
DIRECTION
DIRECTION
DIRECTION
®
LCD - SHD -Modbus | Commissioning
........................................................................
.............................................................................
........................................................................
.............................................................
.............................................................................
............................................................................
..................................................................
........................................................................
.........................................................................................
..............................................................................
main > settings > display > presentation ...
PRESENTATION
Pressure BIG
..............................................
..........................................
PRESENTATION PRESENTATION (0 -10 V)
Pressure
and min/max
18
main > settings > sensor > measuring range
main > settings > sensor > display unit
main > settings > sensor > min/max time
main > settings > sensor > average value
main > operating display
main > settings > display > presentation
Pressure BIG
Pressure and min/max
Pressure and input
main > settings > display > direction
main > settings > display > contrast
main > settings > display > backlight
main > settings > modbus > ...
address
baudrate
mode
Pressure
and input
