S+S REGELTECHNIK PREMASGARD LCD-Modbus Montageanleitung Seite 16

G U
PREMASGARD

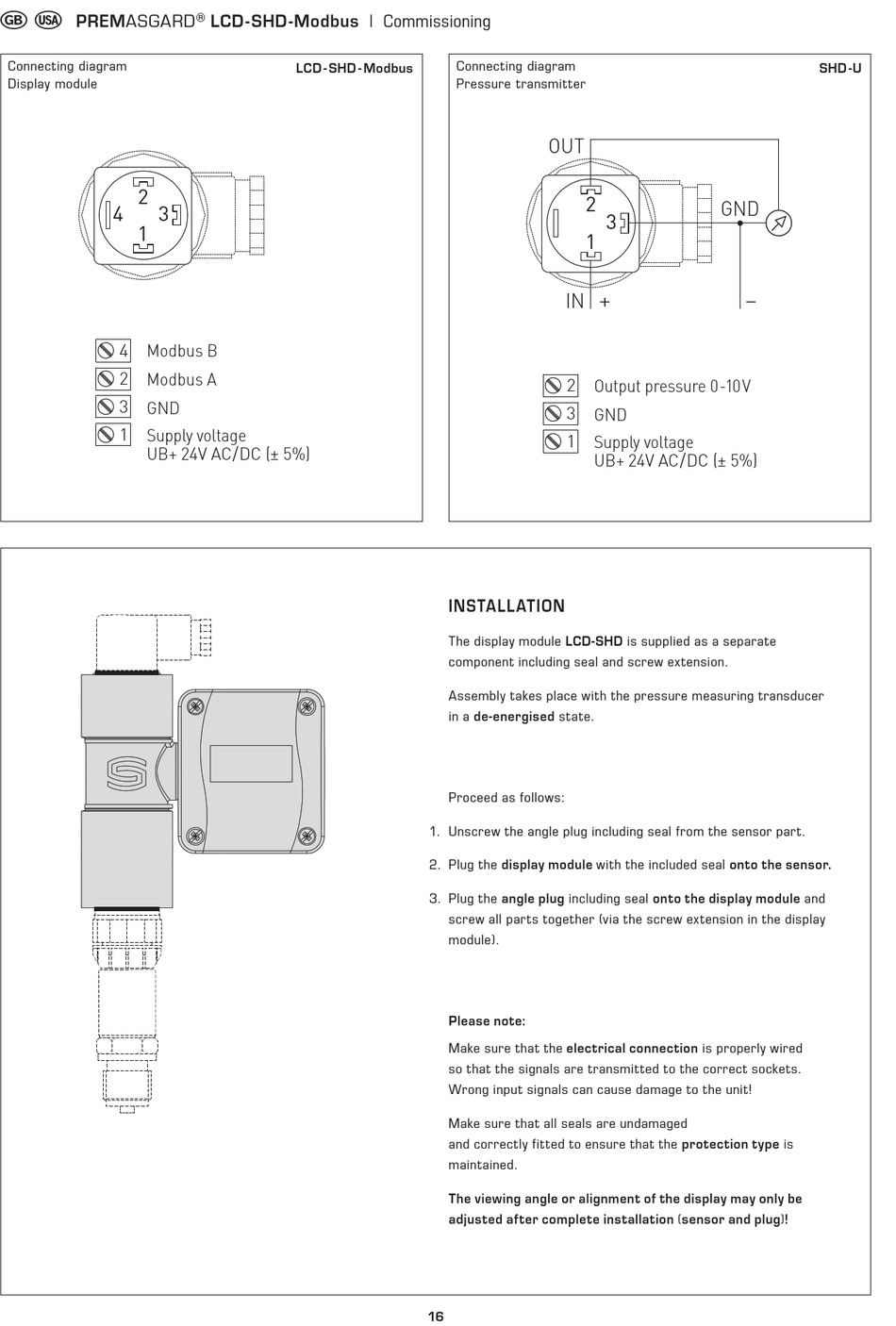

Connecting diagram
Display module
2
4 3
1
4 Modbus B
2
Modbus A
3
GND
1 Supply voltage
UB+ 24V AC/DC (± 5%)
®
LCD - SHD -Modbus | Commissioning
LCD - SHD - Modbus
2
Ausgang Druck 0-10V
3
GND
1
Versorgungsspannung
UB+ 24V AC/DC (± 5%)
4
Connecting diagram
Pressure transmitter
OUT
2
3
1
INSTALL ATION
The display module LCD-SHD is supplied as a separate
component including seal and screw extension.
Assembly takes place with the pressure measuring transducer
in a de-energised state.
Proceed as follows:
1. Unscrew the angle plug including seal from the sensor part.
2. Plug the display module with the included seal onto the sensor.
3. Plug the angle plug including seal onto the display module and
screw all parts together (via the screw extension in the display
module).
Please note:
Make sure that the electrical connection is properly wired
so that the signals are transmitted to the correct sockets.
Wrong input signals can cause damage to the unit!
Make sure that all seals are undamaged
and correctly fitted to ensure that the protection type is
maintained.
The viewing angle or alignment of the display may only be
adjusted after complete installation (sensor and plug)!
16
2
GND
3
1
+
IN
2 Output pressure 0-10V
3
GND
1 Supply voltage
UB+ 24V AC/DC (± 5%)
SHD -U
–
OUT
2
3
1
+
IN
