PREMASGARD

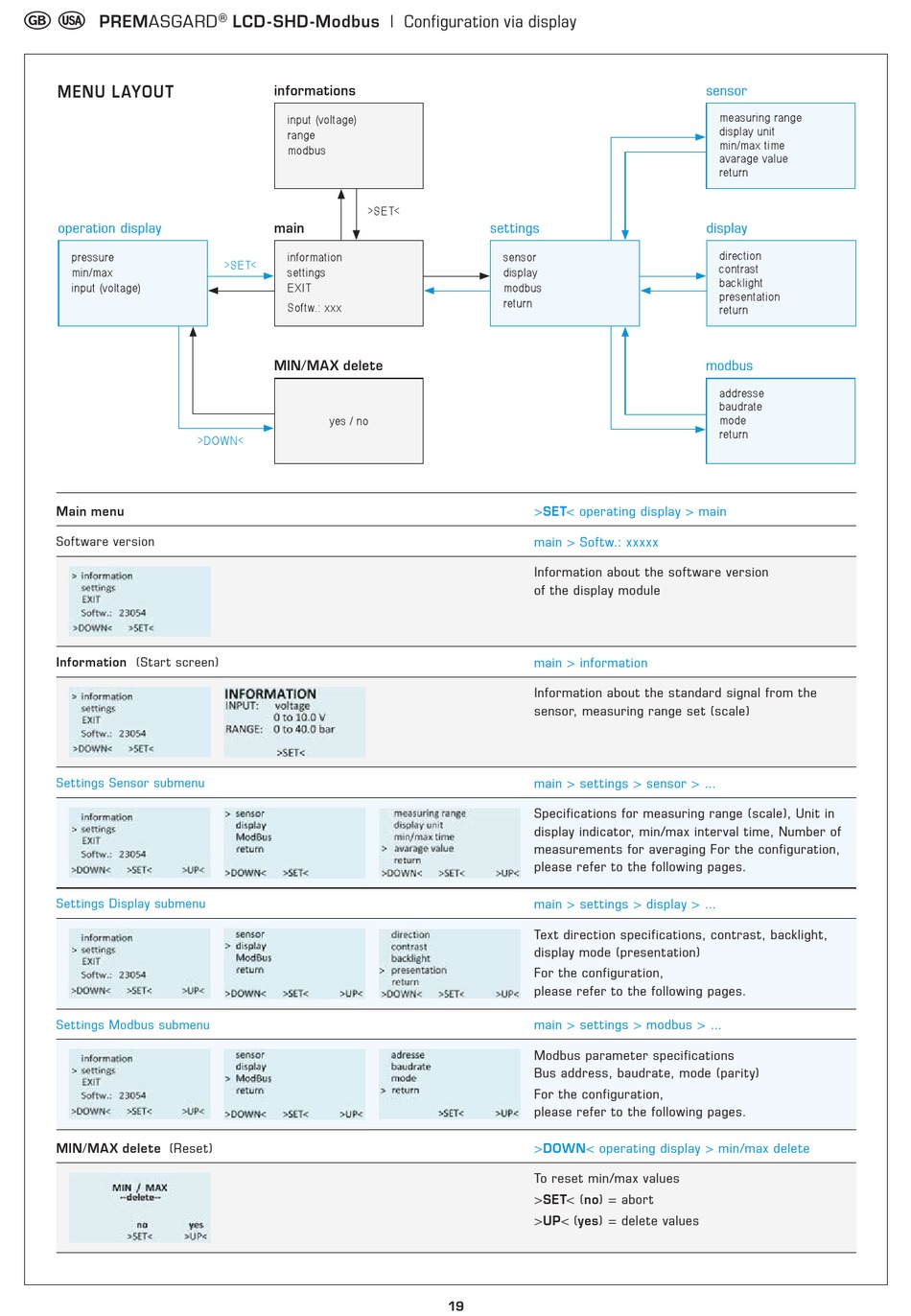

MENU L AYOUT

operation display
pressure
min/max
input (voltage)
Main menu
Software version
Information (Start screen)
Settings Sensor submenu
Settings Display submenu
Settings Modbus submenu
MIN/MAX delete (Reset)
®
LCD - SHD -Modbus | Configuration via display
informations
input (voltage)
range
modbus
>SET<
main
information
>SET<
settings
EXIT
Softw.: xxx
MIN/MAX delete
yes / no
>DOWN<
settings
sensor
display
modbus
return
>SET< operating display > main
main > Softw.: xxxxx
Information about the software version
of the display module
main > information
Information about the standard signal from the
sensor, measuring range set (scale)
main > settings > sensor > ...
Specifications for measuring range (scale), Unit in
display indicator, min/max interval time, Number of
measurements for averaging For the configuration,
please refer to the following pages.
main > settings > display > ...
Text direction specifications, contrast, backlight,
display mode (presentation)
For the configuration,
please refer to the following pages.
main > settings > modbus > ...
Modbus parameter specifications
Bus address, baudrate, mode (parity)
For the configuration,
please refer to the following pages.
>DOWN< operating display > min/max delete
To reset min/max values
>SET< (no) = abort
>UP< (yes) = delete values
19
sensor
measuring range
display unit
min/max time
avarage value
return
display
direction
contrast
backlight
presentation
return
modbus
addresse
baudrate
mode
return
