PREMASGARD
Settings Sensor submenu
RANGE UNIT
RANGE
>UP< to free appears and confirm
with >SET<.
Select values via >UP< / >DOWN<
(active value is underlined)
and confirm with >SET<.
DISPLAY UNIT
MIN/MAX TIME
AVERAGE VALUE

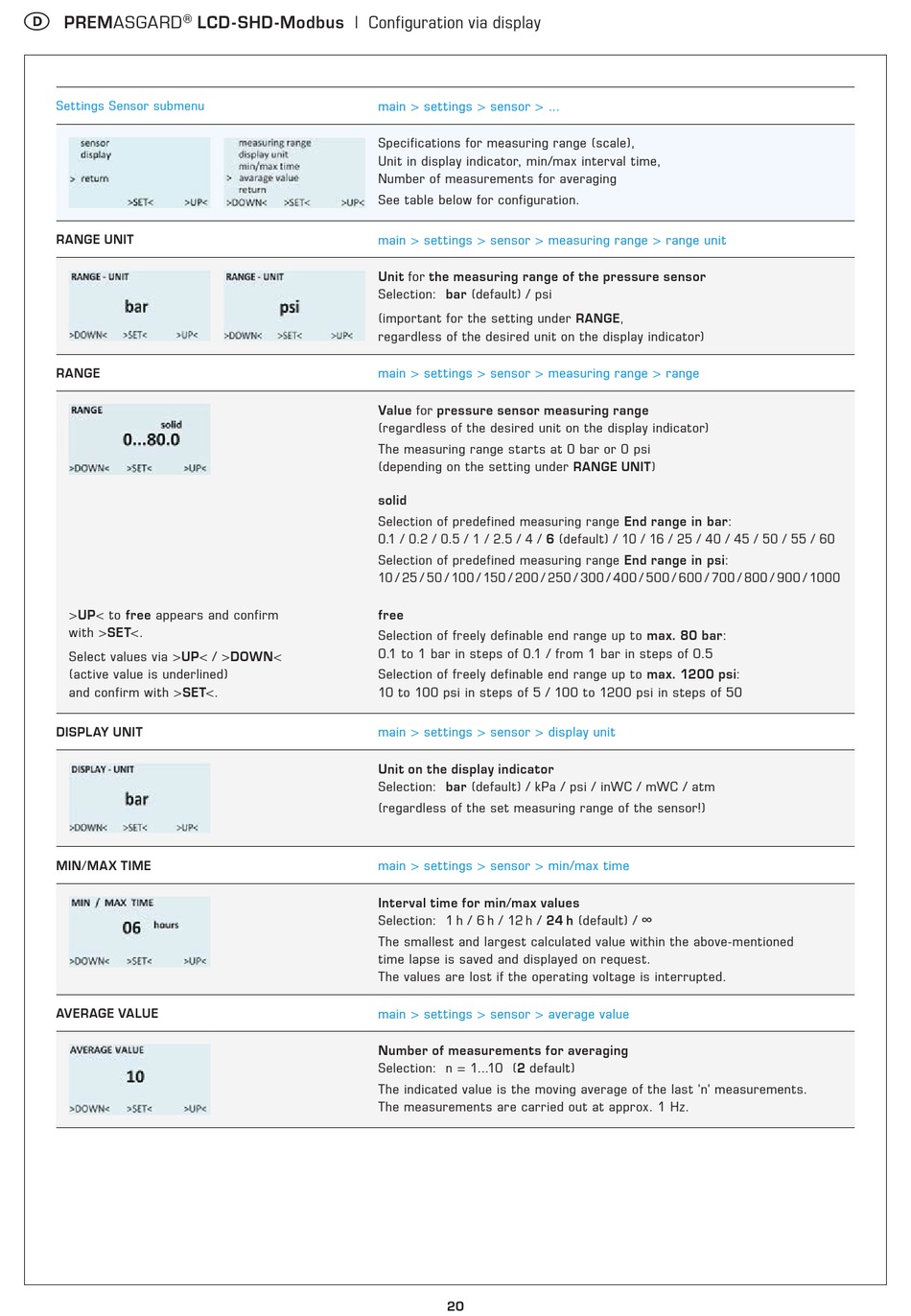

LCD - SHD -Modbus | Configuration via display
main > settings > sensor > ...
Specifications for measuring range (scale),
Unit in display indicator, min/max interval time,
Number of measurements for averaging
See table below for configuration.
main > settings > sensor > measuring range > range unit
Unit for the measuring range of the pressure sensor
Selection: bar (default) / psi
(important for the setting under RANGE,
regardless of the desired unit on the display indicator)
main > settings > sensor > measuring range > range
Value for pressure sensor measuring range
(regardless of the desired unit on the display indicator)
The measuring range starts at 0 bar or 0 psi
(depending on the setting under RANGE UNIT)
solid
Selection of predefined measuring range End range in bar:
0.1 / 0.2 / 0.5 / 1 / 2.5 / 4 / 6 (default) / 10 / 16 / 25 / 40 / 45 / 50 / 55 / 60
Selection of predefined measuring range End range in psi:
10 / 25 / 50 / 100 / 150 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800 / 900 / 1000
free
Selection of freely definable end range up to max. 80 bar:
0.1 to 1 bar in steps of 0.1 / from 1 bar in steps of 0.5
Selection of freely definable end range up to max. 1200 psi:
10 to 100 psi in steps of 5 / 100 to 1200 psi in steps of 50
main > settings > sensor > display unit
Unit on the display indicator
Selection: bar (default) / kPa / psi / inWC / mWC / atm
(regardless of the set measuring range of the sensor!)
main > settings > sensor > min/max time
Interval time for min/max values
Selection: 1 h / 6 h / 12 h / 24 h (default) / ∞
The smallest and largest calculated value within the above-mentioned
time lapse is saved and displayed on request.
The values are lost if the operating voltage is interrupted.
main > settings > sensor > average value
Number of measurements for averaging
Selection: n = 1...10 (2 default)
The indicated value is the moving average of the last 'n' measurements.
The measurements are carried out at approx. 1 Hz.
