PREMASGARD
Settings Modbus submenu
ADDRESS
BAUDRATE
MODE
®

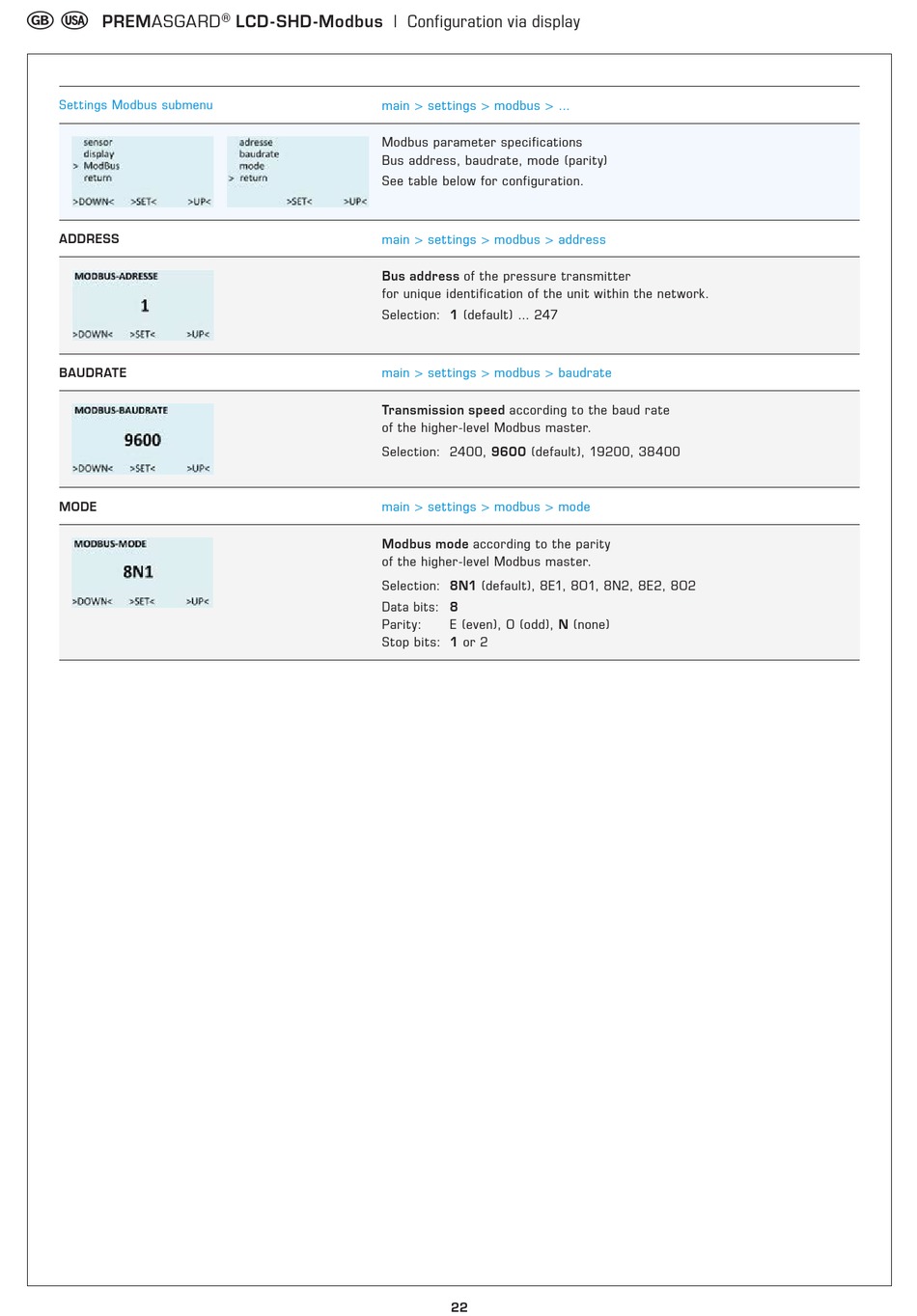

LCD - SHD -Modbus | Configuration via display
main > settings > modbus > ...
Modbus parameter specifications
Bus address, baudrate, mode (parity)
See table below for configuration.
main > settings > modbus > address
Bus address of the pressure transmitter
for unique identification of the unit within the network.
Selection: 1 (default) ... 247
main > settings > modbus > baudrate
Transmission speed according to the baud rate
of the higher-level Modbus master.
Selection: 2400, 9600 (default), 19200, 38400
main > settings > modbus > mode
Modbus mode according to the parity
of the higher-level Modbus master.
Selection: 8N1 (default), 8E1, 8O1, 8N2, 8E2, 8O2
Data bits: 8
Parity:
Stop bits: 1 or 2
E (even), O (odd), N (none)
