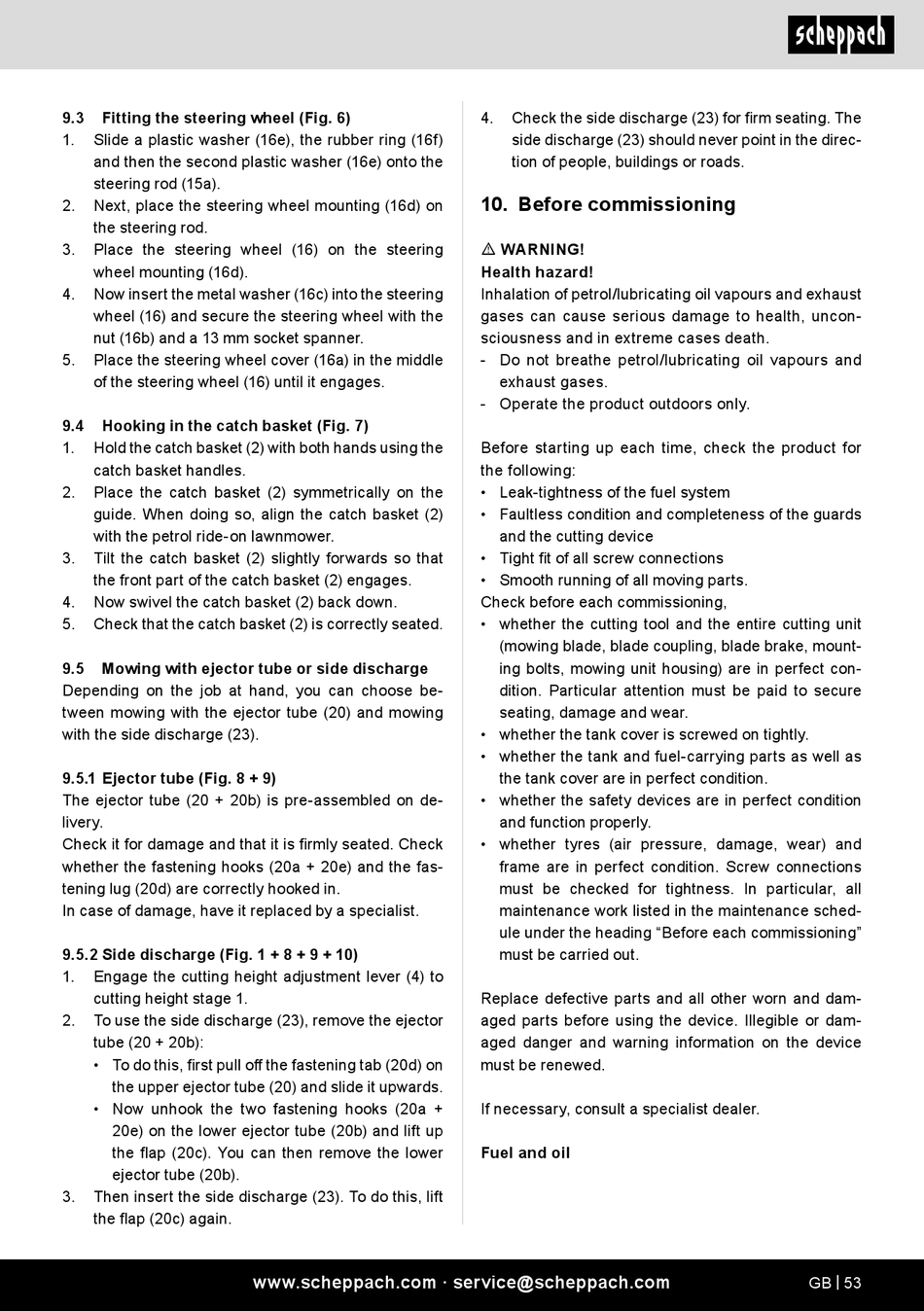

9.3
Fitting the steering wheel (Fig. 6)
1.
Slide a plastic washer (16e), the rubber ring (16f)
and then the second plastic washer (16e) onto the
steering rod (15a).
2.
Next, place the steering wheel mounting (16d) on
the steering rod.
3.
Place the steering wheel (16) on the steering
wheel mounting (16d).
4.
Now insert the metal washer (16c) into the steering
wheel (16) and secure the steering wheel with the
nut (16b) and a 13 mm socket spanner.
5.
Place the steering wheel cover (16a) in the middle
of the steering wheel (16) until it engages.
9.4
Hooking in the catch basket (Fig. 7)
1.
Hold the catch basket (2) with both hands using the
catch basket handles.
2.
Place the catch basket (2) symmetrically on the
guide. When doing so, align the catch basket (2)
with the petrol ride-on lawnmower.
3.
Tilt the catch basket (2) slightly forwards so that
the front part of the catch basket (2) engages.
4.
Now swivel the catch basket (2) back down.
5.
Check that the catch basket (2) is correctly seated.
9.5
Mowing with ejector tube or side discharge
Depending on the job at hand, you can choose be-
tween mowing with the ejector tube (20) and mowing
with the side discharge (23).
9.5.1 Ejector tube (Fig. 8 + 9)
The ejector tube (20 + 20b) is pre-assembled on de-
livery.
Check it for damage and that it is firmly seated. Check
whether the fastening hooks (20a + 20e) and the fas-
tening lug (20d) are correctly hooked in.
In case of damage, have it replaced by a specialist.
9.5.2 Side discharge (Fig. 1 + 8 + 9 + 10)
1.
Engage the cutting height adjustment lever (4) to
cutting height stage 1.
2.
To use the side discharge (23), remove the ejector
tube (20 + 20b):
• To do this, first pull off the fastening tab (20d) on
the upper ejector tube (20) and slide it upwards.
• Now unhook the two fastening hooks (20a +
20e) on the lower ejector tube (20b) and lift up
the flap (20c). You can then remove the lower
ejector tube (20b).
3.
Then insert the side discharge (23). To do this, lift
the flap (20c) again.
www.scheppach.com · service@scheppach.com
4.
Check the side discharge (23) for firm seating. The
side discharge (23) should never point in the direc-
tion of people, buildings or roads.
10. Before commissioning
m WARNING!
Health hazard!
Inhalation of petrol/lubricating oil vapours and exhaust
gases can cause serious damage to health, uncon-
sciousness and in extreme cases death.
- Do not breathe petrol/lubricating oil vapours and
exhaust gases.
- Operate the product outdoors only.
Before starting up each time, check the product for
the following:
• Leak-tightness of the fuel system
• Faultless condition and completeness of the guards
and the cutting device
• Tight fit of all screw connections
• Smooth running of all moving parts.
Check before each commissioning,
• whether the cutting tool and the entire cutting unit
(mowing blade, blade coupling, blade brake, mount-
ing bolts, mowing unit housing) are in perfect con-
dition. Particular attention must be paid to secure
seating, damage and wear.
• whether the tank cover is screwed on tightly.
• whether the tank and fuel-carrying parts as well as
the tank cover are in perfect condition.
• whether the safety devices are in perfect condition
and function properly.
• whether tyres (air pressure, damage, wear) and
frame are in perfect condition. Screw connections
must be checked for tightness. In particular, all
maintenance work listed in the maintenance sched-
ule under the heading "Before each commissioning"
must be carried out.
Replace defective parts and all other worn and dam-
aged parts before using the device. Illegible or dam-
aged danger and warning information on the device
must be renewed.
If necessary, consult a specialist dealer.
Fuel and oil
