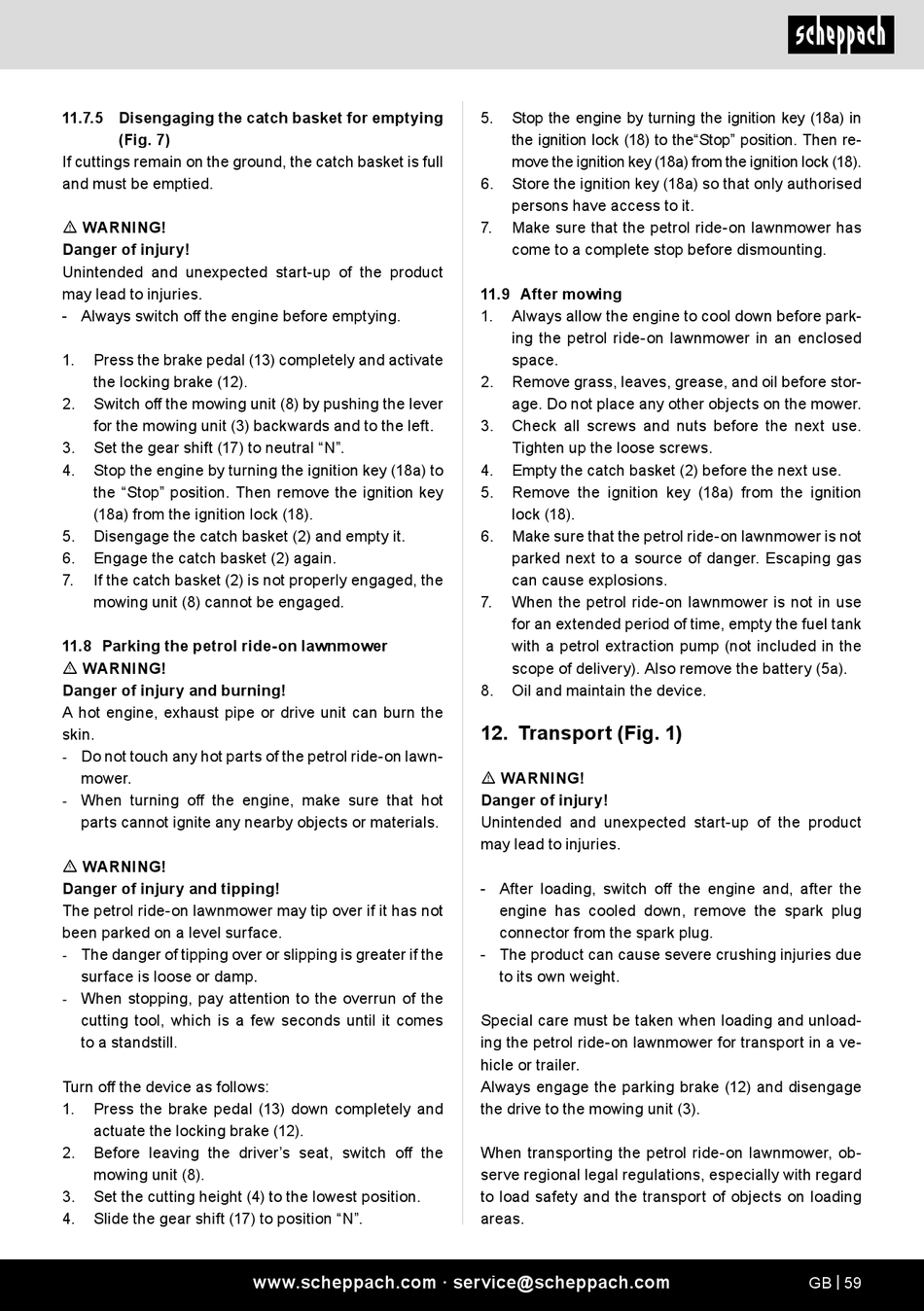

11.7.5 Disengaging the catch basket for emptying
(Fig. 7)
If cuttings remain on the ground, the catch basket is full
and must be emptied.
m WARNING!
Danger of injury!
Unintended and unexpected start-up of the product
may lead to injuries.
- Always switch off the engine before emptying.
1.
Press the brake pedal (13) completely and activate
the locking brake (12).
2.
Switch off the mowing unit (8) by pushing the lever
for the mowing unit (3) backwards and to the left.
3.
Set the gear shift (17) to neutral "N".
4.
Stop the engine by turning the ignition key (18a) to
the "Stop" position. Then remove the ignition key
(18a) from the ignition lock (18).
5.
Disengage the catch basket (2) and empty it.
6.
Engage the catch basket (2) again.
7.
If the catch basket (2) is not properly engaged, the
mowing unit (8) cannot be engaged.
11.8 Parking the petrol ride-on lawnmower
c WARNING!
Danger of injury and burning!
A hot engine, exhaust pipe or drive unit can burn the
skin.
- Do not touch any hot parts of the petrol ride-on lawn-
mower.
- When turning off the engine, make sure that hot
parts cannot ignite any nearby objects or materials.
c WARNING!
Danger of injury and tipping!
The petrol ride-on lawnmower may tip over if it has not
been parked on a level surface.
- The danger of tipping over or slipping is greater if the
surface is loose or damp.
- When stopping, pay attention to the overrun of the
cutting tool, which is a few seconds until it comes
to a standstill.
Turn off the device as follows:
1.
Press the brake pedal (13) down completely and
actuate the locking brake (12).
2.
Before leaving the driver's seat, switch off the
mowing unit (8).
3.
Set the cutting height (4) to the lowest position.
4.
Slide the gear shift (17) to position "N".
www.scheppach.com · service@scheppach.com
5.
Stop the engine by turning the ignition key (18a) in
the ignition lock (18) to the"Stop" position. Then re-
move the ignition key (18a) from the ignition lock (18).
6.
Store the ignition key (18a) so that only authorised
persons have access to it.
7.
Make sure that the petrol ride-on lawnmower has
come to a complete stop before dismounting.
11.9 After mowing
1.
Always allow the engine to cool down before park-
ing the petrol ride-on lawnmower in an enclosed
space.
2.
Remove grass, leaves, grease, and oil before stor-
age. Do not place any other objects on the mower.
3.
Check all screws and nuts before the next use.
Tighten up the loose screws.
4.
Empty the catch basket (2) before the next use.
5.
Remove the ignition key (18a) from the ignition
lock (18).
6.
Make sure that the petrol ride-on lawnmower is not
parked next to a source of danger. Escaping gas
can cause explosions.
7.
When the petrol ride-on lawnmower is not in use
for an extended period of time, empty the fuel tank
with a petrol extraction pump (not included in the
scope of delivery). Also remove the battery (5a).
8.
Oil and maintain the device.
12. Transport (Fig. 1)
m WARNING!
Danger of injury!
Unintended and unexpected start-up of the product
may lead to injuries.
- After loading, switch off the engine and, after the
engine has cooled down, remove the spark plug
connector from the spark plug.
- The product can cause severe crushing injuries due
to its own weight.
Special care must be taken when loading and unload-
ing the petrol ride-on lawnmower for transport in a ve-
hicle or trailer.
Always engage the parking brake (12) and disengage
the drive to the mowing unit (3).
When transporting the petrol ride-on lawnmower, ob-
serve regional legal regulations, especially with regard
to load safety and the transport of objects on loading
areas.
GB | 59
