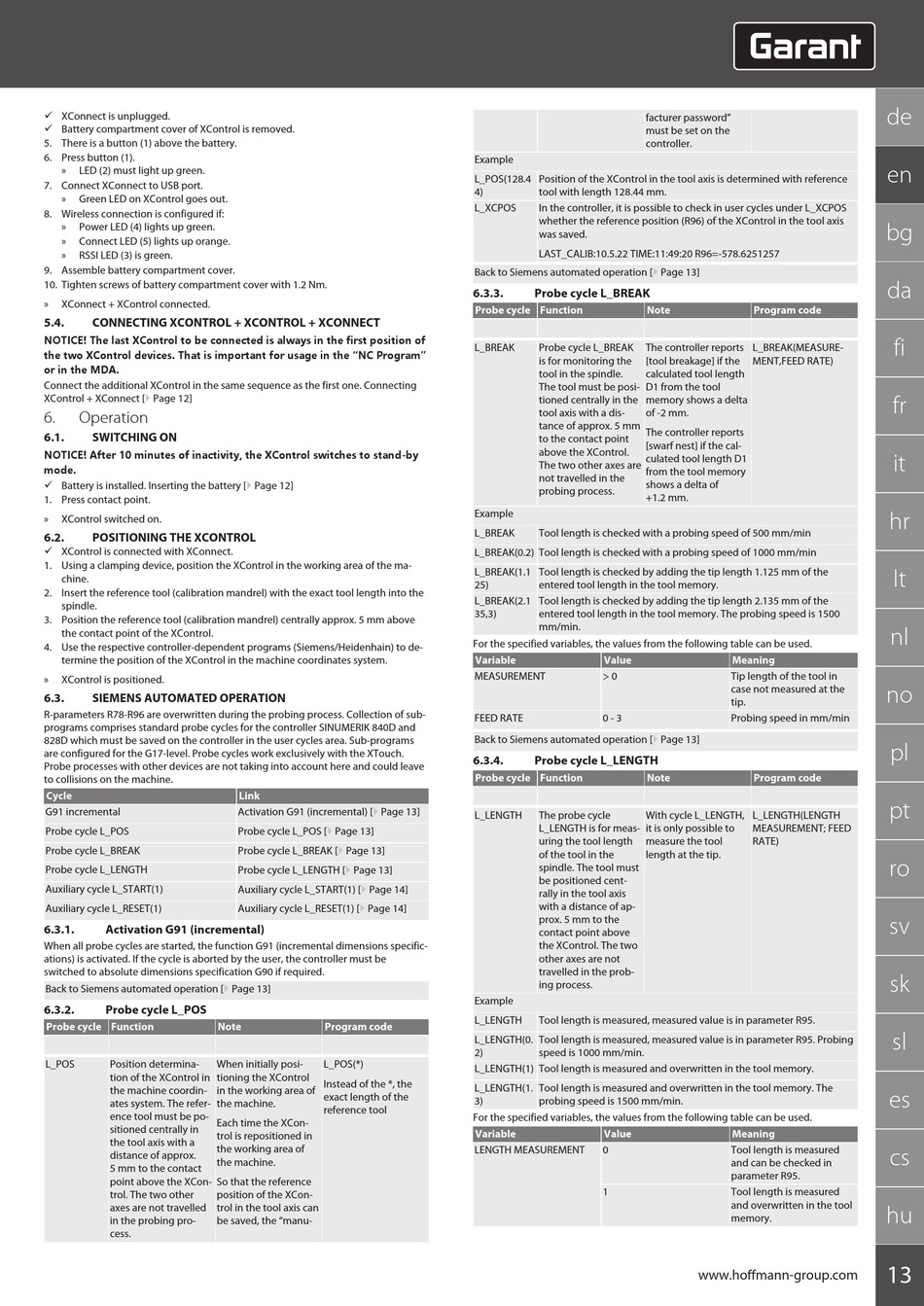

ü XConnect is unplugged.
ü Battery compartment cover of XControl is removed.
5. There is a button (1) above the battery.
6. Press button (1).
» LED (2) must light up green.
7. Connect XConnect to USB port.
» Green LED on XControl goes out.
8. Wireless connection is configured if:
» Power LED (4) lights up green.
» Connect LED (5) lights up orange.
» RSSI LED (3) is green.
9. Assemble battery compartment cover.
10. Tighten screws of battery compartment cover with 1.2 Nm.
» XConnect + XControl connected.
5.4. CONNECTING XCONTROL + XCONTROL + XCONNECT
NOTICE! The last XControl to be connected is always in the first position of
the two XControl devices. That is important for usage in the "NC Program"
or in the MDA.
Connect the additional XControl in the same sequence as the first one. Connecting
XControl + XConnect [} Page 12]
6. Operation
6.1. SWITCHING ON
NOTICE! After 10 minutes of inactivity, the XControl switches to stand-by
mode.
ü Battery is installed. Inserting the battery [} Page 12]
1. Press contact point.
» XControl switched on.
6.2. POSITIONING THE XCONTROL
ü XControl is connected with XConnect.
1. Using a clamping device, position the XControl in the working area of the ma-
chine.
2. Insert the reference tool (calibration mandrel) with the exact tool length into the
spindle.
3. Position the reference tool (calibration mandrel) centrally approx. 5 mm above
the contact point of the XControl.
4. Use the respective controller-dependent programs (Siemens/Heidenhain) to de-
termine the position of the XControl in the machine coordinates system.
» XControl is positioned.
6.3. SIEMENS AUTOMATED OPERATION
R-parameters R78-R96 are overwritten during the probing process. Collection of sub-
programs comprises standard probe cycles for the controller SINUMERIK 840D and
828D which must be saved on the controller in the user cycles area. Sub-programs
are configured for the G17-level. Probe cycles work exclusively with the XTouch.
Probe processes with other devices are not taking into account here and could leave
to collisions on the machine.
Cycle
G91 incremental
Probe cycle L_POS
Probe cycle L_BREAK
Probe cycle L_LENGTH
Auxiliary cycle L_START(1)
Auxiliary cycle L_RESET(1)
6.3.1. Activation G91 (incremental)
When all probe cycles are started, the function G91 (incremental dimensions specific-
ations) is activated. If the cycle is aborted by the user, the controller must be
switched to absolute dimensions specification G90 if required.
Back to Siemens automated operation [} Page 13]
6.3.2. Probe cycle L_POS
Probe cycle Function Note
L_POS Position determina- When initially posi-
tion of the XControl in tioning the XControl
the machine coordin- in the working area of
ates system. The refer- the machine.
ence tool must be po-
Each time the XCon-
sitioned centrally in
trol is repositioned in
the tool axis with a
the working area of
distance of approx.
the machine.
5 mm to the contact
point above the XCon-
So that the reference
trol. The two other position of the XCon-
axes are not travelled trol in the tool axis can
in the probing pro- be saved, the "manu-
cess.
Link
Activation G91 (incremental) [} Page 13]
Probe cycle L_POS [} Page 13]
Probe cycle L_BREAK [} Page 13]
Probe cycle L_LENGTH [} Page 13]
Auxiliary cycle L_START(1) [} Page 14]
Auxiliary cycle L_RESET(1) [} Page 14]
Program code
L_POS(*)
Instead of the *, the
exact length of the
reference tool
facturer password"
must be set on the
controller.
Example
L_POS(128.4 Position of the XControl in the tool axis is determined with reference
4) tool with length 128.44 mm.
L_XCPOS In the controller, it is possible to check in user cycles under L_XCPOS
whether the reference position (R96) of the XControl in the tool axis
was saved.
LAST_CALIB:10.5.22 TIME:11:49:20 R96=-578.6251257
Back to Siemens automated operation [} Page 13]
6.3.3. Probe cycle L_BREAK
Probe cycle Function Note
L_BREAK Probe cycle L_BREAK The controller reports
is for monitoring the [tool breakage] if the
tool in the spindle. calculated tool length
The tool must be posi- D1 from the tool
tioned centrally in the memory shows a delta
tool axis with a dis- of -2 mm.
tance of approx. 5 mm
The controller reports
to the contact point
[swarf nest] if the cal-
above the XControl.
culated tool length D1
The two other axes are
from the tool memory
not travelled in the
shows a delta of
probing process.
+1.2 mm.
Example
L_BREAK Tool length is checked with a probing speed of 500 mm/min
L_BREAK(0.2) Tool length is checked with a probing speed of 1000 mm/min
L_BREAK(1.1 Tool length is checked by adding the tip length 1.125 mm of the
25) entered tool length in the tool memory.
L_BREAK(2.1 Tool length is checked by adding the tip length 2.135 mm of the
35,3) entered tool length in the tool memory. The probing speed is 1500
mm/min.
For the specified variables, the values from the following table can be used.
Variable Value
MEASUREMENT > 0
FEED RATE 0 - 3
Back to Siemens automated operation [} Page 13]
6.3.4. Probe cycle L_LENGTH
Probe cycle Function Note
L_LENGTH The probe cycle With cycle L_LENGTH,
L_LENGTH is for meas- it is only possible to
uring the tool length measure the tool
of the tool in the length at the tip.
spindle. The tool must
be positioned cent-
rally in the tool axis
with a distance of ap-
prox. 5 mm to the
contact point above
the XControl. The two
other axes are not
travelled in the prob-
ing process.
Example
L_LENGTH Tool length is measured, measured value is in parameter R95.
L_LENGTH(0. Tool length is measured, measured value is in parameter R95. Probing
2) speed is 1000 mm/min.
L_LENGTH(1) Tool length is measured and overwritten in the tool memory.
L_LENGTH(1. Tool length is measured and overwritten in the tool memory. The
3) probing speed is 1500 mm/min.
For the specified variables, the values from the following table can be used.
Variable Value
LENGTH MEASUREMENT 0
1
Program code
L_BREAK(MEASURE-
MENT,FEED RATE)
Meaning
Tip length of the tool in
case not measured at the
tip.
Probing speed in mm/min
Program code
L_LENGTH(LENGTH
MEASUREMENT; FEED
RATE)
Meaning
Tool length is measured
and can be checked in
parameter R95.
Tool length is measured
and overwritten in the tool
memory.
