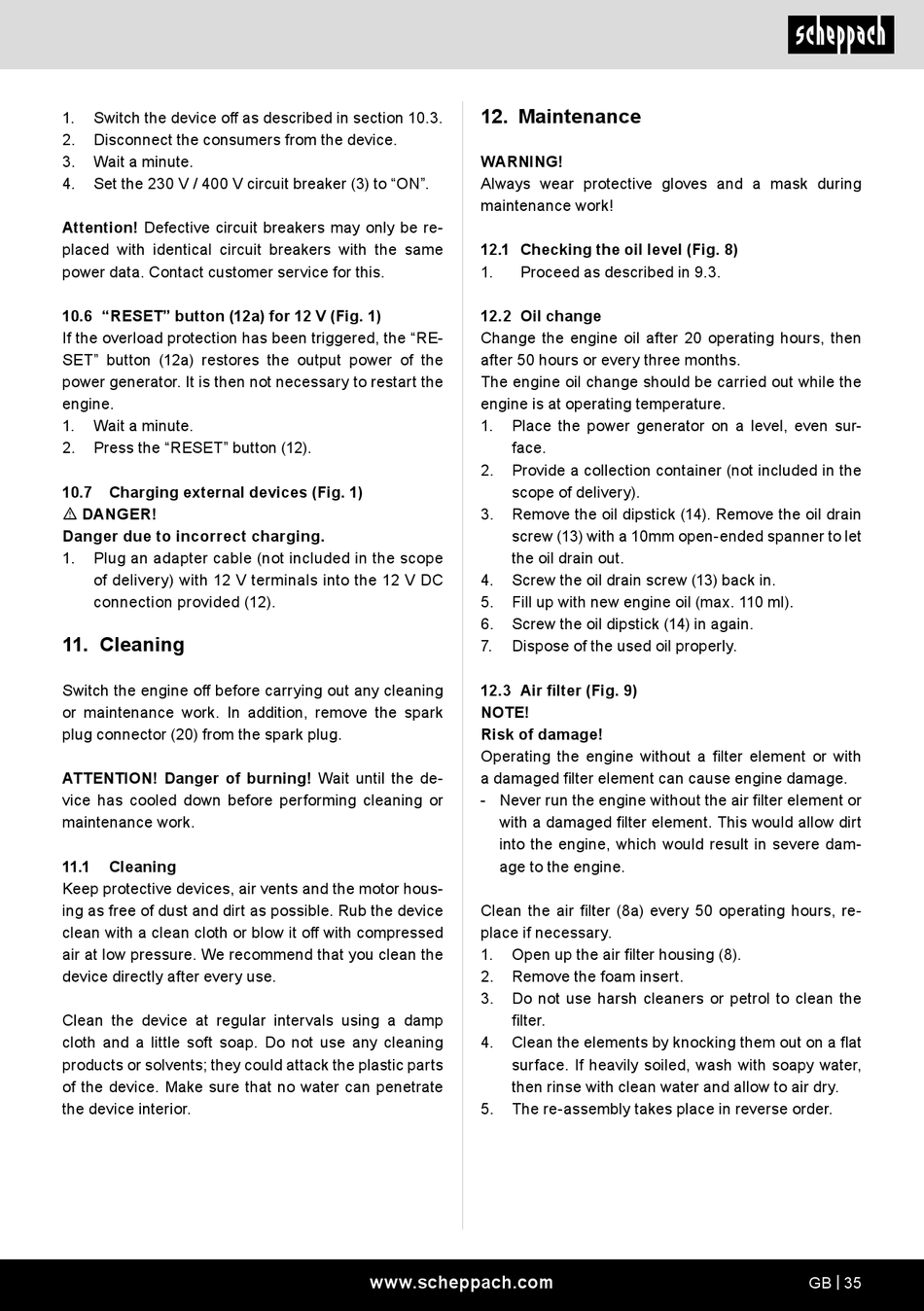

1. Switch the device off as described in section 10.3.
2. Disconnect the consumers from the device.
3. Wait a minute.
4. Set the 230 V / 400 V circuit breaker (3) to "ON".
Attention! Defective circuit breakers may only be re-
placed with identical circuit breakers with the same
power data. Contact customer service for this.
10.6 "RESET" button (12a) for 12 V (Fig. 1)
If the overload protection has been triggered, the "RE-
SET" button (12a) restores the output power of the
power generator. It is then not necessary to restart the
engine.
1. Wait a minute.
2. Press the "RESET" button (12).
10.7 Charging external devices (Fig. 1)
m DANGER!
Danger due to incorrect charging.
1. Plug an adapter cable (not included in the scope
of delivery) with 12 V terminals into the 12 V DC
connection provided (12).
11. Cleaning
Switch the engine off before carrying out any cleaning
or maintenance work. In addition, remove the spark
plug connector (20) from the spark plug.
ATTENTION! Danger of burning! Wait until the de-
vice has cooled down before performing cleaning or
maintenance work.
11.1 Cleaning
Keep protective devices, air vents and the motor hous-
ing as free of dust and dirt as possible. Rub the device
clean with a clean cloth or blow it off with compressed
air at low pressure. We recommend that you clean the
device directly after every use.
Clean the device at regular intervals using a damp
cloth and a little soft soap. Do not use any cleaning
products or solvents; they could attack the plastic parts
of the device. Make sure that no water can penetrate
the device interior.
12. Maintenance
WARNING!
Always wear protective gloves and a mask during
maintenance work!
12.1 Checking the oil level (Fig. 8)
1. Proceed as described in 9.3.
12.2 Oil change
Change the engine oil after 20 operating hours, then
after 50 hours or every three months.
The engine oil change should be carried out while the
engine is at operating temperature.
1. Place the power generator on a level, even sur-
face.
2. Provide a collection container (not included in the
scope of delivery).
3. Remove the oil dipstick (14). Remove the oil drain
screw (13) with a 10mm open-ended spanner to let
the oil drain out.
4. Screw the oil drain screw (13) back in.
5. Fill up with new engine oil (max. 110 ml).
6. Screw the oil dipstick (14) in again.
7. Dispose of the used oil properly.
12.3 Air filter (Fig. 9)
NOTE!
Risk of damage!
Operating the engine without a filter element or with
a damaged filter element can cause engine damage.
- Never run the engine without the air filter element or
with a damaged filter element. This would allow dirt
into the engine, which would result in severe dam-
age to the engine.
Clean the air filter (8a) every 50 operating hours, re-
place if necessary.
1. Open up the air filter housing (8).
2. Remove the foam insert.
3. Do not use harsh cleaners or petrol to clean the
filter.
4. Clean the elements by knocking them out on a flat
surface. If heavily soiled, wash with soapy water,
then rinse with clean water and allow to air dry.
5. The re-assembly takes place in reverse order.
