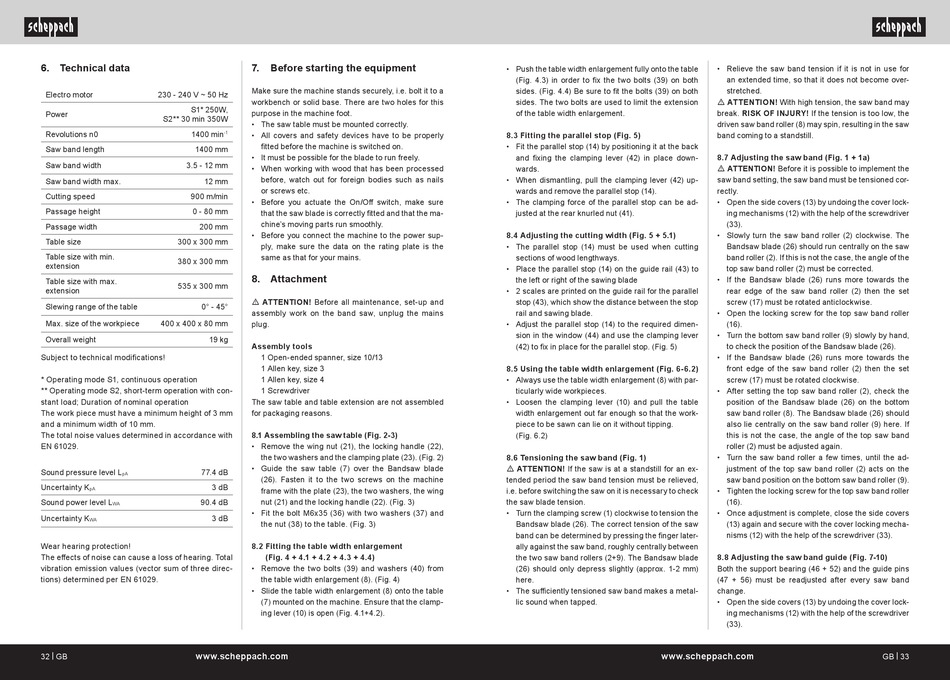

Scheppach HBS30 Original Bedienungsanleitung Seite 17

6. Technical data
Electro motor 230 - 240 V ~ 50 Hz
S1* 250W,
Power
S2** 30 min 350W
Revolutions n0 1400 min
Saw band length 1400 mm
Saw band width 3.5 - 12 mm
Saw band width max. 12 mm
Cutting speed 900 m/min
Passage height 0 - 80 mm
Passage width 200 mm
Table size 300 x 300 mm
Table size with min.
380 x 300 mm
extension
Table size with max.
535 x 300 mm
extension
Slewing range of the table 0° - 45°
Max. size of the workpiece 400 x 400 x 80 mm
Overall weight 19 kg
Subject to technical modifications!
* Operating mode S1, continuous operation
** Operating mode S2, short-term operation with con-
stant load; Duration of nominal operation
The work piece must have a minimum height of 3 mm
and a minimum width of 10 mm.
The total noise values determined in accordance with
EN 61029.
Sound pressure level L 77.4 dB
pA
Uncertainty K 3 dB
pA
Sound power level L 90.4 dB
WA
Uncertainty K 3 dB
WA
Wear hearing protection!
The effects of noise can cause a loss of hearing. Total
vibration emission values (vector sum of three direc-
tions) determined per EN 61029.
32 | GB www.scheppach.com
7. Before starting the equipment
Make sure the machine stands securely, i.e. bolt it to a
workbench or solid base. There are two holes for this
purpose in the machine foot.
• The saw table must be mounted correctly.
-1
• All covers and safety devices have to be properly
fitted before the machine is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails
or screws etc.
• Before you actuate the On/Off switch, make sure
that the saw blade is correctly fitted and that the ma-
chine's moving parts run smoothly.
• Before you connect the machine to the power sup-
ply, make sure the data on the rating plate is the
same as that for your mains.
8. Attachment
m ATTENTION! Before all maintenance, set-up and
assembly work on the band saw, unplug the mains
plug.
Assembly tools
1 Open-ended spanner, size 10/13
1 Allen key, size 3
1 Allen key, size 4
1 Screwdriver
The saw table and table extension are not assembled
for packaging reasons.
8.1 Assembling the saw table (Fig. 2-3)
• Remove the wing nut (21), the locking handle (22),
the two washers and the clamping plate (23). (Fig. 2)
• Guide the saw table (7) over the Bandsaw blade
(26). Fasten it to the two screws on the machine
frame with the plate (23), the two washers, the wing
nut (21) and the locking handle (22). (Fig. 3)
• Fit the bolt M6x35 (36) with two washers (37) and
the nut (38) to the table. (Fig. 3)
8.2 Fitting the table width enlargement
(Fig. 4 + 4.1 + 4.2 + 4.3 + 4.4)
• Remove the two bolts (39) and washers (40) from
the table width enlargement (8). (Fig. 4)
• Slide the table width enlargement (8) onto the table
(7) mounted on the machine. Ensure that the clamp-
ing lever (10) is open (Fig. 4.1+4.2).
• Push the table width enlargement fully onto the table
(Fig. 4.3) in order to fix the two bolts (39) on both
sides. (Fig. 4.4) Be sure to fit the bolts (39) on both
sides. The two bolts are used to limit the extension
of the table width enlargement.
8.3 Fitting the parallel stop (Fig. 5)
• Fit the parallel stop (14) by positioning it at the back
and fixing the clamping lever (42) in place down-
wards.
• When dismantling, pull the clamping lever (42) up-
wards and remove the parallel stop (14).
• The clamping force of the parallel stop can be ad-
justed at the rear knurled nut (41).
8.4 Adjusting the cutting width (Fig. 5 + 5.1)
• The parallel stop (14) must be used when cutting
sections of wood lengthways.
• Place the parallel stop (14) on the guide rail (43) to
the left or right of the sawing blade
• 2 scales are printed on the guide rail for the parallel
stop (43), which show the distance between the stop
rail and sawing blade.
• Adjust the parallel stop (14) to the required dimen-
sion in the window (44) and use the clamping lever
(42) to fix in place for the parallel stop. (Fig. 5)
8.5 Using the table width enlargement (Fig. 6-6.2)
• Always use the table width enlargement (8) with par-
ticularly wide workpieces.
• Loosen the clamping lever (10) and pull the table
width enlargement out far enough so that the work-
piece to be sawn can lie on it without tipping.
(Fig. 6.2)
8.6 Tensioning the saw band (Fig. 1)
m ATTENTION! If the saw is at a standstill for an ex-
tended period the saw band tension must be relieved,
i.e. before switching the saw on it is necessary to check
the saw blade tension.
• Turn the clamping screw (1) clockwise to tension the
Bandsaw blade (26). The correct tension of the saw
band can be determined by pressing the finger later-
ally against the saw band, roughly centrally between
the two saw band rollers (2+9). The Bandsaw blade
(26) should only depress slightly (approx. 1-2 mm)
here.
• The sufficiently tensioned saw band makes a metal-
lic sound when tapped.
www.scheppach.com
• Relieve the saw band tension if it is not in use for
an extended time, so that it does not become over-
stretched.
m ATTENTION! With high tension, the saw band may
break. RISK OF INJURY! If the tension is too low, the
driven saw band roller (8) may spin, resulting in the saw
band coming to a standstill.
8.7 Adjusting the saw band (Fig. 1 + 1a)
m ATTENTION! Before it is possible to implement the
saw band setting, the saw band must be tensioned cor-
rectly.
• Open the side covers (13) by undoing the cover lock-
ing mechanisms (12) with the help of the screwdriver
(33).
• Slowly turn the saw band roller (2) clockwise. The
Bandsaw blade (26) should run centrally on the saw
band roller (2). If this is not the case, the angle of the
top saw band roller (2) must be corrected.
• If the Bandsaw blade (26) runs more towards the
rear edge of the saw band roller (2) then the set
screw (17) must be rotated anticlockwise.
• Open the locking screw for the top saw band roller
(16).
• Turn the bottom saw band roller (9) slowly by hand,
to check the position of the Bandsaw blade (26).
• If the Bandsaw blade (26) runs more towards the
front edge of the saw band roller (2) then the set
screw (17) must be rotated clockwise.
• After setting the top saw band roller (2), check the
position of the Bandsaw blade (26) on the bottom
saw band roller (8). The Bandsaw blade (26) should
also lie centrally on the saw band roller (9) here. If
this is not the case, the angle of the top saw band
roller (2) must be adjusted again.
• Turn the saw band roller a few times, until the ad-
justment of the top saw band roller (2) acts on the
saw band position on the bottom saw band roller (9).
• Tighten the locking screw for the top saw band roller
(16).
• Once adjustment is complete, close the side covers
(13) again and secure with the cover locking mecha-
nisms (12) with the help of the screwdriver (33).
8.8 Adjusting the saw band guide (Fig. 7-10)
Both the support bearing (46 + 52) and the guide pins
(47 + 56) must be readjusted after every saw band
change.
• Open the side covers (13) by undoing the cover lock-
ing mechanisms (12) with the help of the screwdriver
(33).
