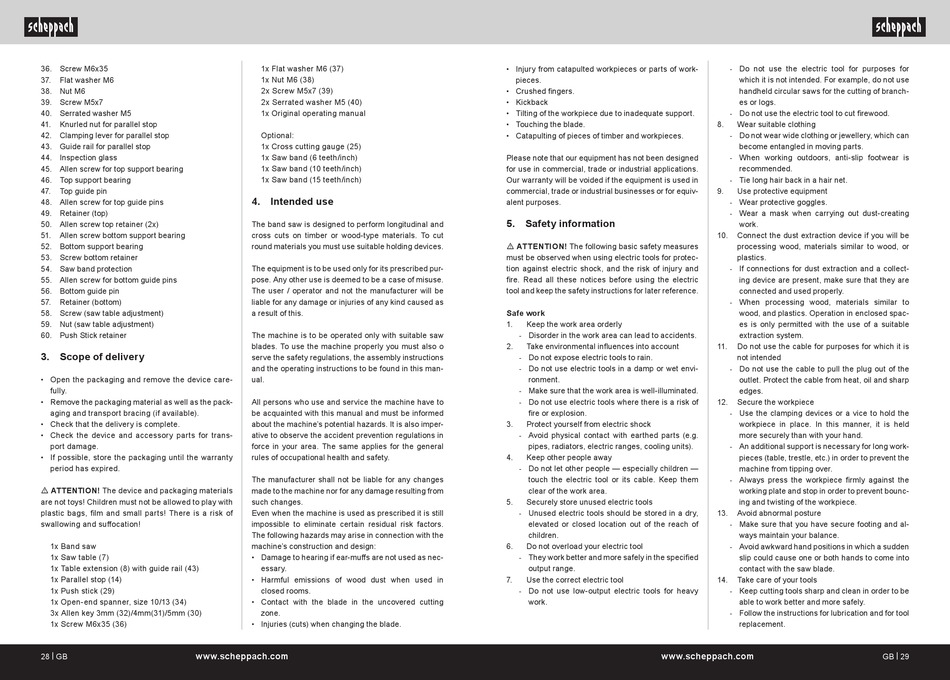

Scheppach HBS30 Original Bedienungsanleitung Seite 15

36. Screw M6x35
37. Flat washer M6
38. Nut M6
39. Screw M5x7
40. Serrated washer M5
41. Knurled nut for parallel stop
42. Clamping lever for parallel stop
43. Guide rail for parallel stop
44. Inspection glass
45. Allen screw for top support bearing
46. Top support bearing
47. Top guide pin
48. Allen screw for top guide pins
49. Retainer (top)
50. Allen screw top retainer (2x)
51. Allen screw bottom support bearing
52. Bottom support bearing
53. Screw bottom retainer
54. Saw band protection
55. Allen screw for bottom guide pins
56. Bottom guide pin
57. Retainer (bottom)
58. Screw (saw table adjustment)
59. Nut (saw table adjustment)
60. Push Stick retainer
3. Scope of delivery
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for trans-
port damage.
• If possible, store the packaging until the warranty
period has expired.
m ATTENTION! The device and packaging materials
are not toys! Children must not be allowed to play with
plastic bags, film and small parts! There is a risk of
swallowing and suffocation!
1x Band saw
1x Saw table (7)
1x Table extension (8) with guide rail (43)
1x Parallel stop (14)
1x Push stick (29)
1x Open-end spanner, size 10/13 (34)
3x Allen key 3mm (32)/4mm(31)/5mm (30)
1x Screw M6x35 (36)
28 | GB www.scheppach.com
1x Flat washer M6 (37)
1x Nut M6 (38)
2x Screw M5x7 (39)
2x Serrated washer M5 (40)
1x Original operating manual
Optional:
1x Cross cutting gauge (25)
1x Saw band (6 teeth/inch)
1x Saw band (10 teeth/inch)
1x Saw band (15 teeth/inch)
4. Intended use
The band saw is designed to perform longitudinal and
cross cuts on timber or wood-type materials. To cut
round materials you must use suitable holding devices.
The equipment is to be used only for its prescribed pur-
pose. Any other use is deemed to be a case of misuse.
The user / operator and not the manufacturer will be
liable for any damage or injuries of any kind caused as
a result of this.
The machine is to be operated only with suitable saw
blades. To use the machine properly you must also o
serve the safety regulations, the assembly instructions
and the operating instructions to be found in this man-
ual.
All persons who use and service the machine have to
be acquainted with this manual and must be informed
about the machine's potential hazards. It is also imper-
ative to observe the accident prevention regulations in
force in your area. The same applies for the general
rules of occupational health and safety.
The manufacturer shall not be liable for any changes
made to the machine nor for any damage resulting from
such changes.
Even when the machine is used as prescribed it is still
impossible to eliminate certain residual risk factors.
The following hazards may arise in connection with the
machine's construction and design:
• Damage to hearing if ear-muffs are not used as nec-
essary.
• Harmful emissions of wood dust when used in
closed rooms.
• Contact with the blade in the uncovered cutting
zone.
• Injuries (cuts) when changing the blade.
• Injury from catapulted workpieces or parts of work-
pieces.
• Crushed fingers.
• Kickback
• Tilting of the workpiece due to inadequate support.
• Touching the blade.
• Catapulting of pieces of timber and workpieces.
Please note that our equipment has not been designed
for use in commercial, trade or industrial applications.
Our warranty will be voided if the equipment is used in
commercial, trade or industrial businesses or for equiv-
alent purposes.
5. Safety information
m ATTENTION! The following basic safety measures
must be observed when using electric tools for protec-
tion against electric shock, and the risk of injury and
fire. Read all these notices before using the electric
tool and keep the safety instructions for later reference.
Safe work
1. Keep the work area orderly
- Disorder in the work area can lead to accidents.
2. Take environmental influences into account
- Do not expose electric tools to rain.
- Do not use electric tools in a damp or wet envi-
ronment.
- Make sure that the work area is well-illuminated.
- Do not use electric tools where there is a risk of
fire or explosion.
3. Protect yourself from electric shock
- Avoid physical contact with earthed parts (e.g.
pipes, radiators, electric ranges, cooling units).
4. Keep other people away
- Do not let other people — especially children —
touch the electric tool or its cable. Keep them
clear of the work area.
5. Securely store unused electric tools
- Unused electric tools should be stored in a dry,
elevated or closed location out of the reach of
children.
6. Do not overload your electric tool
- They work better and more safely in the specified
output range.
7. Use the correct electric tool
- Do not use low-output electric tools for heavy
work.
www.scheppach.com
- Do not use the electric tool for purposes for
which it is not intended. For example, do not use
handheld circular saws for the cutting of branch-
es or logs.
- Do not use the electric tool to cut firewood.
8. Wear suitable clothing
- Do not wear wide clothing or jewellery, which can
become entangled in moving parts.
- When working outdoors, anti-slip footwear is
recommended.
- Tie long hair back in a hair net.
9. Use protective equipment
- Wear protective goggles.
- Wear a mask when carrying out dust-creating
work.
10. Connect the dust extraction device if you will be
processing wood, materials similar to wood, or
plastics.
- If connections for dust extraction and a collect-
ing device are present, make sure that they are
connected and used properly.
- When processing wood, materials similar to
wood, and plastics. Operation in enclosed spac-
es is only permitted with the use of a suitable
extraction system.
11. Do not use the cable for purposes for which it is
not intended
- Do not use the cable to pull the plug out of the
outlet. Protect the cable from heat, oil and sharp
edges.
12. Secure the workpiece
- Use the clamping devices or a vice to hold the
workpiece in place. In this manner, it is held
more securely than with your hand.
- An additional support is necessary for long work-
pieces (table, trestle, etc.) in order to prevent the
machine from tipping over.
- Always press the workpiece firmly against the
working plate and stop in order to prevent bounc-
ing and twisting of the workpiece.
13. Avoid abnormal posture
- Make sure that you have secure footing and al-
ways maintain your balance.
- Avoid awkward hand positions in which a sudden
slip could cause one or both hands to come into
contact with the saw blade.
14. Take care of your tools
- Keep cutting tools sharp and clean in order to be
able to work better and more safely.
- Follow the instructions for lubrication and for tool
replacement.
