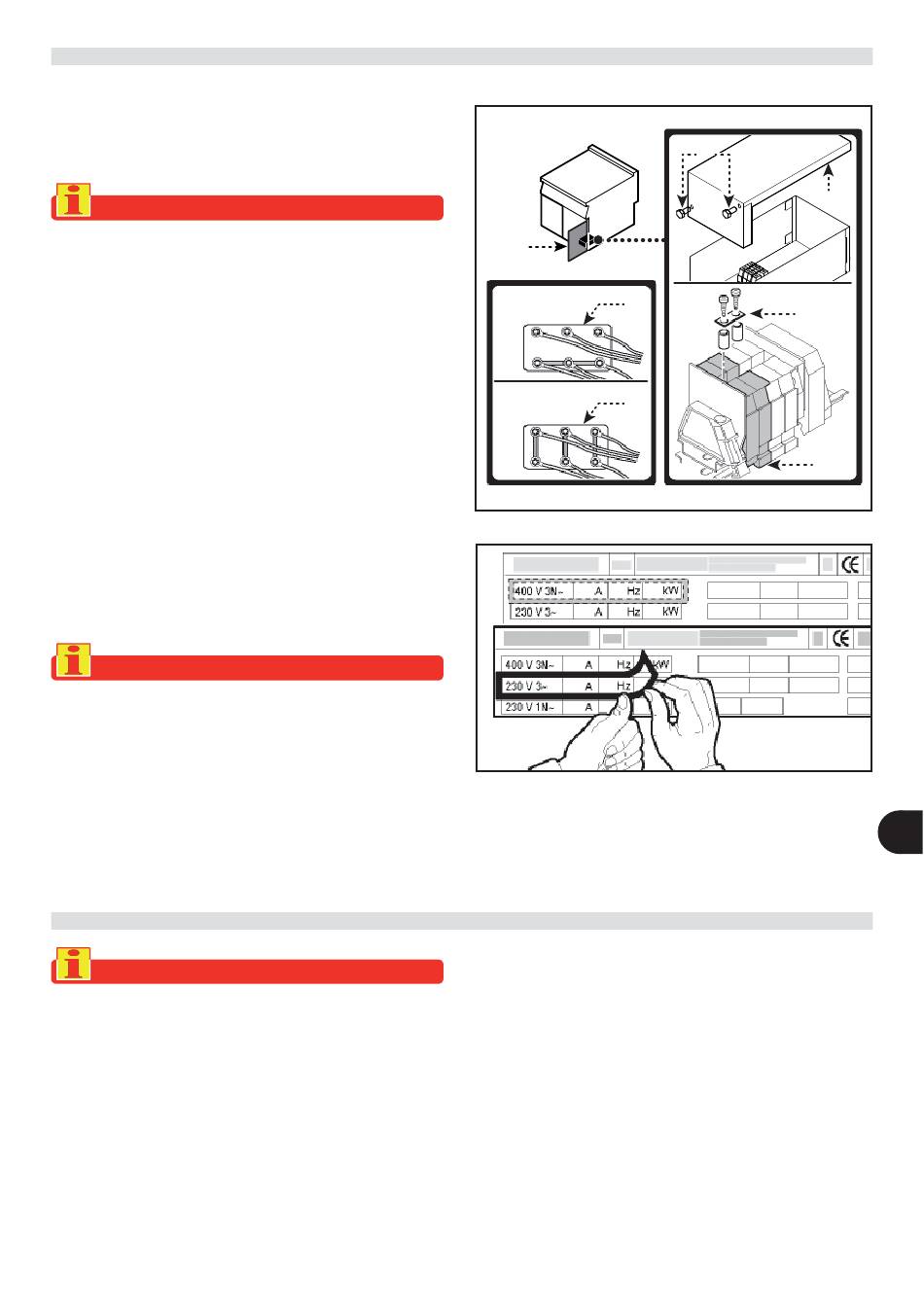

CONVERSION OF ELECTRICITY SUPPLY (0*1FR5ED - 1*1FR6ED)
The appliance is supplied at an operating volta-
ge 400V/3N (indicated on the sticker applied to
the dataplate); conversion to 230V/3 can be car-
ried out as described below.
Important
Before doing any work, cut off the mains
electricity supply.
Pull off the knob (B).
1)
Undo the screws (C) remove the control panel
2)
(D).
Fit the jumper (E) to make the electrical con-
3)
nection of the terminals (F).
Change the connections of the terminal
4)
board (G) as shown in the diagram.
Replace the lid (D) and fi x it with the screws (C)
5)
on completion of the operation.
Close the hatch (B).
6)
Remove the test voltage indicator sticker from
7)
the dataplate and apply the new one to iden-
tify the voltage being used.
Important
On completion of the operation make sure
that there are no malfunctions.
Important
Before it is put into service, the system must
be tested to check the operating conditions
of every single component and identify any
malfunctions. In this stage, it is important to
check that all health and safety requirements
have been complied with in full.
To test the system, make the following checks:
Check that the mains voltage is the same as
1)
that of the appliance.
3301300_inst_GB_rev.1
400V/3N
230V/3
TESTING OF THE APPLIANCE
Operate the appliance's circuit-breaker to
2)
check the electrical connection.
Check that the safety device is operating
3)
correctly.
After testing, if necessary instruct the user in all
the skills necessary for putting the appliance
into operation in conditions of safety, in accord-
ance with legal requirements.
