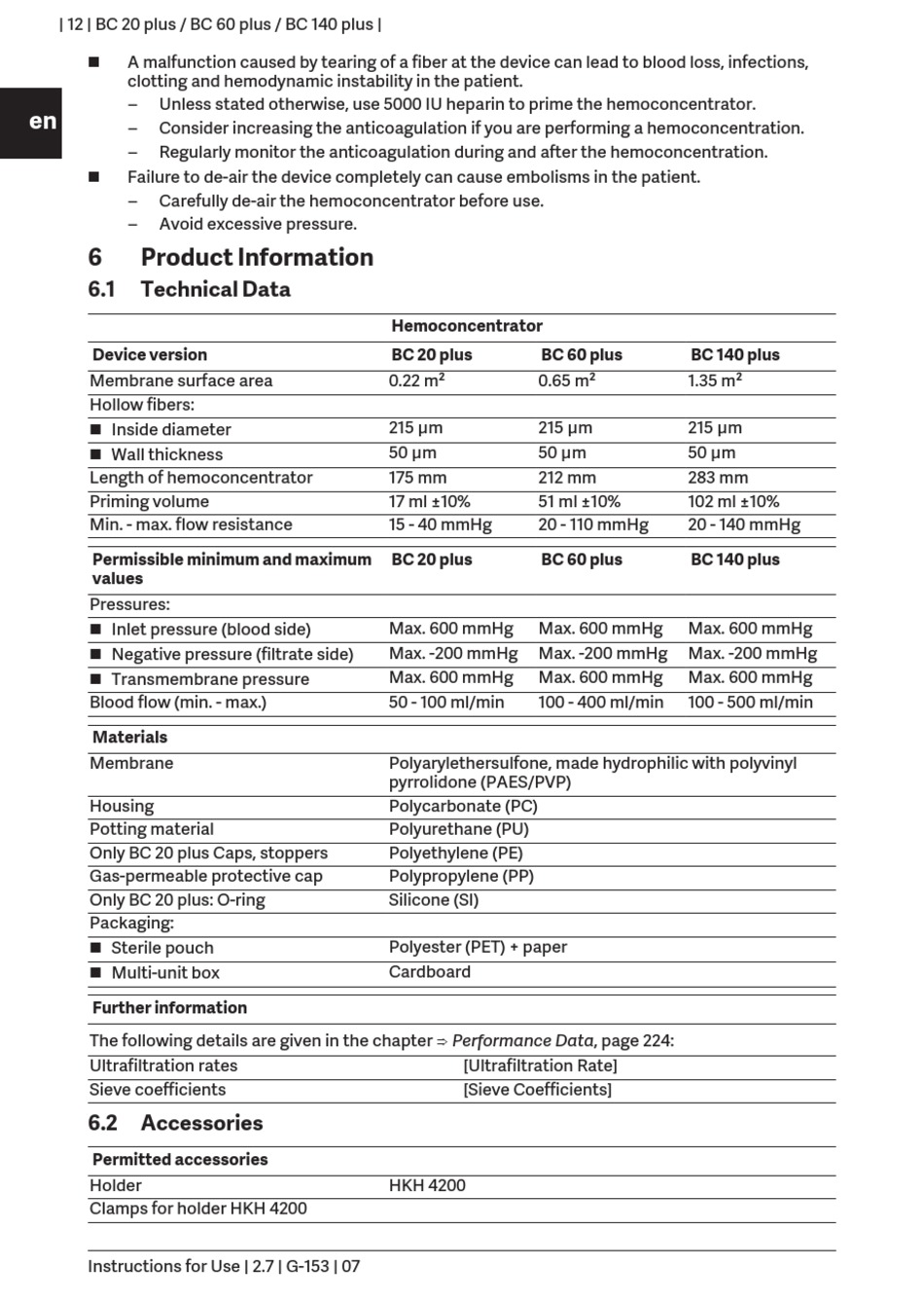

| 12 | BC 20 plus / BC 60 plus / BC 140 plus |
n A malfunction caused by tearing of a fiber at the device can lead to blood loss, infections,
clotting and hemodynamic instability in the patient.
– Unless stated otherwise, use 5000 IU heparin to prime the hemoconcentrator.
en
– Consider increasing the anticoagulation if you are performing a hemoconcentration.
– Regularly monitor the anticoagulation during and after the hemoconcentration.
n Failure to de-air the device completely can cause embolisms in the patient.
– Carefully de-air the hemoconcentrator before use.
– Avoid excessive pressure.
6 Product Information
6.1 Technical Data
Device version
Membrane surface area
Hollow fibers:
n Inside diameter
n Wall thickness
Length of hemoconcentrator
Priming volume
Min. - max. flow resistance
Permissible minimum and maximum
values
Pressures:
n Inlet pressure (blood side)
n Negative pressure (filtrate side)
n Transmembrane pressure
Blood flow (min. - max.)
Materials
Membrane
Housing
Potting material
Only BC 20 plus Caps, stoppers
Gas-permeable protective cap
Only BC 20 plus: O-ring
Packaging:
n Sterile pouch
n Multi-unit box
Further information
The following details are given in the chapter ⇒ Performance Data, page 224:
Ultrafiltration rates
Sieve coefficients
6.2 Accessories
Permitted accessories
Holder
Clamps for holder HKH 4200
Instructions for Use | 2.7 | G-153 | 07
Hemoconcentrator
BC 20 plus BC 60 plus
0.22 m² 0.65 m²
215 μm 215 μm
50 μm 50 μm
175 mm 212 mm
17 ml ±10% 51 ml ±10%
15 - 40 mmHg 20 - 110 mmHg
BC 20 plus BC 60 plus
Max. 600 mmHg Max. 600 mmHg
Max. -200 mmHg Max. -200 mmHg
Max. 600 mmHg Max. 600 mmHg
50 - 100 ml/min 100 - 400 ml/min
Polyarylethersulfone, made hydrophilic with polyvinyl
pyrrolidone (PAES/PVP)
Polycarbonate (PC)
Polyurethane (PU)
Polyethylene (PE)
Polypropylene (PP)
Silicone (SI)
Polyester (PET) + paper
Cardboard
[Ultrafiltration Rate]
[Sieve Coefficients]
HKH 4200
BC 140 plus
1.35 m²
215 μm
50 μm
283 mm
102 ml ±10%
20 - 140 mmHg
BC 140 plus
Max. 600 mmHg
Max. -200 mmHg
Max. 600 mmHg
100 - 500 ml/min
