Bergstrom TRP COMPACT N&D Montageanweisungen Seite 27

COMPACT N&D

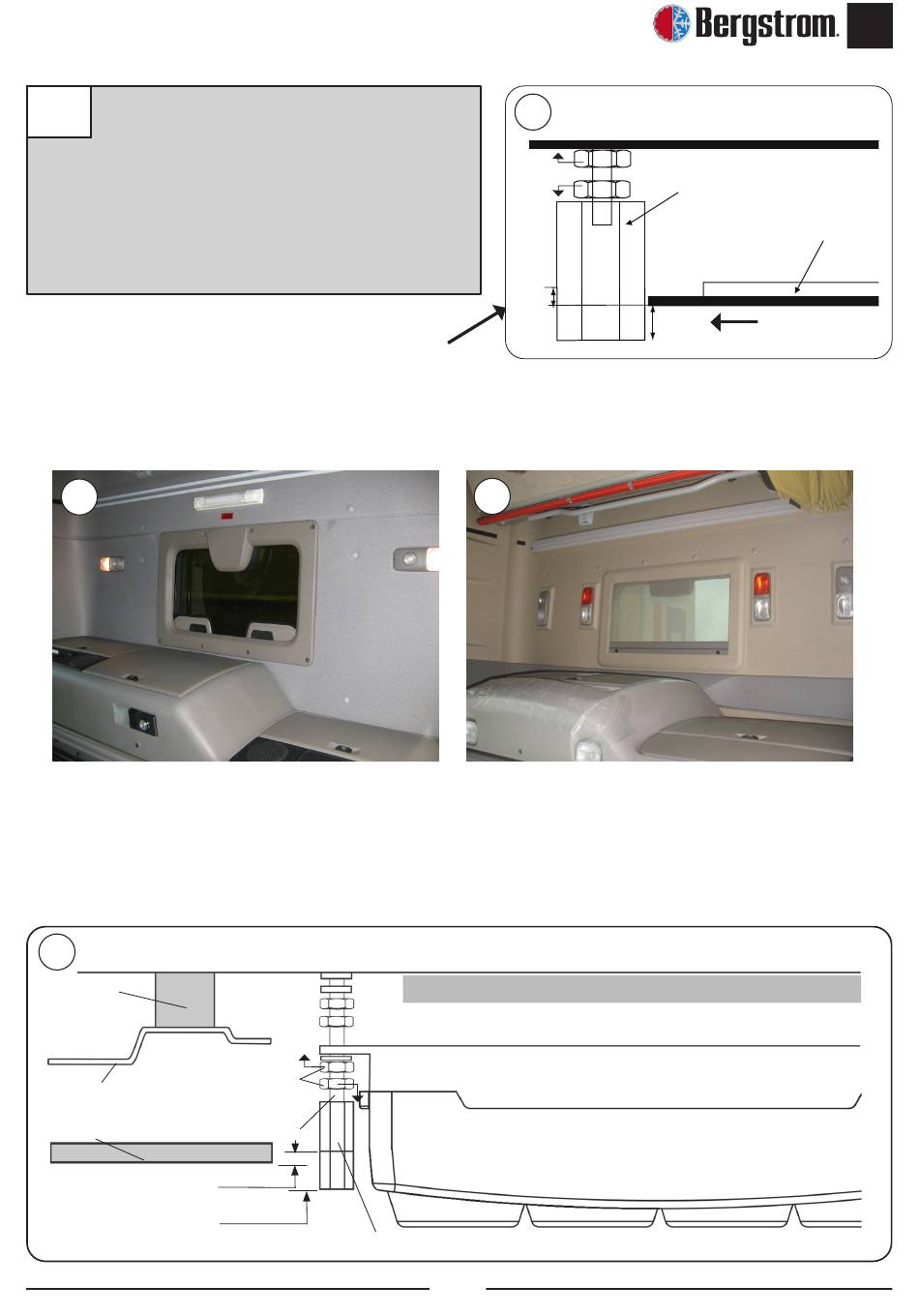

Fit nut M6 (A) after the fixing nut on the
16
internal air distribution panel on each stud.
Fit M6 hexagon bolt, screwing it on until it
is 1 mm above the upholstery in vehicles
with SuperSpaceCab and 10 mm below the
upholstery in all other vehicles. Unscrew
M6 bolt (A) on this point until it reaches the
hexagon bolts and tighten against them.
16
Other cabins
16
EPDM
seal
Cabin ceiling
Upholstering
Space Cab - 1 mm.
Other models - 10 mm.
Super Space Cab
Base
(A)
M6 Nut
M6 stud
M6 Hexagons
16
1 mm
Aprox.
16
Cabine Super Space Cab
Interior air distribution panel
27
Compact Base
(A) M6 hexagon
Upholstering
Other models
10 mm
Foam
EN
