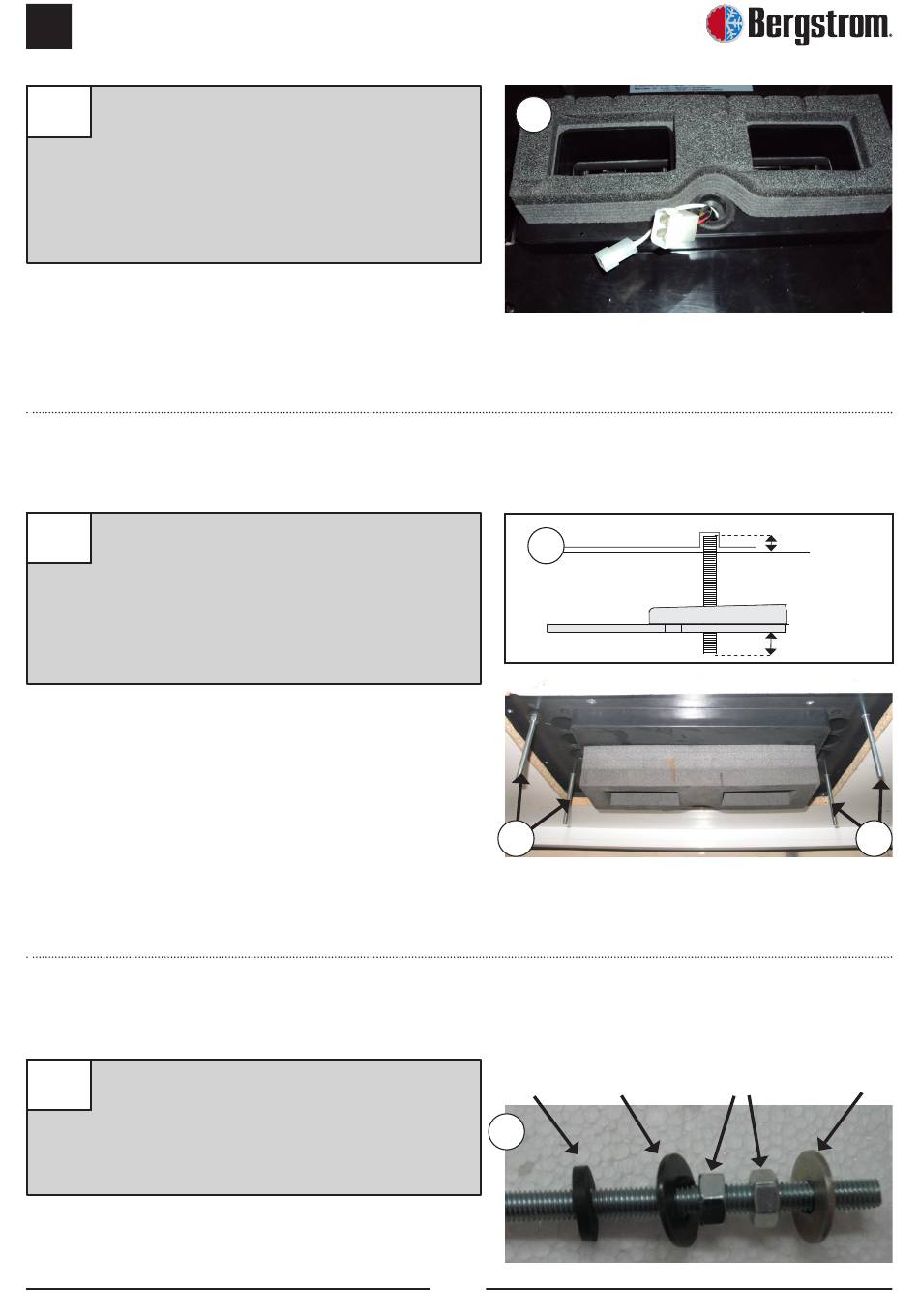

Bergstrom TRP COMPACT N&D Montageanweisungen Seite 22

COMPACT N&D
EN
Position the foam rubber, ensuring the softest
5
part is placed on the base of the unit.
Caution: Depending on the cabin, it may
be necessary to use the (2) supplied ducts
in order for the distribution panel to be
completely adjusted.
INSIDE CABIN:
6
Screw about 5 mm (4) 8/125x70,100 or 120
mm studs, the exact measure is chosen after
the fastening supports have been presented
and taking into account that studs must stick
out of lower part about 20 mm.
Following this order:
7
- plane rubber wash
- plane ruber wash wide wing diameter 8
- nut M8
- plane washer diameter 8 wide wing
5
Unit base
6
6
plane ruber wash
plane rubber
wide wing Ø 8
wash
7
22
5 mm
Stud
Bracket
20 mm
plane washer
Nut M8 Ø8 wide wing
6
