COMPACT N&D
EN

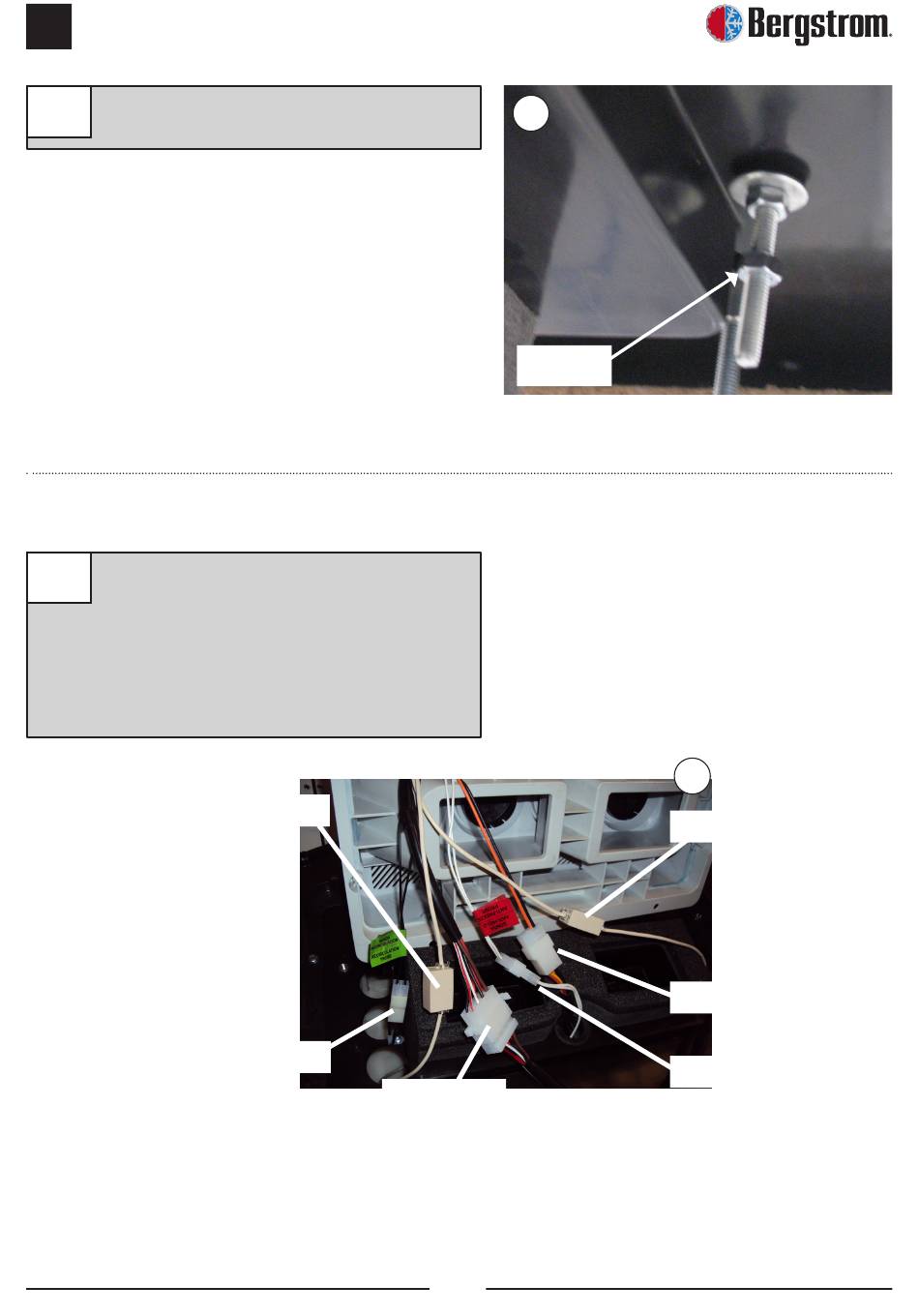

Place (2) fastening supports, with (1) washer
10a
and (1) M6 nut, without tightening.
Between the base and the interior air
10b
distribution panel, connect (2) two-way boxes
of the anti-freeze sensor (white cables) and
the return air sensor (black cables), 4-way
box of the blower, (2) communication cables
and 8-way box of the electronic control
connection cables.
communication cable
return air sensor
10a
M6 nut
8-way box
24
10b
communication cable
Blower
Anti-freeze sensor
