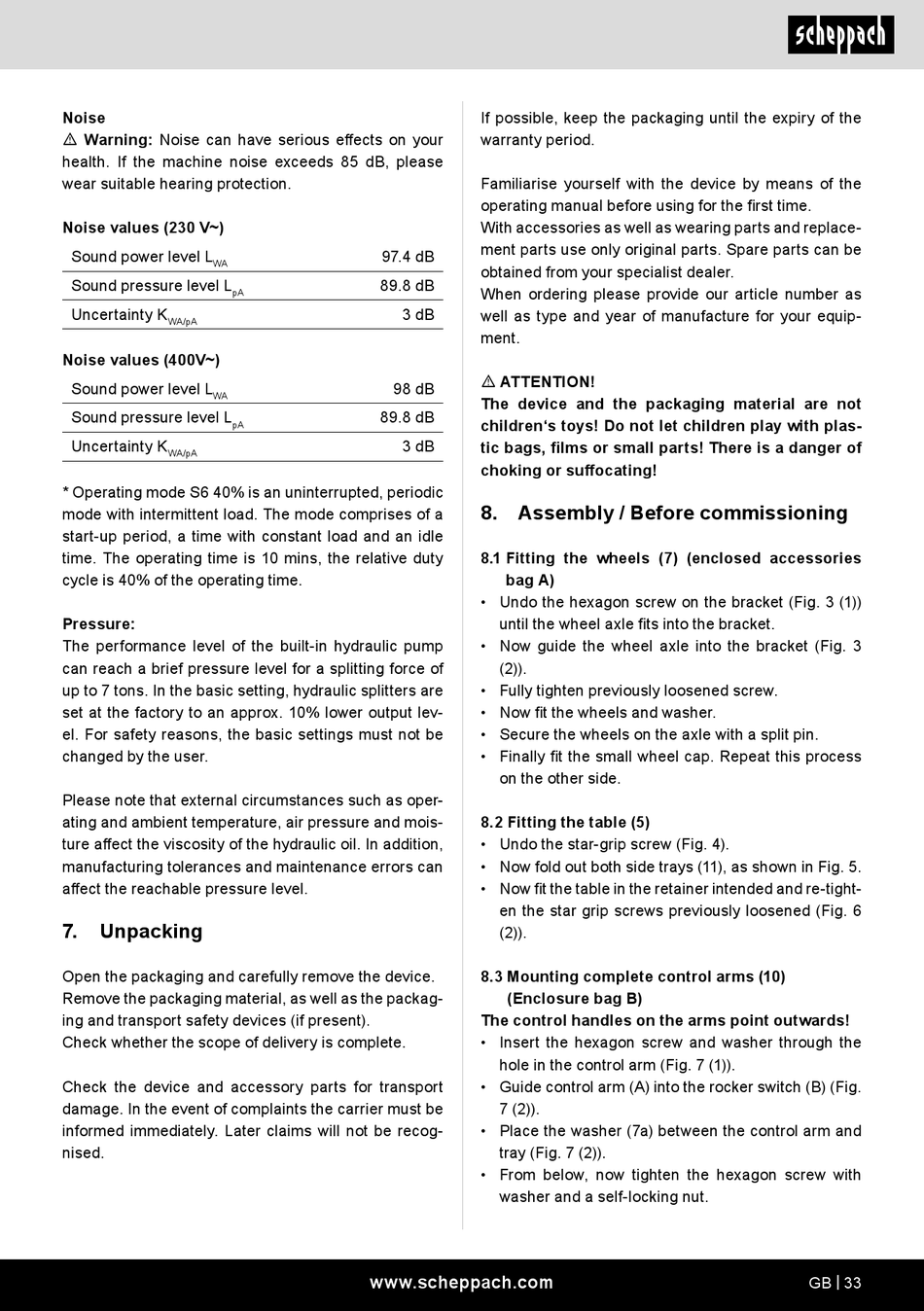

Scheppach HL730 Originalbetriebsanleitung Seite 33

Noise
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Noise values (230 V~)
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
WA/pA
Noise values (400V~)
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
WA/pA
* Operating mode S6 40% is an uninterrupted, periodic
mode with intermittent load. The mode comprises of a
start-up period, a time with constant load and an idle
time. The operating time is 10 mins, the relative duty
cycle is 40% of the operating time.
Pressure:
The performance level of the built-in hydraulic pump
can reach a brief pressure level for a splitting force of
up to 7 tons. In the basic setting, hydraulic splitters are
set at the factory to an approx. 10% lower output lev-
el. For safety reasons, the basic settings must not be
changed by the user.
Please note that external circumstances such as oper-
ating and ambient temperature, air pressure and mois-
ture affect the viscosity of the hydraulic oil. In addition,
manufacturing tolerances and maintenance errors can
affect the reachable pressure level.
7. Unpacking
Open the packaging and carefully remove the device.
Remove the packaging material, as well as the packag-
ing and transport safety devices (if present).
Check whether the scope of delivery is complete.
Check the device and accessory parts for transport
damage. In the event of complaints the carrier must be
informed immediately. Later claims will not be recog-
nised.
If possible, keep the packaging until the expiry of the
warranty period.
Familiarise yourself with the device by means of the
operating manual before using for the first time.
With accessories as well as wearing parts and replace-
ment parts use only original parts. Spare parts can be
97.4 dB
obtained from your specialist dealer.
89.8 dB
When ordering please provide our article number as
3 dB
well as type and year of manufacture for your equip-
ment.
m ATTENTION!
98 dB
The device and the packaging material are not
89.8 dB
children's toys! Do not let children play with plas-
3 dB
tic bags, films or small parts! There is a danger of
choking or suffocating!
8. Assembly / Before commissioning
8.1 Fitting the wheels (7) (enclosed accessories
bag A)
• Undo the hexagon screw on the bracket (Fig. 3 (1))
until the wheel axle fits into the bracket.
• Now guide the wheel axle into the bracket (Fig. 3
(2)).
• Fully tighten previously loosened screw.
• Now fit the wheels and washer.
• Secure the wheels on the axle with a split pin.
• Finally fit the small wheel cap. Repeat this process
on the other side.
8.2 Fitting the table (5)
• Undo the star-grip screw (Fig. 4).
• Now fold out both side trays (11), as shown in Fig. 5.
• Now fit the table in the retainer intended and re-tight-
en the star grip screws previously loosened (Fig. 6
(2)).
8.3 Mounting complete control arms (10)
(Enclosure bag B)
The control handles on the arms point outwards!
• Insert the hexagon screw and washer through the
hole in the control arm (Fig. 7 (1)).
• Guide control arm (A) into the rocker switch (B) (Fig.
7 (2)).
• Place the washer (7a) between the control arm and
tray (Fig. 7 (2)).
• From below, now tighten the hexagon screw with
washer and a self-locking nut.
