Anybus-S status
indicator
Status display Anybus-S on Anybus-S Ether-
net/IP bus module
Status indicator flashing red, 4 Hz
Error in DPRAM
Status indicator flashing green, 2 Hz
Bus module not initialised
Status indicator flashing green, 1 Hz
Bus module initialised, normal operation

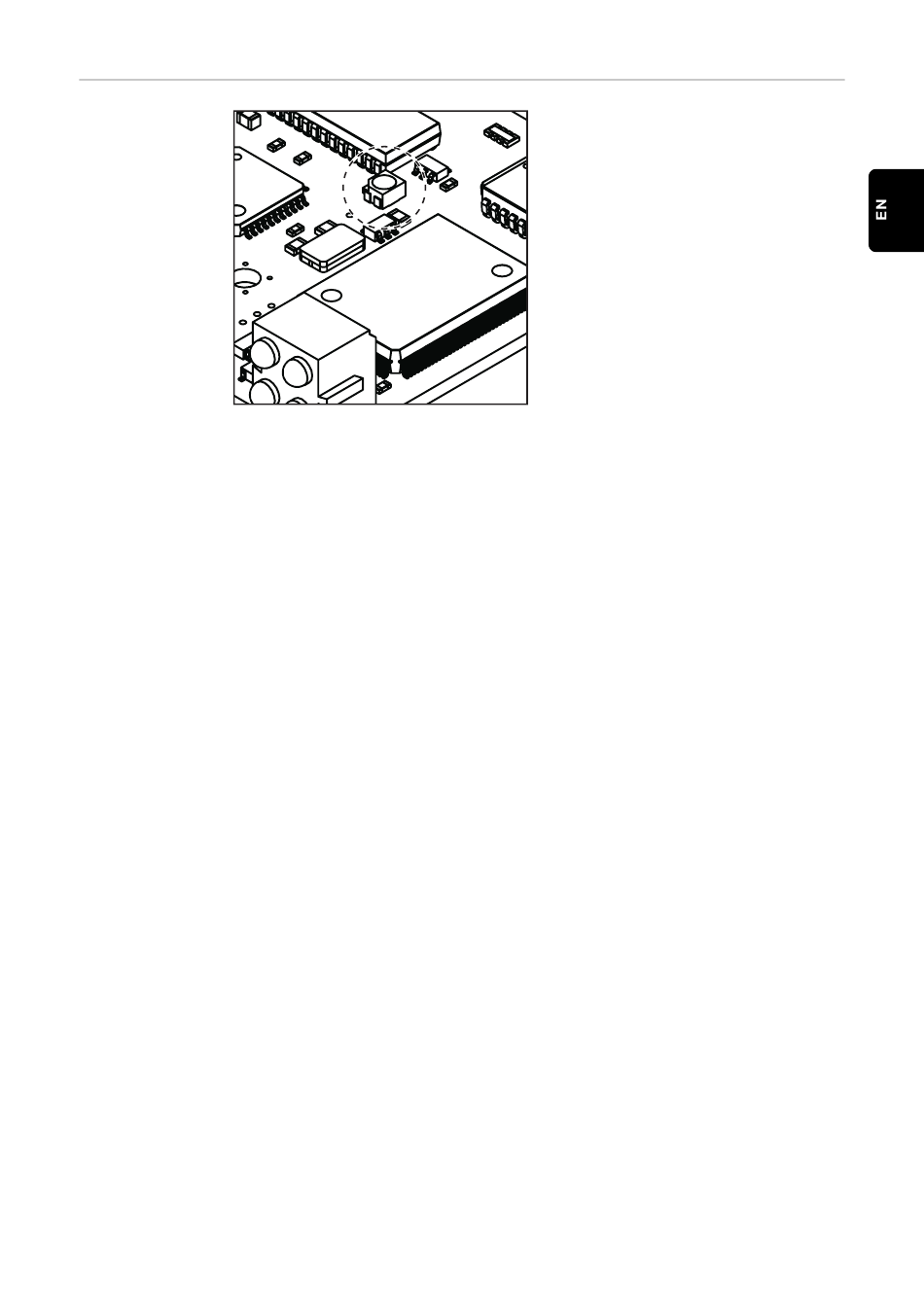

The Anybus-S status indicator is an
LED on the surface of the Anybus-S
DeviceNet bus module.
The following errors and statuses are
displayed by the Anybus-S status indi-
cator:
Status indicator lights up red
Internal error or operating in „bootloa-
der" mode
Status indicator flashing red, 1 Hz
Error in configuration memory RAM
Status indicator flashing red, 2 Hz
Error in ASIC or FLASH
