Troubleshooting the Anybus-S DeviceNet bus mo-
dule
LED indicator on
Anybus-S De-
vice-Net bus mo-
dule

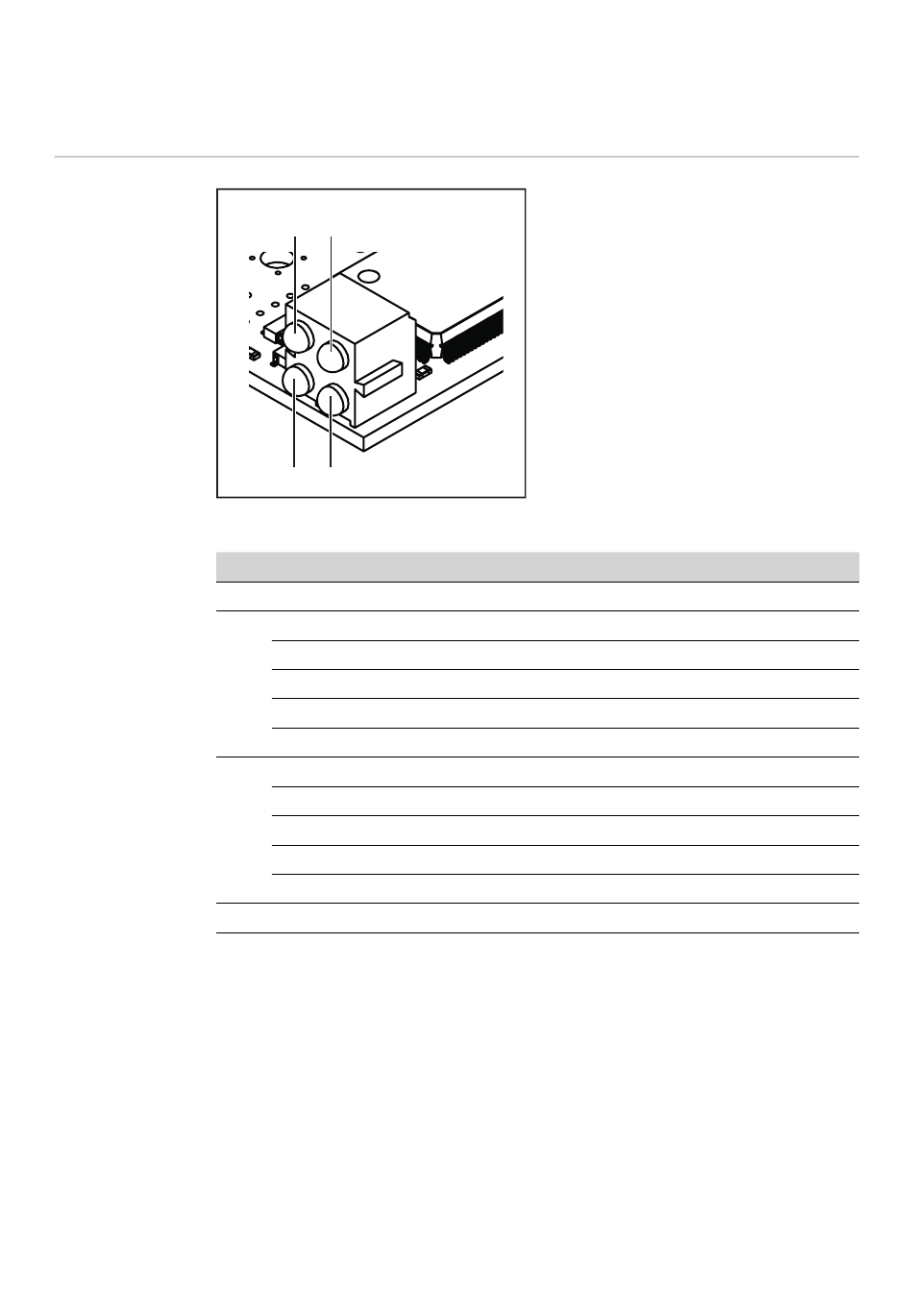

LED indicator on Anybus-S DeviceNet bus mo-
dule
LED
1
2
(3)
4
48
(1) (2)
(4) (3)
Indicator Meaning
- Reserved for other applications
Off No power / not online
Steady green Connection is OK, online
Flashing green Online, not connected
Steady red Critical connection error
Flashing red Connection timeout
Off No power to Anybus-S DeviceNet bus module
Steady green Anybus-S DeviceNet bus module is ready
Flashing green Data volume greater than configured
Steady red Serious error
Flashing red Minor error
- Reserved for other applications
(1) Spare
(2) Network status
(3) Module status
(4) Spare
