Configuring ad- The Fronius 'Servicemodul' program can be used to configure additional input/
ditional signals output signals:
-
-
-
-
-
-
IMPORTANT! If you only want to use the additional signals 105 - 112 and not si-
gnals 113 - 200, the following option is required on the AB DeviceNet Enterprise
interface: 'Rob I/O installation set'
Additional configuration information can be found in the EDS data sheet of the
Anybus-S DeviceNet bus module.

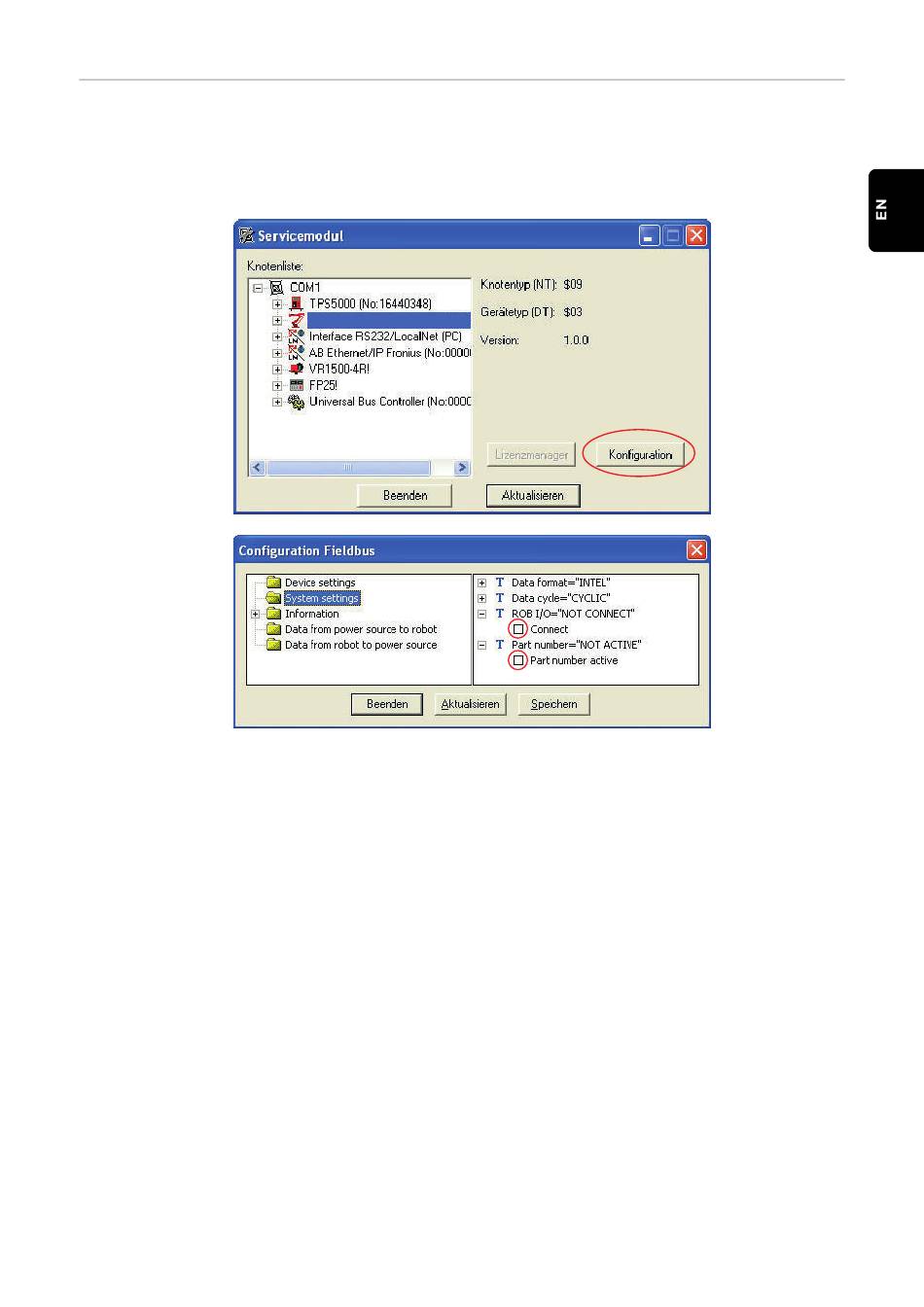

Start / Programs / Fronius Product Group / Service Module
Select AB DeviceNet Enterprise
Click the Configuration button
AB DeviceNet Enterprise
Select 'System settings'
Activate the 'Connect' check box under 'ROB I/O' to access the additional si-
gnals 105 - 112
Activate the 'Part number active' check box under 'Part number' to access
the additional signals 113 - 200
