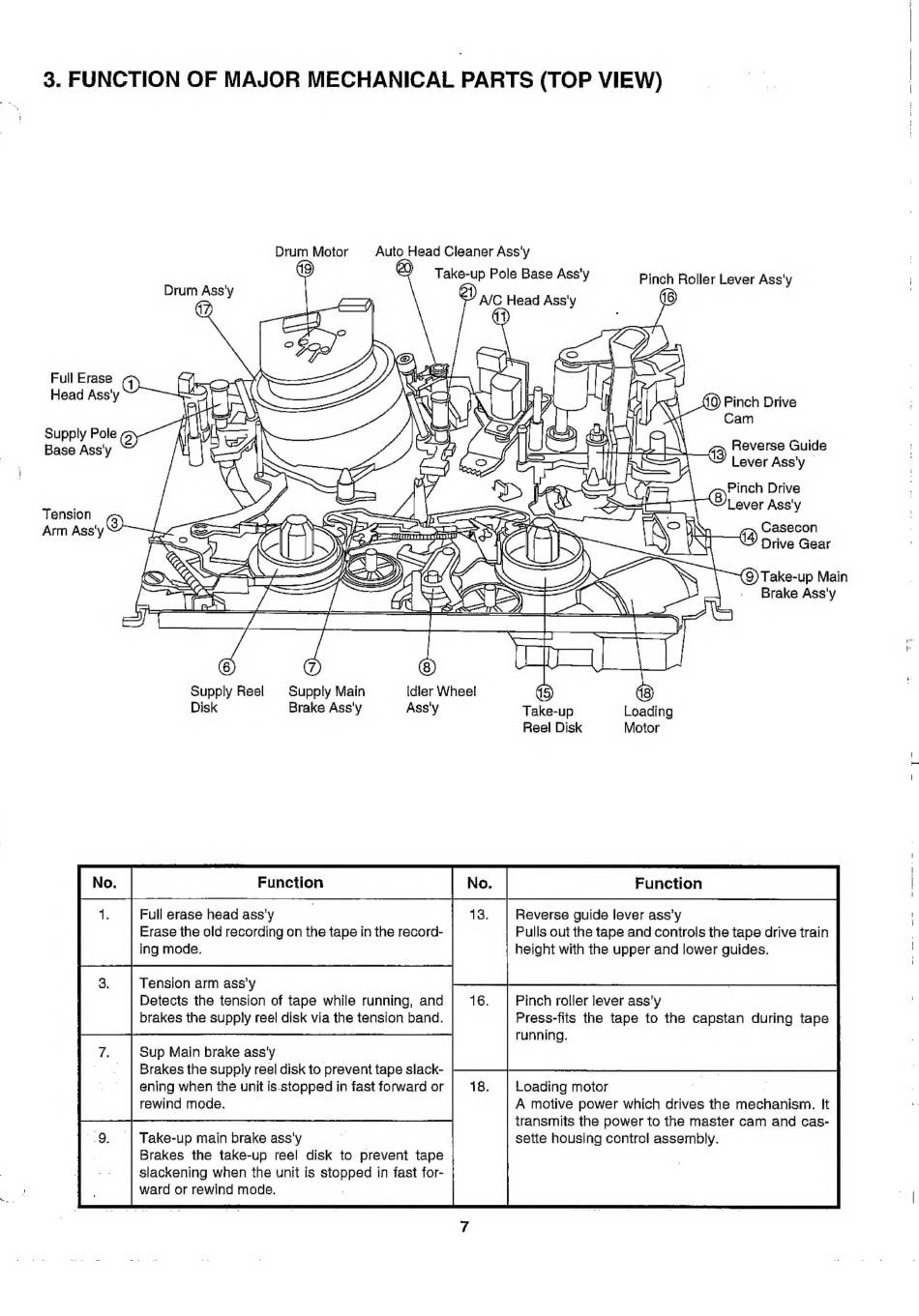

3. FUNCTION OF MAJOR MECHANICAL PARTS (TOP VIEW)
Drum Motor
Auto Head Cleaner Ass'y
09)
ee
Take-up Pole Base Ass'y
Drum Ass'y
Full Erase
Oo
npad heey
(0) Pinch Drive
Cam
Supply Pole
Base Ass'y
B heey Guide
ever
Ass'y
Pinch Drive
Tension
®) ever Ass'y
Arm Ass'y ®
be,
=
@ Casecon
=
Drive Gear
(9) Take-up Main
Brake Ass'y
Full erase head ass'y
.
'
Reverse guide lever ass'y
|
Erase the old recording on the tape in the record-
Pulls out the tape and controls the tape drive train
ing mode.
height with the upper and lower guides.
Tension arm ass'y
Detects the tension of tape while running, and
:
Pinch roller lever ass'y
brakes the supply reel disk via the tension band.
Press-fits the tape to the capstan during tape
running.
Sup Main brake ass'y
Brakes the supply reel disk to prevent tape slack-
—
ening when the unit is. stopped in fast forward or
:
Loading motor
'
rewind mode.
A motive power which drives the mechanism. It
transmits the power to the master cam and cas-
Take-up main brake ass'y
:
sette housing control assembly.
Brakes the take-up reel disk to prevent tape
slackening when the unit is stopped in fast for-
ward or rewind mode.
