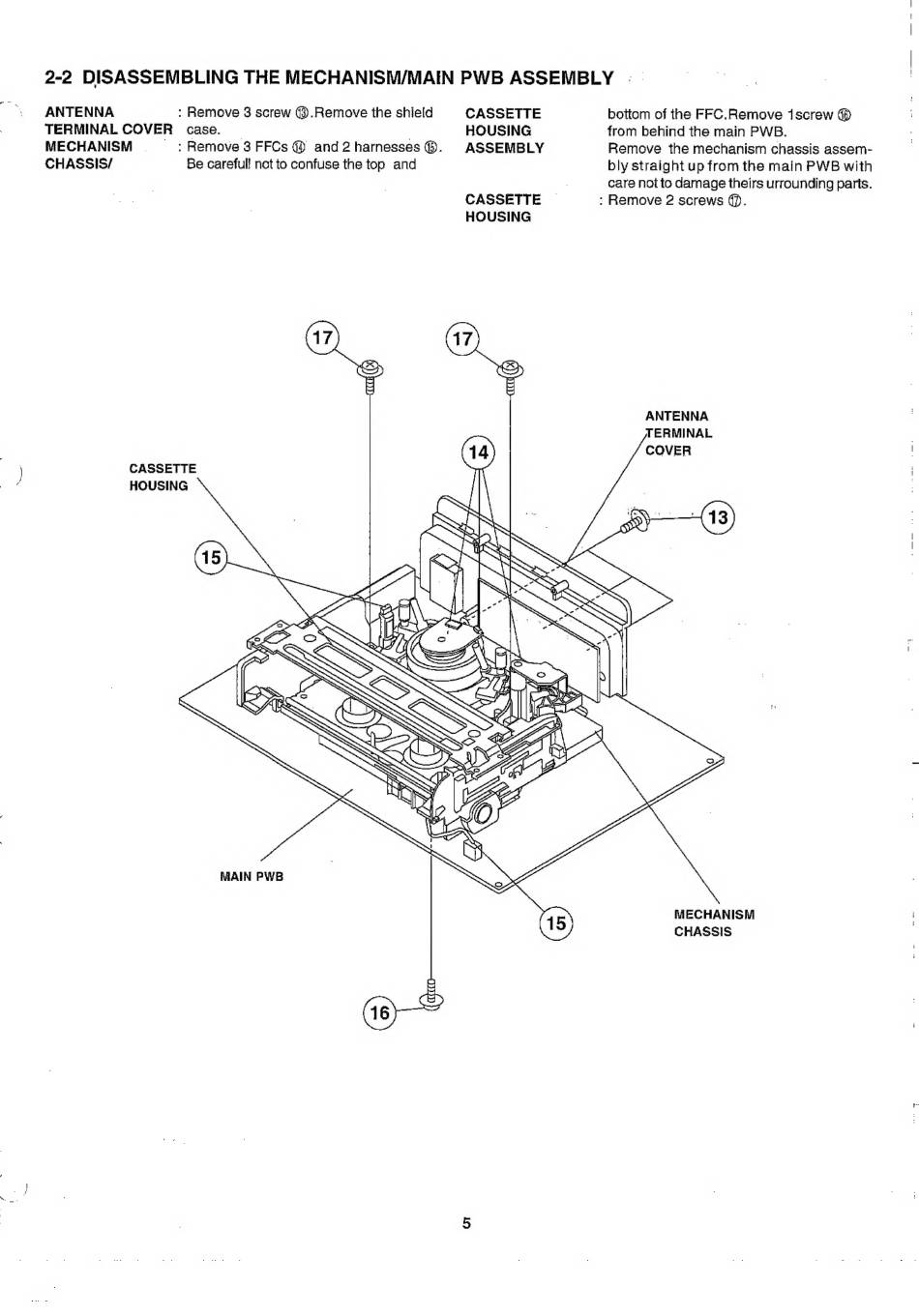

2-2 DISASSEMBLING THE MECHANISM/MAIN PWB ASSEMBLY
.
ANTENNA
: Remove 3 screw @.Remove the shield
TERMINAL COVER
case.
MECHANISM
.
CHASSIS/
CASSETTE
HOUSING
' : Remove 3 FFCs @ and 2 harnesses @.
Be careful! not to confuse the top and
MAIN PWB
CASSETTE
HOUSING
ASSEMBLY
CASSETTE
|
HOUSING
&
bottom of the FFC.Remove 1screw @
from behind the main PWB.
Remove
the mechanism chassis assem-
bly straight up from the main PWB with
care not to damage theirs urrounding parts.
: Remove 2 screws @.
ANTENNA
TERMINAL
|
COVER
|
MECHANISM
CHASSIS
