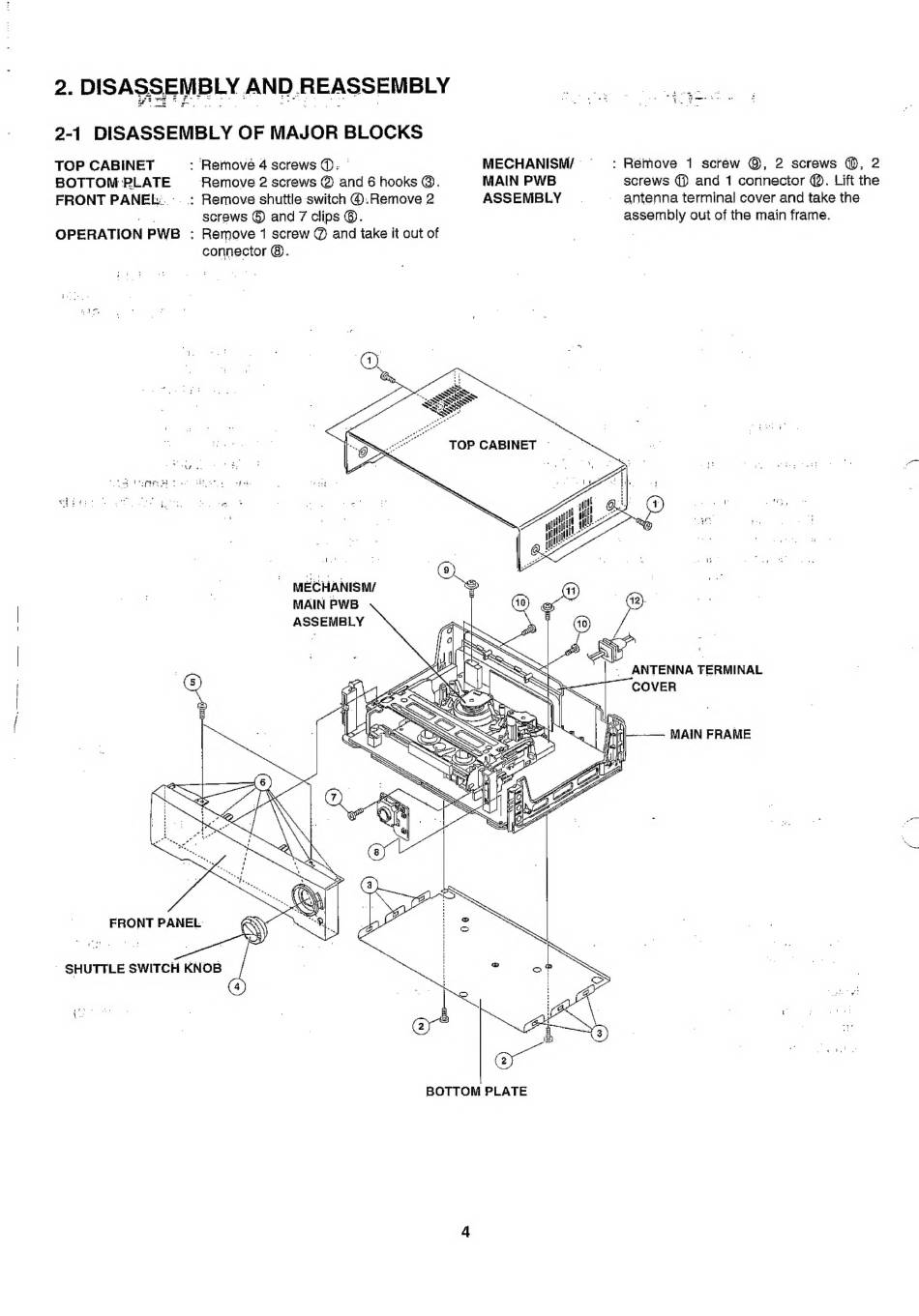

2. DISASSEMBLY AND REASSEMBLY
2-1 DISASSEMBLY OF MAJOR BLOCKS
TOP CABINET : Remove 4 screws @. | MECHANISM/ ~ ~ =: Remove 1 screw @, 2 screws @, 2
BOTTOM PLATE Remove 2 screws ® and 6 hooks @). MAIN PWB screws ( and 1 connector @. Lift the
FRONT PANEL... : Remove shuttle switch @.Remove 2 ASSEMBLY = ~ antenna terminal cover and take the
screws ©) and 7 clips ©. assembly out of the main frame.
OPERATION PWB : Remove 1 screw @ and take it out of
connector @.
MECHANISM ®
MAIN PWB (10)
ASSEMBLY
- ANTENNA TERMINAL
COVER
FRONT PANEL
- SHUTTLE SWITCH KNOB
BOTTOM PLATE
