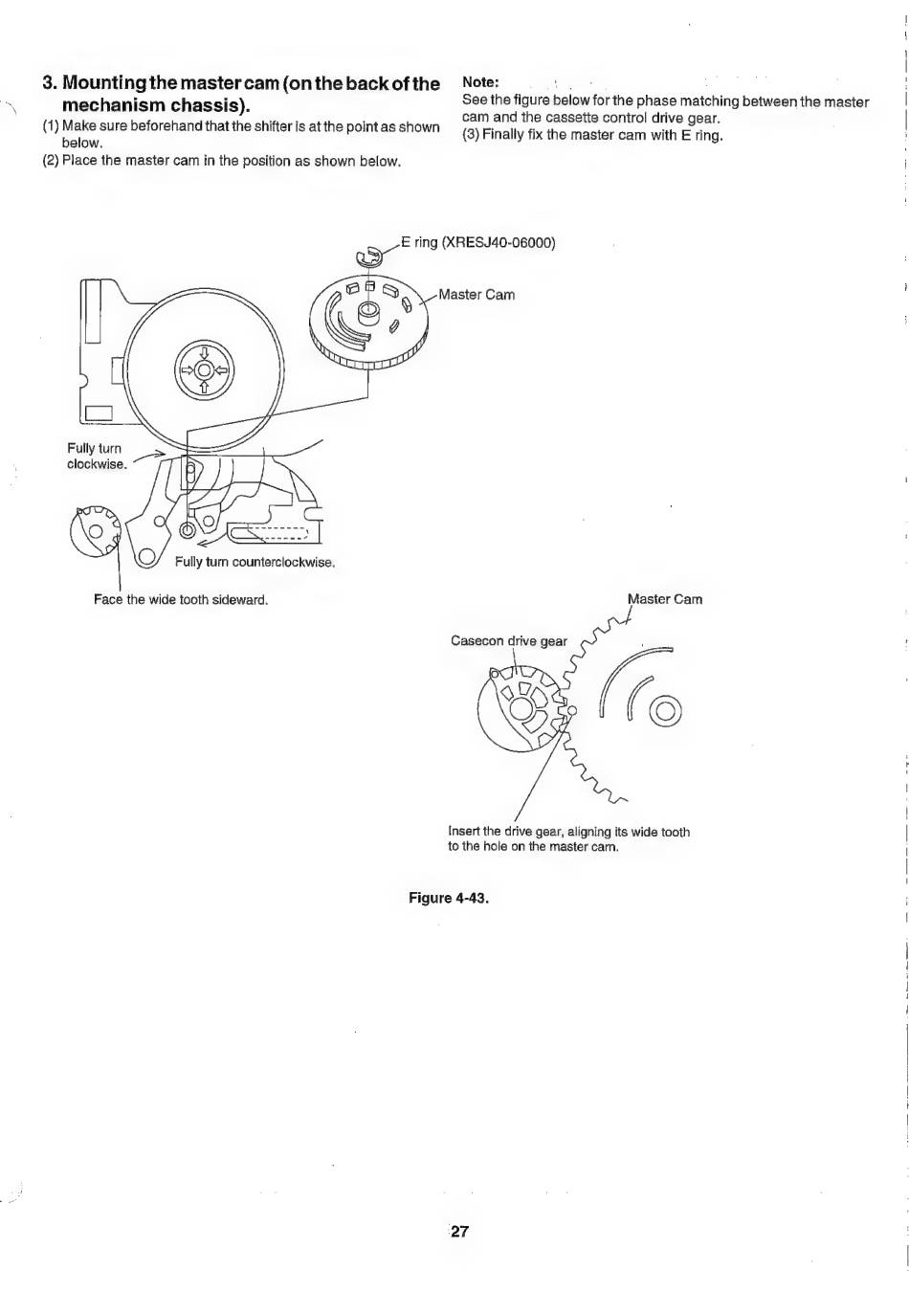

3. Mounting the master cam (on the back of the
mechanism chassis).
(1) Make sure beforehand that the shifter is at the point as shown
below.
(2) Place the master cam in the position as shown below,
(3) Finally fix the masier cam with E ring.
Fully turn
clockwise.
Fully turn counterclockwise.
Face the wide tooth sideward.
Master Cam
Casecon drive gear
Insert the drive gear, aligning its wide tooth
to the hole on the master cam.
Figure 4-43.
27
