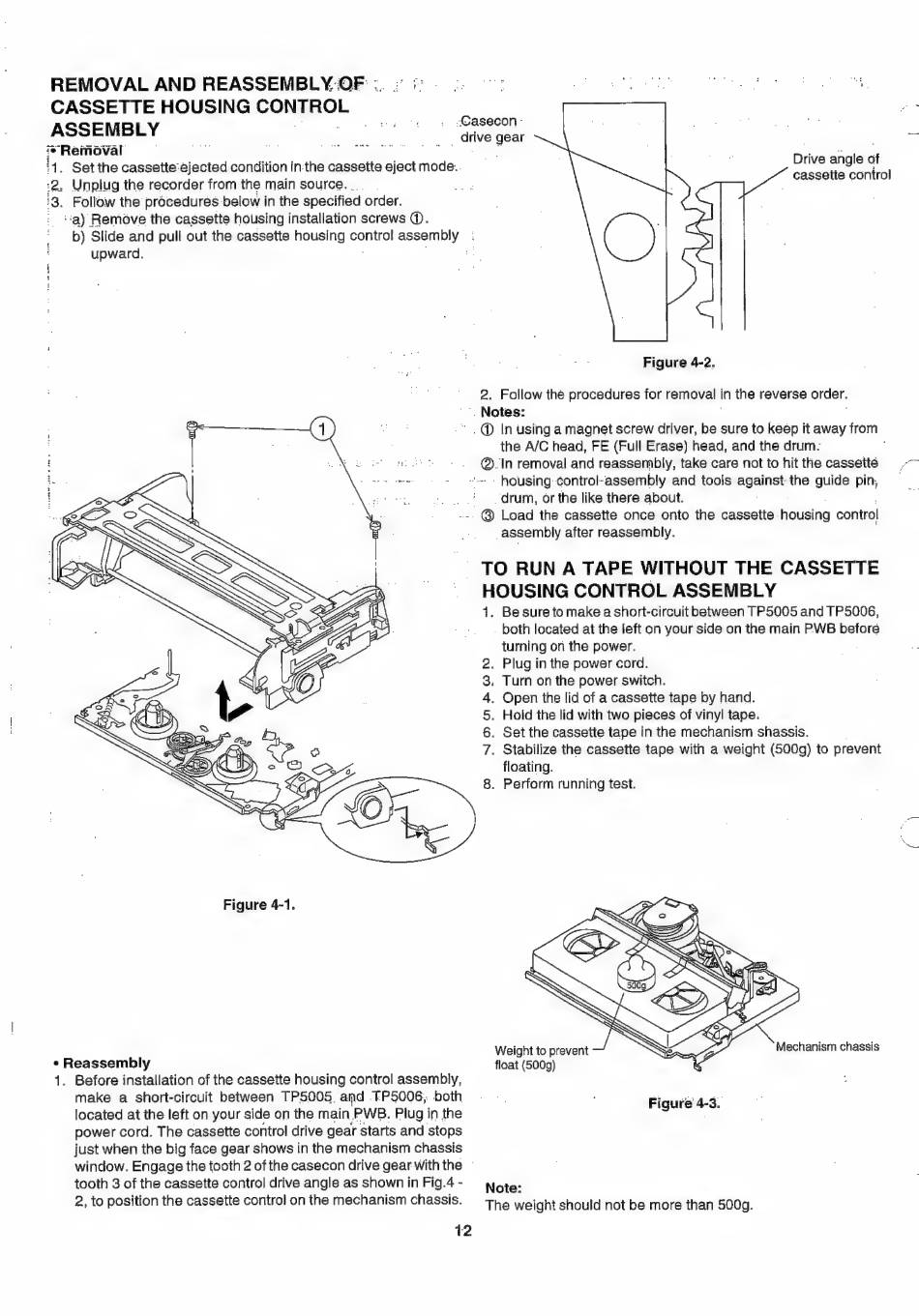

REMOVAL AND REASSEMBLY.OF «.. » «|
CASSETTE HOUSING CONTROL
:
os
s
w o
Rp
.
swasecon-
semis
i.
ative gear
i* Removal
'1. Setthe cassette-ejected condition inthe cassette eject mode..
:2. Unplug the recorder from the main source. ...
'3. Follow the procedures below in the specified order.
: a) Remove the cassette housing installation screws @.
b) Slide and pull out the cassette housing control assembly
;
upward.
me
Drive angle of
cassette control
Figure 4-2.
2. Follow the procedures for removal in the reverse order.
. Notes:
'
_@ In using a magnet screw driver, be sure to keep it away from
the A/C head, FE (Full Erase) head, and the drum-
.
@®. In removal and reassembly, take care not to hit the cassette
"
. Rousing: control-assembly and tools against-the guide pin,
_.'
drum, or the like there about.
oo
;
- . @ Load the cassette once onto the cassette housing control
assembly after reassembly.
TO RUN A TAPE WITHOUT THE CASSETTE
HOUSING CONTROL ASSEMBLY
. Be sure to make a short-circuit between TP5005 and TP5006,
both located at the left on your side on the main PWB before
turning on the power.
. Plug in the power cord.
; Turn on the power switch.
. Open the lid of a cassette tape by hand.
. Hold the lid with two pieces of vinyl tape.
. Set the cassette tape in the mechanism shassis.
.
. Stabilize the cassette tape with a weight (500g) to prevent
floating.
. Perform running test.
Figure 4-1,
Weight to prevent
Mechanism
chassis
« Reassembly
float (500g)
1. Before installation of the cassette housing control assembly,
make
a short-circuit
between
TPS5005 and TP5006; both
.
Figure 4-3.
located at the left on your side on the main PWB. Plug in the
power cord. The cassette control drive gear starts and stops
just when the big face gear shows in the mechanism chassis
window. Engage the tooth 2 of the casecon drive gear with the ©
tooth 3 of the cassette control drive angle as shown in Fig.4-
ote:
12
