7.7 ne mm

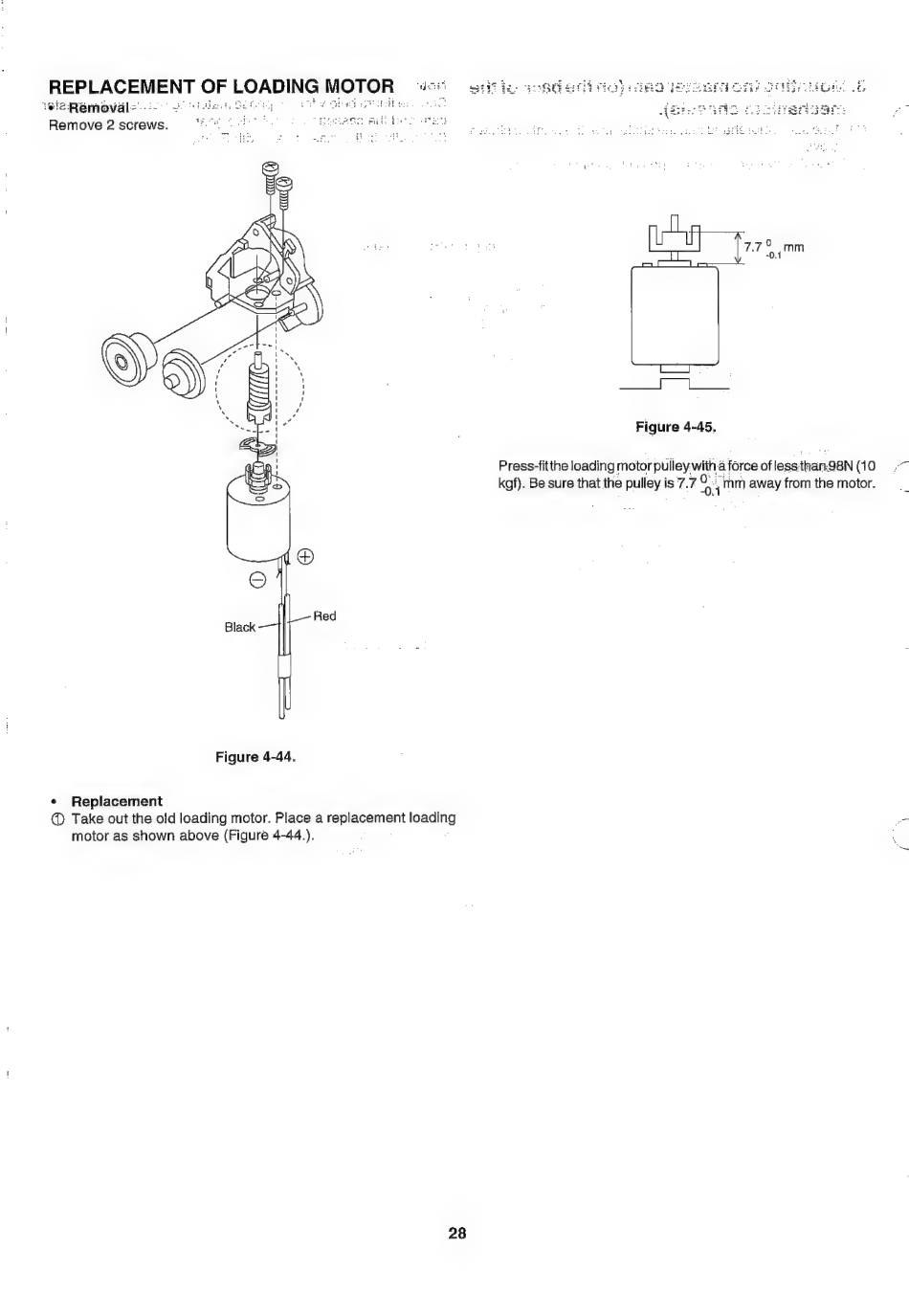

Figure 4-45,
Press-fitthe loading motor pulley with a force of lessthan.98N AO. oF
kgf}. Be sure that the pulley is 7.7 vi , mm away from the motor.
Figure 4-44.
¢ Replacement
@ Take out the old loading motor. Place a replacement loading
=
motor as shown above (Figure 4-44.).
ae
?
28
