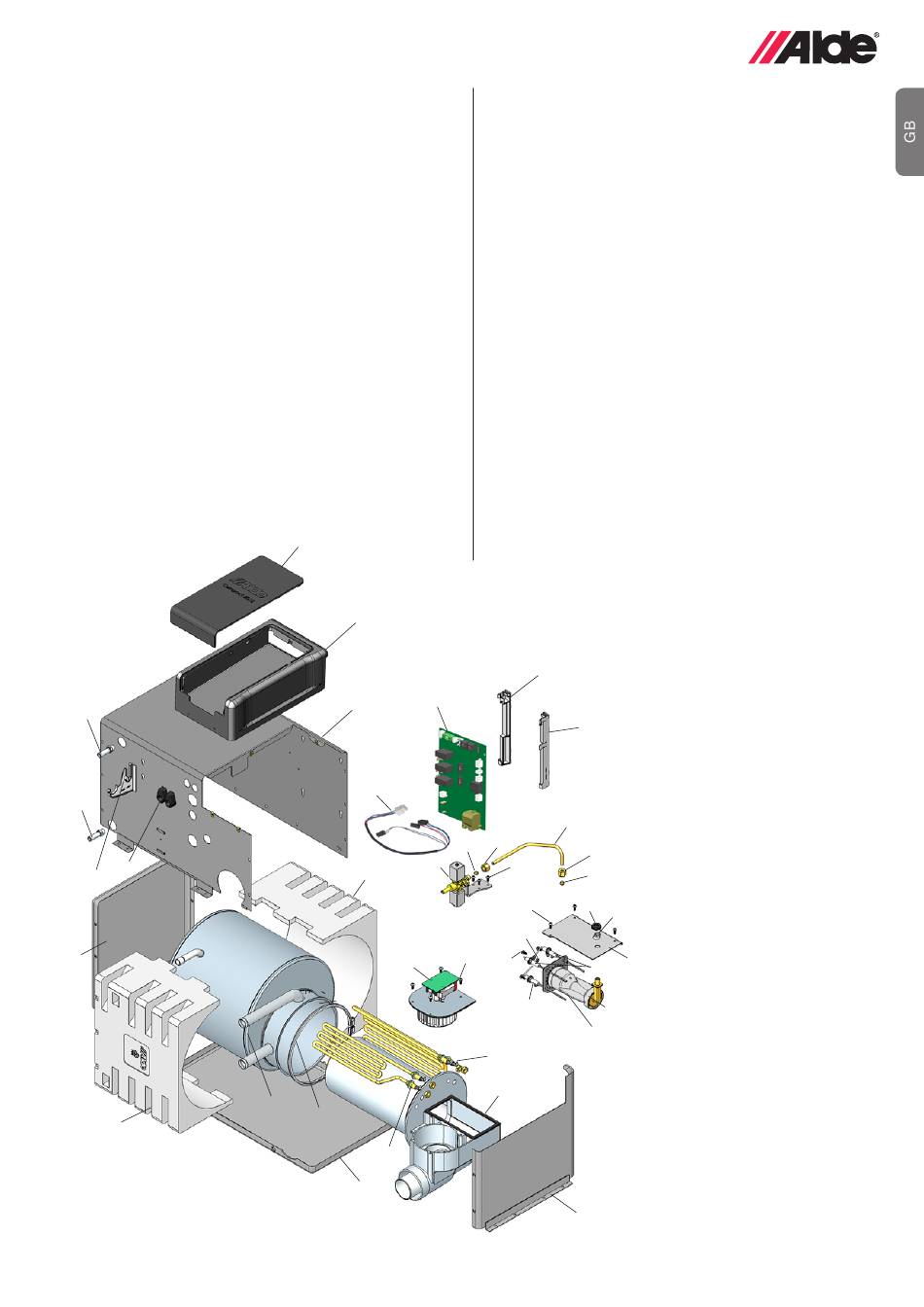

6. EXPLODED DRAWING

1. 3020 011 Service cover
2. 3020 010 Service hatch
3. 3010 152 Cowling
4. 3020 040 Circuit board 3 kW for model A
3020 140 Circuit board 3 kW for model HE
5. 3020 039 Sensor set
6. 3010 189 Circuit board holder, LH
7. 3010 188 Circuit board holder, RH
8. 3010 163 Nut
9. 3010 164 Cone
10. 3010 304 Solenoid valve
11. 3010 182 Screw
12. 3010 312 Copper pipe
13. 3010 182 Screw
14. 3000 452 Fan, complete
15. 3010 182 Screw
16. 2930 235 Cable grommet
17. 3010 166 Nut
18. 3010 135 Plate
34
34
36
35
33
32
1
2
4
3
5
10
34
14
31
30
28
29
19. 3010 133 Spark plug
20. 3010 186 Nut
21. 3010 181 Screw
22. 3010 134 Sensor plug
23. 3010 122 Burner
24. 3010 301 Burner, complete
25. 3010 150 End panel, front
26. 3010 141 Element, 2 kW
27. 3010 136 Gasket
28. 3000 140 Element, 1 kW
29. 3010 153 Bottom plate
30. 3010 200 Clamping ring
31. 3020 001 Boiler body
32. 3010 158 Insulation
33. 3010 151 End panel, rear
34. 3010 131 Nipple
35. 3010 159 Support for non-return valve
36. 2762 125 Strain relief
Other small parts
3010 205 Cable for fan
6
7
12
8
9
8
11
9
16
15
17
20
13
21 18
19
22
23
24
26
27
25
15
