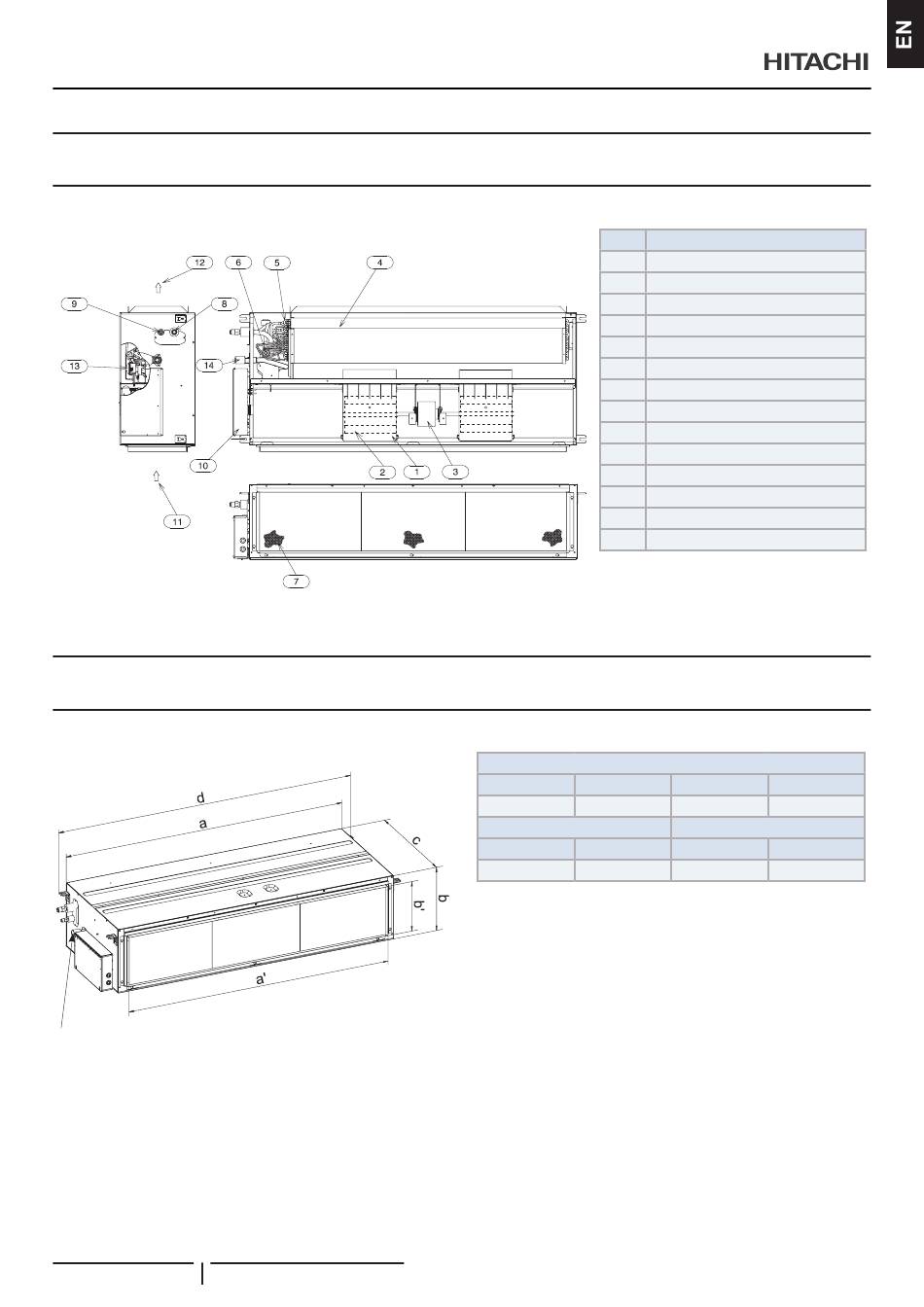

NAME OF PARTS

2 NAME OF PARTS
2.1 RPIH-(4.0-6.0)FSRE

3 GENERAL DIMENSIONS

3.1 RPIH-(4.0-6.0)FSRE
Drain piping
3 PMML0529 rev.1 - 02/2021
No.
1 Fan casing
2 Fan
3 Fan motor
4 Heat exchanger
5 Header
6 Expansion valve
7 Air filter
8 Refrigerant gas pipe connection
9 Refrigerant liquid pipe connection
10 Electrical control box
11 Air inlet
12 Air outlet
13 Drain pump
14 Drain pipe connection
Dimension (mm)
a b
1474 340
Air outlet (mm)
a' b'
1249 271
Part name
c d
600 1564
Air inlet (mm)
a' b'
1386 276
