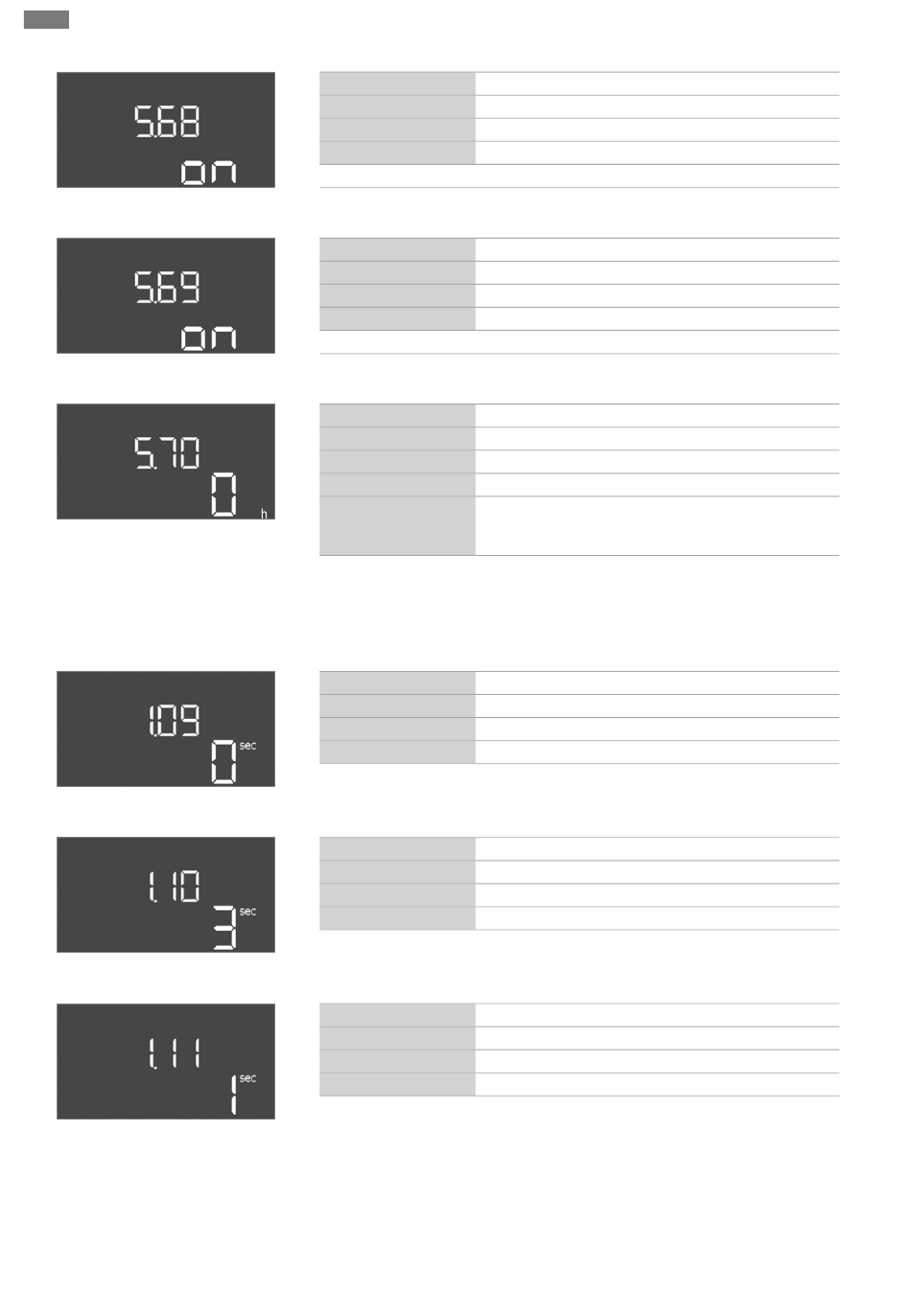

Fig. 53: Menu 5.68
Fig. 54: Menu 5.69
Fig. 55: Menu 5.70
Fig. 56: Menu 1.09
Fig. 57: Menu 1.10
Fig. 58: Menu 1.11
84
All manuals and user guides at all-guides.com
Commissioning
Menu no.
Description
Value range
Factory setting
NOTICE! Switch off during alternating current connection!
Menu no.
Description
Value range
Factory setting
NOTICE! Switch off during alternating current connection!
Menu no.
Description
Value range
Factory setting
Explanation
Menu 1: Values for switching on and off
*NOTICE! The menu items 1.12 to 1.17 are only visible if, in menu 5.07, the value
"Level" or "Bell" have been set.
**NOTICE! The actual value range is dependent on the setting in menu 5.09.
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
5.68
Mains connection rotating field monitoring On/Off
on, off
on
5.69
Motor current monitoring On/Off
on, off
on
5.70
Max. switching frequency per hour, per pump
0 ... 60
0
If the max. number of starts has been exceeded, the col-
lective fault signal (SSM) is activated. Value "0" = function
deactivated.
1.09
Base-load pump switch-off delay
0 ... 60 s
0 s
1.10
Activation delay, peak-load pump
0 ... 30 s
3 s
1.11
Switch-off delay peak-load pump
0 ... 30 s
1 s
